5G/4G/LTE Cellular MIMO 617MHz - 6000MHz 3-5dBi Omnidirectional Antenna with 2 x N-Female Connectors
5G/4G/LTE Cellular MIMO 617MHz - 6000MHz 3-5dBi Omnidirectional Antenna with 2 x N-Female Connectors
- MPN: ANT-290
- Part #: NETGEN0290
- UPC:
- MPN: ANT-290
- Part #: NETGEN0290
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





5G/4G/LTE Cellular MIMO 617MHz - 6000MHz 3-5dBi Omnidirectional Antenna with 2 x N-Female Connectors
- MPN: ANT-290
- Part #: NETGEN0290

Product URL: https://www.pbtech.co.nz/product/NETGEN0290/5G4GLTE-Cellular-MIMO-617MHz---6000MHz-3-5dBi-Omni
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

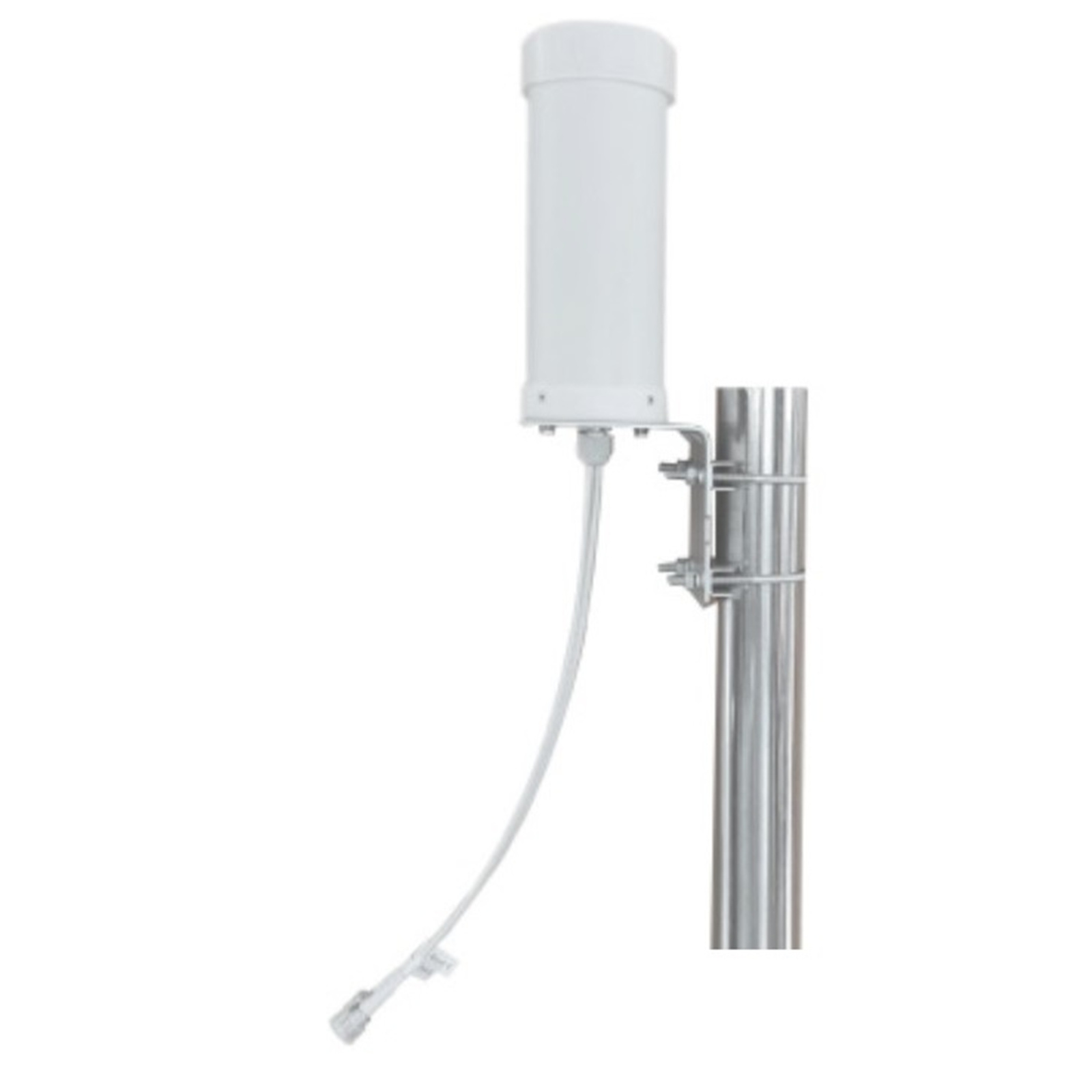

5G/4G/LTE Cellular MIMO Dual Pol Vertical Omnidirectional Antenna, 617-960/1710-2700/3300-4000/4900-6000 MHz, 3-5dBi, 2 x N-Female, with Right Angle Bracket, Pigtail-35cm Cable
Suitable for LTE/4G/5G Cellular Applications.
Specifications
Manufacturer's Product Code
ANT-290
Frequency range (MHz)
617-960; 1710-2700; 3300-4000; 4900-6000
Polarization
2 x Vertical
Maximum Gain (dBi)
3-5dBi
Horizontal beam width
360 deg
Typical Vertical beam width
28 - 85 deg
Impedance
50 Ohm
VSWR
2.5
Maximum power (W)
50 Watts
Connectors
2 x N Female
Cable Length (cm)
35cm
Antenna size (mm)
82 x 200mm
Packing size (mm)
330 x 105 x 90
Weight (kg)
0.8 (Include bracket)
Radome material
UPVC
Radome colour
White
Operating humidity
5 - 95 %
Operating temperature (?)
-40 - 60
Application
Outdoor
Rated wind velocity (m/s)
40
Suitable pole diameter (mm)
25 - 50 mm
Mounting kit
L Clamp
