Grandstream GSC3506V2 Grandstream GSC3506V2 One way SIP/Multicast Intercom Speaker/ No Mic 30WattSpeaker
Grandstream GSC3506V2 Grandstream GSC3506V2 One way SIP/Multicast Intercom Speaker/ No Mic 30WattSpeaker
- Brand: Grandstream
- MPN: GSC3506V2
- Part #: NETGSM26123
- UPC:
- Brand: Grandstream
- MPN: GSC3506V2
- Part #: NETGSM26123
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Grandstream GSC3506V2 Grandstream GSC3506V2 One way SIP/Multicast Intercom Speaker/ No Mic 30WattSpeaker
- Brand: Grandstream
- MPN: GSC3506V2
- Part #: NETGSM26123

Product URL: https://www.pbtech.co.nz/product/NETGSM26123/Grandstream-GSC3506V2-Grandstream-GSC3506V2-One-wa
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Grandstream GSC3506 V2 is a multicast paging speaker that provides a powerful paging and public address solution to expand security and communication throughout offices, schools, hospitals, apartments, and more. This high-performance SIP speaker offers crystal clear HD audio thanks to a high-fidelity 30-watt HD speaker. The GSC3506 V2 supports SIP and multicast paging, group paging, push-to-talk (PTT), and offers built-in blocklists and allowlists to easily block unwanted calls. Thanks to a sleek design, powerful HD speaker, flexible integrations, and advanced features, the GSC3506 V2 allows users to create a state-of-the-art security and paging solution for any setting.
- 30W high-fidelity speaker with HD acoustic chamber
- Supports SIP paging, multicast paging, call waiting with priority override, and more
- Supports full-band and wide-band audio codecs, including Opus and G.722
- 1x 3-pin differential line out port
- Ports include 1x 2-pin switch-in input, 1x alarm-in input, 1x DC24V, 1x network, and 1x USB port; Keys include volume up/down, and reset
- One 10/100Mbps network port with PoE/PoE+/PoE++
Specifications
Brand
Grandstream
Manufacturer Part Number
GSC3506V2
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR,HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, SIMPLE, LDAP,TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
Network Interfaces
1x 10/100 Mbps port with integrated PoE/PoE+/PoE++
Auxiliary Ports

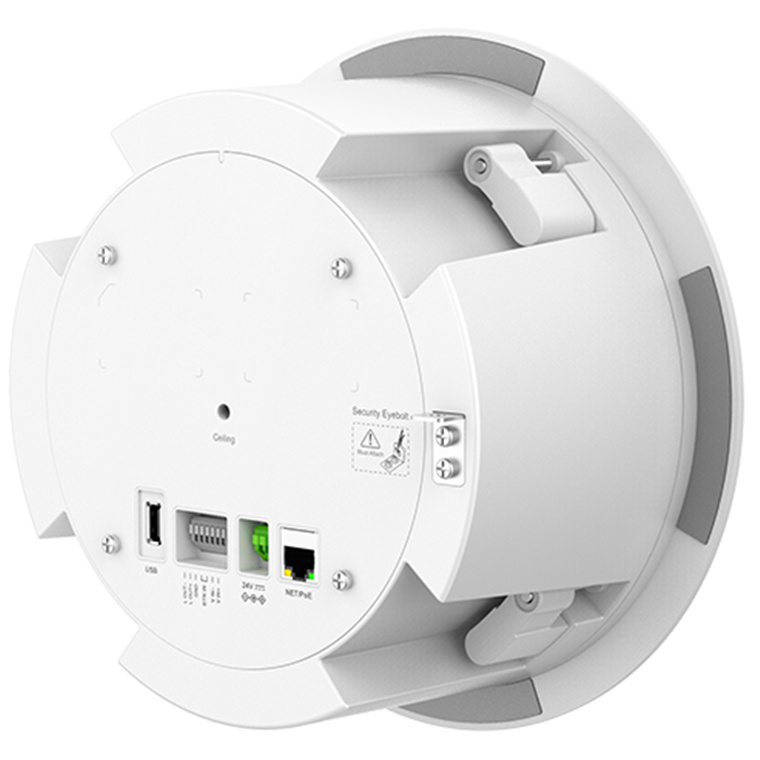

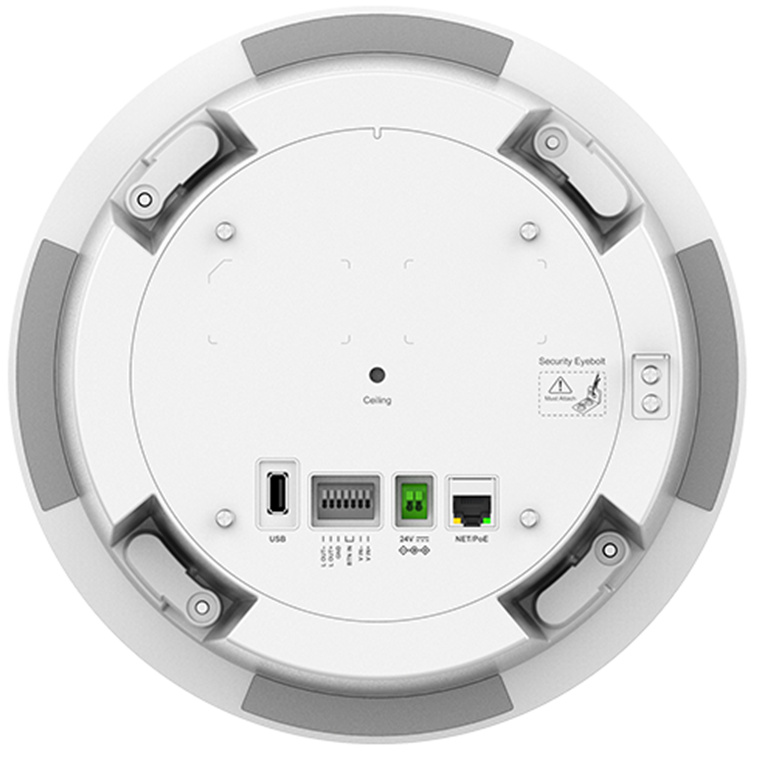

1x 2-pin switch-in input port, 1x 2-pin alarm-in input port, 1x differential line out port, 1x network port, 1x DC24V port, volume up and down key (+/-), reset USB Port USB 2.0, supports external USB storage devices
Voice Codecs and Capabilities
G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS
Telephony Features
SIP paging, Multicast paging, Group paging, Push-to-talk (PTT), Call-waiting with priority override
HD Audio
HD speaker with support for full-band audio
Speaker

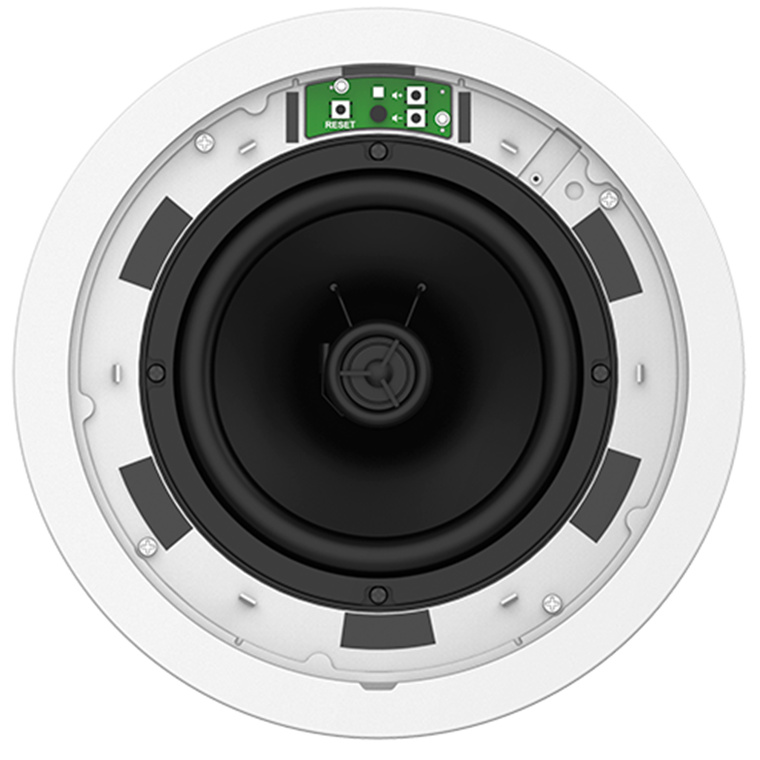

30W high-fidelity HD speaker (coaxial)
Frequency: 110Hz-20000 Hz
Sensitivity: Up to 95 dBA at 1W power at 1 meter
Maximum Sound Pressure Level (SPL): 99dB
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Memory
256MB RAM
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, secure boot
Multi-language
English, German, French, Spanish, Portuguese, Russian, and Chinese
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
2-pin DC input: 24VDC / 2.5A
Integrated PoE 802.3af Class 3, PoE+ 802.3at Class 4, PoE++ 802.3bt Class 6
Temperature and Humidity
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Dimensions
257.5mm (diameter) x 118mm (depth)
Weight
2.14kg
Compliance
FCC: FCC 47 CFR Part 15 Subpart B
IC: ICES-003
CE: EN 55032:EN 55035; EN IEC 61000-3-2: EN 61000-3-3; EN IEC 62368-1.
UKCA: BS EN 55032;BS EN 55035;BS EN IEC 61000-3-2;BS EN 61000-3-3;BS EN IEC
62368-1
RCM: AS/NZS CISPR 32:AS/NZS 62368.1
