Grandstream GWN7711 8-Port Gigabit L2 Managed Switch - 1GbE x8
Grandstream GWN7711 8-Port Gigabit L2 Managed Switch - 1GbE x8
- Brand: Grandstream
- MPN: GWN7711
- Part #: NETGSM485556
- UPC:
Select your store to check availability
- Brand: Grandstream
- MPN: GWN7711
- Part #: NETGSM485556
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Grandstream GWN7711 8-Port Gigabit L2 Managed Switch - 1GbE x8
- Brand: Grandstream
- MPN: GWN7711
- Part #: NETGSM485556

Product URL: https://www.pbtech.co.nz/product/NETGSM485556/Grandstream-GWN7711-8-Port-Gigabit-L2-Managed-Swit
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 1 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

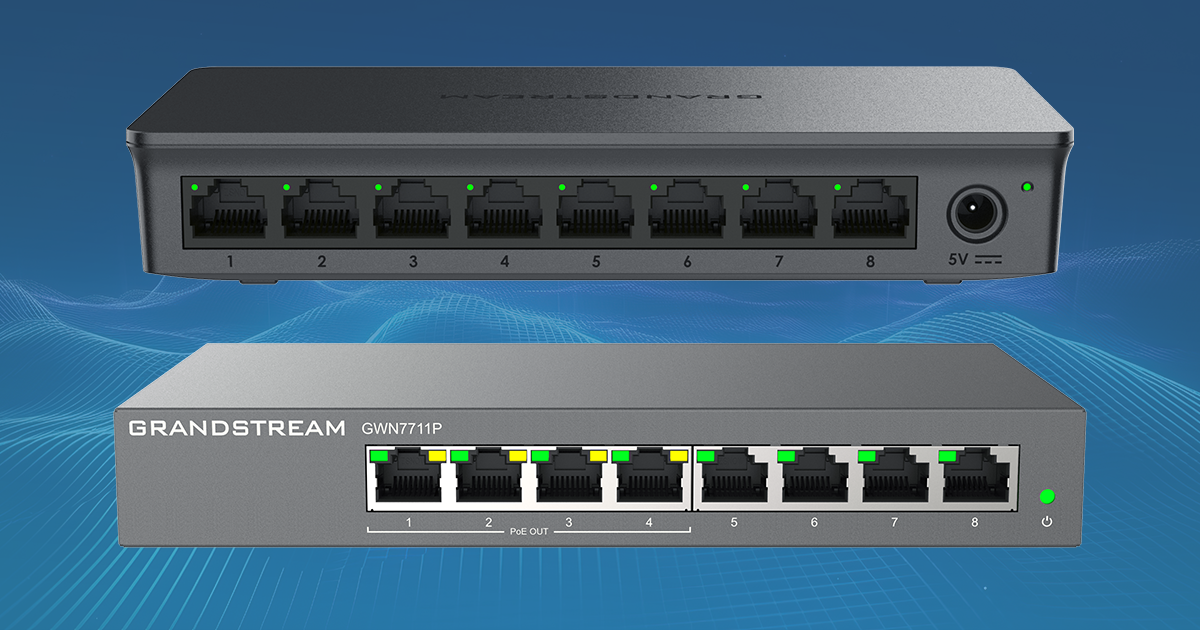

Grandstream GWN7711 Layer 2 Lite Managed Switch 8-port PoE Hardware
The GWN7711(P) series are Layer 2 Lite managed network switches designed to help small-to-medium businesses build scalable, secure, and smart business networks that are easy to deploy and manage through the cloud. These switches support VLAN for flexible and advanced traffic segmentation, QoS for network traffic prioritization, IGMP Snooping to optimize network performance, and robust security features to defend against potential attacks.
The GWN7711P model specifically offers 4 PoE ports with smart dynamic PoE output to power devices like IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. It also supports 24V DC passive PoE-out mode, offering even more flexibility for powering network devices. Both models are designed for easy management through a local web user interface or via Grandstream Device Management System (GDMS) for cloud-based control.
With support for desktop and wall-mount installations, the GWN7711(P) series are a perfect fit for hotels, home offices, small-to-medium businesses, and more. Thanks to their comprehensive suite of switching features, flexible PoE options, and easy cloud management, the GWN7711(P) series deliver reliable performance for small-to-medium sized deployments.
- 8 Gigabit Ethernet ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
- Whisper Quiet: fan-less
- Convenient and intelligent management through the Web UI and the cloud (GDMS)
- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
- Built-in QoS allows for prioritization of network traffic
Specifications
Brand
Grandstream
Manufacturer Part Number
GWN7711
Network Protocol
IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Gigabit Ethernet Ports
8
PoE Out Ports
/
Power Supply
External 5VDC/0.6A
PoE Output
/
Max Total PoE Output Power
/
Maximum Output Power per PoE Port
/
Auxiliary Ports
1x Reset Pinhole
Forwarding Mode
Store-and-forward
Total non-blocking throughput
8Gbps
Switching Capability
16Gbps
Jumbo Frame
2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode
11.9Mpps
Packet Buffer
4Mb
MAC
8K MAC address capacity
Support MAC address search
VLAN
4K VLANs
Port-based VLAN, 802.1Q VLAN
LAG
4
Multicast
IGMP Snooping, Report Message Suppression
QoS
Auto prioritization of the incoming port of the packet
Priority Mapping
Queue scheduling, including SP, WRR, WFQ
Supports port priority, 802.1p priority and DSCP priority
Bandwidth control
Storm control
Rate limit
DHCP
DHCP client
Maintenance
Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port
mirroring, cable test and loop prevention, ping and pong watchdog
Security
Storm control
Port VLAN isolation
Filtering MAC adress
Kensington Security Slot (Kensington Lock) support
Mounting
Desktop/Wall-mount
LED Indicators
Per Port: Link/Activity - Green
GWN7711P Port 1-4: PoE power state - Yellow
Per Device: Power - Green
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Operating Humidity: 10% to 90% Non-condensing
Storage Humidity: 10% to 90% Non-condensing
Compliance
FCC, CE, RCM, IC
Enclosure
Plastic
Dimensions (LxWxH)
164 x 80 x 30 mm
Weight
0.17 kg
