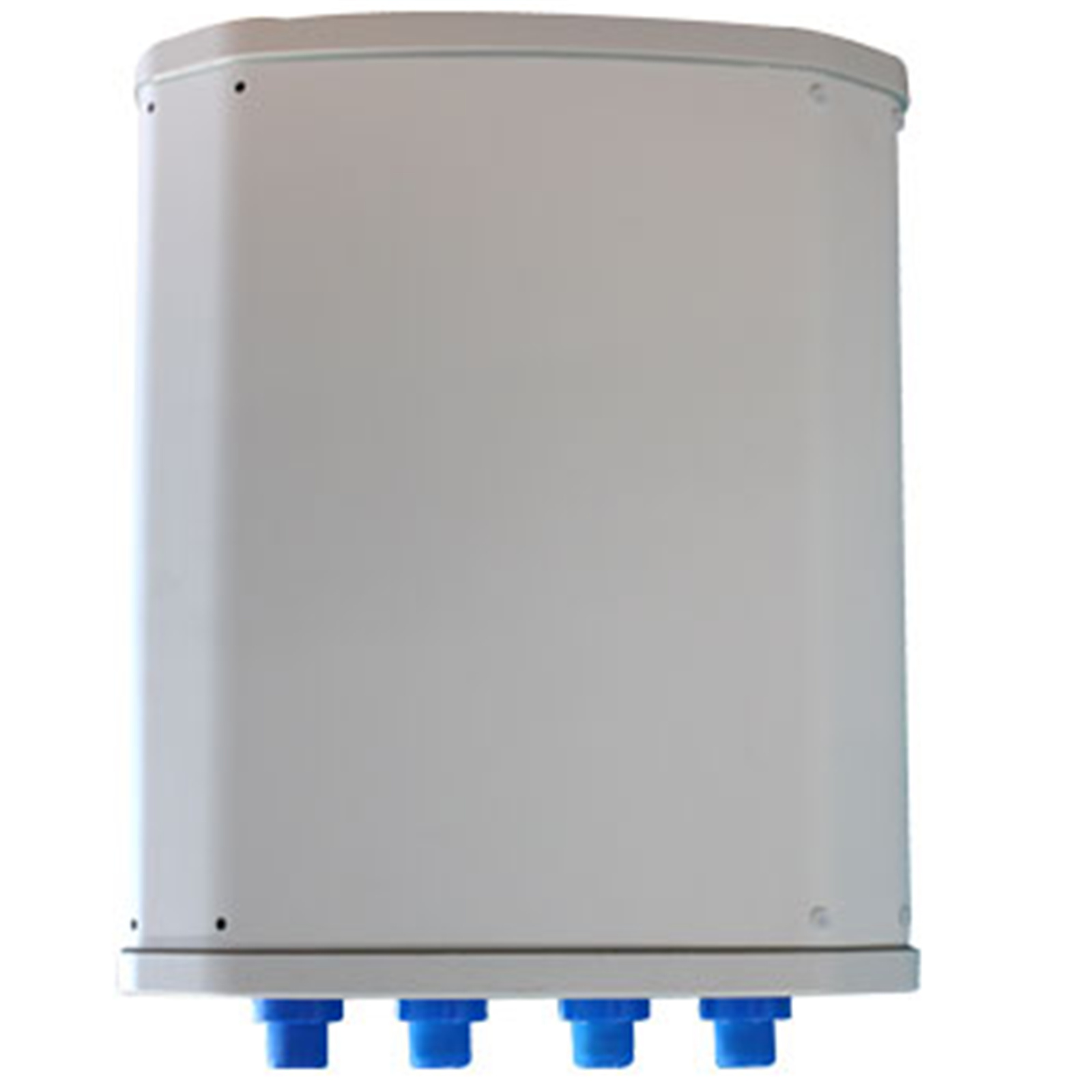

Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016
- UPC:
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016

Product URL: https://www.pbtech.co.nz/product/NETGWL1016/Go-Wireless-ANT-253-65dBi-Dual-Polarity-Tri-Band-3
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The ANT-253 is a 4 Port Tri-Band GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz. This antenna is the ideal solution for all of your cellular needs.
- Broadband Directional Antenna with Low VSWR
- Seal with Radome, Strong Protection against the elements
- Supplied with stainless steel mast down-tilt bracket
- Perfect for RBI (Rural Broadband Initiative) Installations
- Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications
Specifications
Manufacturer Part Number
ANT-253
Frequency range
Port 1&2 - 698-960, 1710-2700 MHz; Port 3&4 - 3300-3800, 3300-3800 MHz
Polarization
±45 Deg
Gain
6.5dBi
Half-power beam width
60 Deg
Front-to-back ratio
23dB
Cross-polar discrimination
17dB
Isolation
23dB
Impedance
50 Ohm
VSWR
<=1.5
Intermodulation IM3
2×43dBm carrier <=-150dBc
Maximum power
200W
Lighting protection
DC Ground
Connectors
4×7-16 DIN Female
Dimensions (H x W x D)
465×385×138 mm
