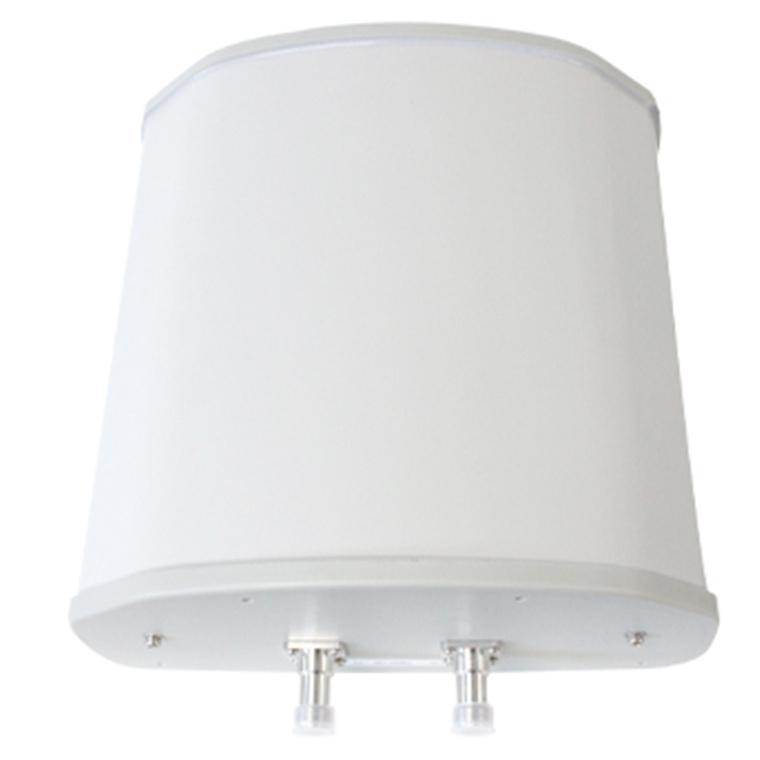

Go Wireless ANT-284 850 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna with Heavy duty Galvanisedpole mount
Go Wireless ANT-284 850 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna with Heavy duty Galvanisedpole mount
- Brand: Go Wireless
- MPN: ANT-284
- Part #: NETGWL1026
- UPC:
- Brand: Go Wireless
- MPN: ANT-284
- Part #: NETGWL1026
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Go Wireless ANT-284 850 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna with Heavy duty Galvanisedpole mount
- Brand: Go Wireless
- MPN: ANT-284
- Part #: NETGWL1026

Product URL: https://www.pbtech.co.nz/product/NETGWL1026/Go-Wireless-ANT-284-850-940MHz-85-dBi-65-Deg-Dual
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
850MHz to 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna for ISM, GSM, LoRaWAN IoT, SigFox and 900MHz Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features two integral N-Female bulkhead type connectors. Also included with this Sector Antenna is a mast mounting kit, consisting of a heavy-duty galvanised steel pole mount bracket, this kit allows installation on masts up to 80 mm in diameter.
- Suitable for LoRaWAN and Sigfox 865MHz, 868MHz and 915MHz, 923MHz IoT applications
- Sealed Fiberglass Radome, Strong Protection against the elements
- All Weather Operation
- Heavy duty galvanised pole mount
- Supports EU868, AU915, AS923
- Great for Wi-Fi HaLow 802.11ah
Specifications
Manufacturer Part Number
ANT-284
Frequency range
850-940 MHz
Polarization
±45deg
Gain (dBi)
8.5
Electrical Downtilt
0deg
Horizontal BW
65 deg
Vertical
BW
Front-to-back ratio
>=25 dB
Isolation
>=28 dB
Impedance
50 Ohm
VSWR
<=1.5
Intermodulation IM3 (2×33dBm carrier)
<=-150 dBc
Maximum power
300 W
Lighting protection
DC Grounding
Connector
2 x N-Female
Connector position
Bottom
Height/width/depth (mm)
270x270x137
Packing size (mm)
390x220x370
Antenna Weight
2.8 Kg
Radome material
UPVC
Radome colour
Gray
Mechanical tilt
-16 to +16 deg
Operating temperature
-40°C - 60°C
Rated wind velocity (m/s)
60
Suitable pole diameter
50-85 mm
Mounting kit
Heavy Duty Galvanised pole mount
