Features

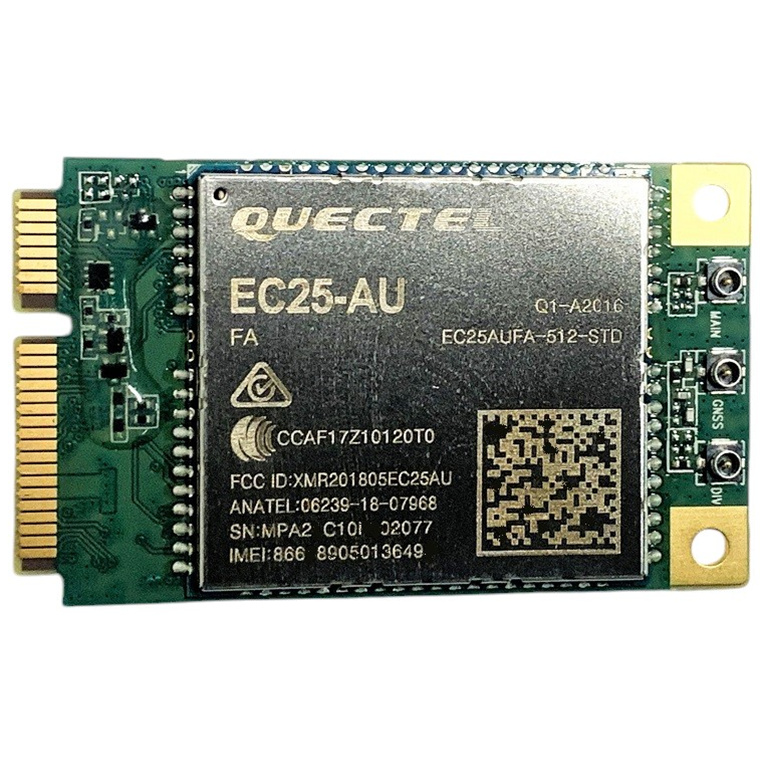

Quectel EC25-AU 4G LTE Cat 4 mini PCIe Module with B28. The EC25-AU is an LTE category 4 module in an LCC form factor measuring 32.0mm × 29.0mm × 2.4mm. The EC25-AU delivers maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. It is also backward-compatible with existing 2G networks, ensuring that it can be connected even in remote areas devoid of 3G or 4G network coverage. The EC25-AU is optimized for networks in Australia, New Zealand, Brazil, and Taiwan.
The EC25-AU supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multiconstellation GNSS receiver greatly simplifies product design, and provides quicker, more accurate and dependable positioning.
A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.
- LTE category 4 module
- Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
- Max. 150Mbps downlink / 50Mbps uplink under LTE
- LCC form factor
- Extended temperature range of -40°C to +85°C
- Supports DFOTA, DTMF, MIMO and QuecLocator
- Compatible with MikroTIk RouterBoard (LTE interface supported)
Specifications
Region/Operator
Latin America/Australia/New Zealand
Dimensions (mm)
32.0 × 29.0 × 2.4
Operating Temperature
-35°C to +75°C
Extended Temperature
-40°C to +85°C
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD
B40
WCDMA
B1/B2/B5/B8
GSM/EDGE
B2/B3/B5/B8
GNSS
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
Regulatory
Global: GCF, America: FCC, Taiwan (China): NCC, Brazil: Anatel, Australia/New Zealand: RCM, Others RoHS/WHQL
LTE-FDD Data Rates (Mbps)
150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)
130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)
42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)
384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)
296 (DL)/ 236.8 (UL)
GPRS Data Rates (kbps)
107(DL)/ 85.6 (UL)
(U)SIM
x 1
UART
x 2
USB 2.0
x 1
Audio Digital (PCM)
x 1
I2C
x 1
SDIO
x 2
SGMII
x 1
ADC
x 2
Speech Codec Modes
HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic
Echo Cancellation/Noise Suppression
VoLTE
Digital Audio and VoLTE (Voice over LTE) (Optional)
USB Serial Driver
"Windows 7/8/8.1/10, Linux 2.6-5.4,
Android
4.x-9.x"
GNSS Driver
Android 4.x-9.x
RIL Driver
Android 4.x-10.x
NDIS
Windows 7/8/8.1/10
MBIM
Windows 8/8.1/10, Linux 3.18-5.4
GobiNet Driver
Linux 2.6-5.4
QMI_WWAN Driver
Linux 3.4-5.4
Supply Voltage Range
3.3-4.3V, 3.8 V Typ.
Power Consumption
11 µA @ Power off, 1.3 mA @ Sleep, Typ., 22 mA @ Idle
