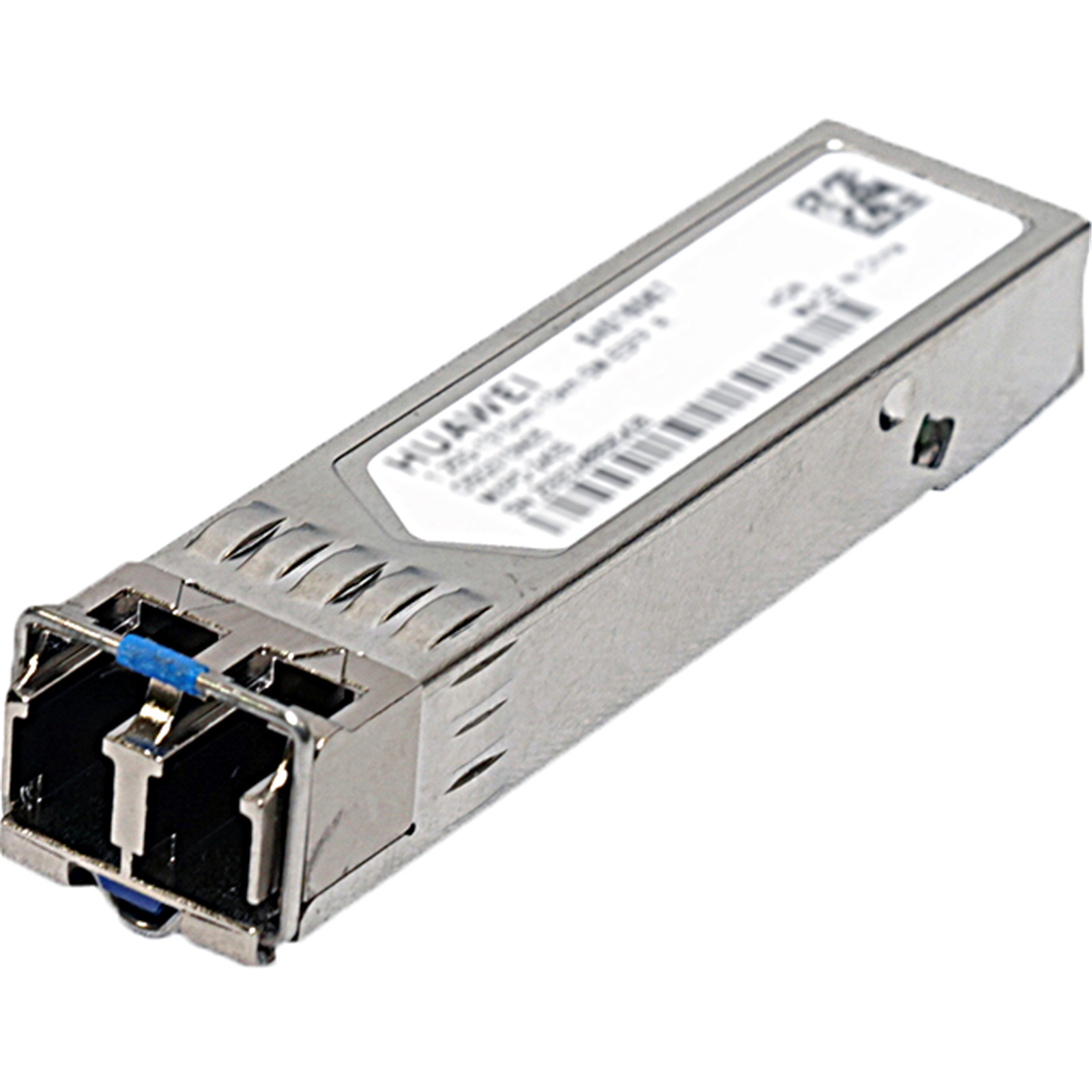

Huawei eSFP-GE-SX-MM850 1Gbps eSFP to LC 850nm Multi-mode Transceiver, Up to 550m
Huawei eSFP-GE-SX-MM850 1Gbps eSFP to LC 850nm Multi-mode Transceiver, Up to 550m
- Brand: Huawei
- MPN: 02315204
- Part #: NETHUA02315204
- UPC:
- Brand: Huawei
- MPN: 02315204
- Part #: NETHUA02315204
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers





Huawei eSFP-GE-SX-MM850 1Gbps eSFP to LC 850nm Multi-mode Transceiver, Up to 550m
- Brand: Huawei
- MPN: 02315204
- Part #: NETHUA02315204

Product URL: https://www.pbtech.co.nz/product/NETHUA02315204/Huawei-eSFP-GE-SX-MM850-1Gbps-eSFP-to-LC-850nm-Mul
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Specifications
Level-1 category
GE eSFP Optical Modules
Module name
eSFP-GE-SX-MM850
Connector type
LC
Optical fiber type
MMF
Form factor
SFP
Transmission rate [bit/s]
1G
Target transmission distance [km]
Multimode optical fiber (diameter: 62.5 µm): 220 m Multi-mode (OM1) optical fiber (diameter: 62.5 µm): 275 m Multimode optical fiber (diameter: 50 µm): 500 m Multimode (OM2) optical fiber (diameter: 50 µm): 550 m
Application standard/Type
1000BASE-SX
Working case temperature [°C(°F)]
-20°C to +85°C (-4°F to +185°F)
Type of the end face of the fiber ceramic ferrule
PC or UPC
DDM options
Supported
Modal bandwidth [MHz*km]
Multimode optical fiber: 160 MHz*km Multi-mode (OM1) optical fiber: 200 MHz*km Multimode optical fiber: 400 MHz*km Multi-mode (OM2) optical fiber: 500 MHz*km
Center wavelength [nm]
850
Overload power (AVG) [dbm]
0
Minimum Tx optical power (AVG) [dbm]
-9.5
Maximum Tx optical power (AVG) [dbm]
-2.5
Minimum extinction ratio [db]
9
Rx sensitivity (OMA) [dbm]
-17
