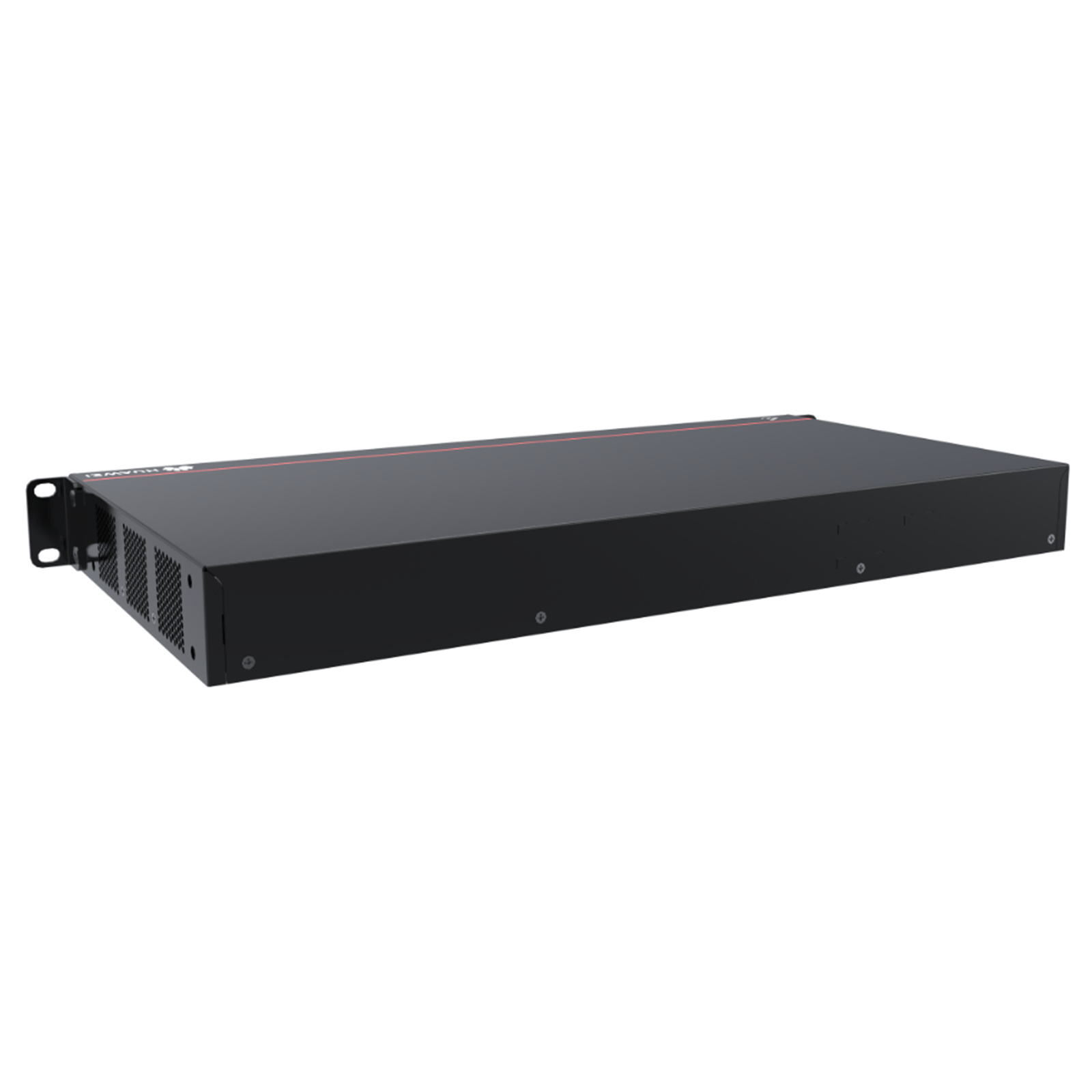

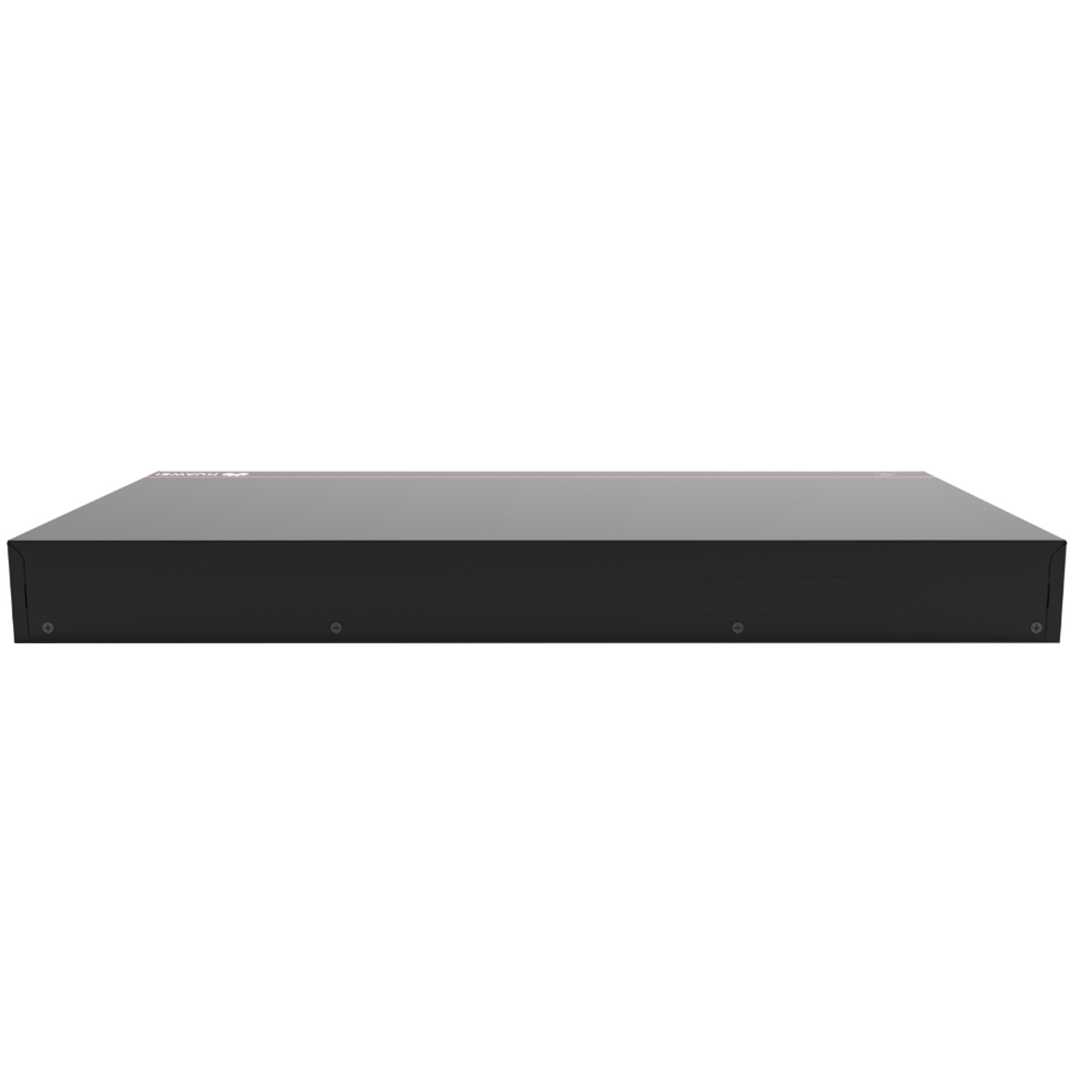

Huawei eKit AR720 Layer 3 Access Router
8x 1Gbe LAN - 2x Combo-WAN (1GbE + 2x SFP) - 2x USB - 1U Rackmount
Huawei eKit AR720 Layer 3 Access Router
8x 1Gbe LAN - 2x Combo-WAN (1GbE + 2x SFP) - 2x USB - 1U Rackmount
- Brand: Huawei
- MPN: 02354GBG-001
- Part #: NETHUA02354
- UPC:
- Brand: Huawei
- MPN: 02354GBG-001
- Part #: NETHUA02354
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular VPN Routers





Huawei eKit AR720 Layer 3 Access Router 8x 1Gbe LAN - 2x Combo-WAN (1GbE + 2x SFP) - 2x USB - 1U Rackmount
- Brand: Huawei
- MPN: 02354GBG-001
- Part #: NETHUA02354

Product URL: https://www.pbtech.co.nz/product/NETHUA02354/Huawei-eKit-AR720-Layer-3-Access-Router-8x-1Gbe-LA
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Forwarding performance: 9 Mpps to 25 Mpps | Number of connected terminals: 700 | Fixed WAN ports: 2 x GE combo ports | Fixed LAN ports: 8 x GE ports (can be switched to WAN ports) | Dimensions (H x W x D): 43.6 mm x 442 mm x 220 mm
High performance
- ARM-based multi-core processors and nonblocking switching architecture
- Twice the industry average performance, ensuring a low latency for key services
High reliability
- Link backup for enterprise services, enhancing service access reliability
- Fault detection and determination in milliseconds, minimizing the service
Service convergence
- Integration of functions such as routing, switching, VPN, security, and WLAN, enabling diversified enterprise services, saving space,
and reducing TCO
Security
- Built-in firewall, IPS, URL filtering, and multiple VPN technologies, providing comprehensive security protection capabilities
Specifications
Forwarding performance
9 Mpps to 25 Mpps
Number of connected terminals
700
Installation type
Rack,Work bench,Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) - Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Chassis height [U]
1
Dimensions with packaging (H x W x D) [mm(in.)]
90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging [kg(lb)]
4.6 (10.12)
Weight without packaging [kg(lb)]
3.2 (7.04)
RTC
Supported
Typical power consumption [W]
28
Maximum power consumption [W]
33
Power supply mode
AC built-in
Number of power modules
1
Input voltage range [V]
90 V to 264 V, 47 Hz to 63 Hz
Maximum output power [W]
70
Safety regulation certification
IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 GB 4943.1
Types of fans
Built-in
Number of fan modules
1
Long-term operating temperature [°C(°F)]
0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
LAN ports
8 x GE electrical interfaces
WAN ports
2 x GE combo
Airflow
Left-to-right airflow
