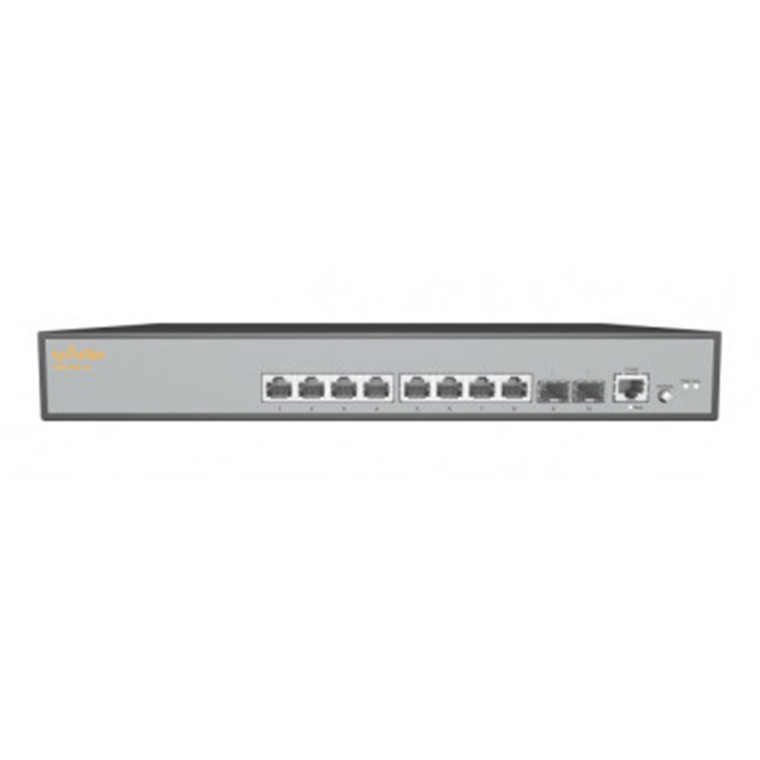

IGNITENET FNS-POE-10-AU Fusion Switch 10P 8 Port 10/100/1000Mbps L2 Managed PoE switch with 2 1G SFPUplink Ports

PB Tech price
PB Tech price
$ 293 .04
 +GST
$ 337 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

IGNITENET FNS-POE-10-AU Fusion Switch 10P 8 Port 10/100/1000Mbps L2 Managed PoE switch with 2 1G SFPUplink Ports

  • Brand: IGNITENET
  • MPN: FNS-POE-10-AU
  • Part #: NETINN1001
  • UPC:
PB Tech price
$ 293 .04 $ 337 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: IGNITENET
  • MPN: FNS-POE-10-AU
  • Part #: NETINN1001
  • UPC:

Features

IgniteNet's Fusion Switch 10P 8-Port 10/100/1000Mbps L2 Managed PoE switch with 2 1G SFP Uplink Ports. The IgniteNet FusionSwitch™ FNS-PoE-10 is a cost-effective L2 managed switch with eight Gigabit PoE ports and two 1G uplink ports. The FNS-PoE-10 is a full-PoE fanless design, it supports PoE on up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users for IP cameras, IP telephones, or access points. With powerful software and hardware features, the FNSPoE-10 is designed for SMB and enterprise markets and provides plenty of management options, including a console port.

Key Features

- Performance and Scalability
- Continuous Availability with IEEE 802.1w Rapid Spanning Tree Protocol
- Multiple Management Options
- Comprehensive QoS
- Enhanced Security
- Smart Network Deployment with Automatic Voice and Video VLAN support

Specifications

Manufacturer's Code

FNS-POE-10-AU

Product code

FNS-POE-10

10/100/1000 RJ-45 PoE Ports

8

SFP Gigabit Uplink Ports

2

PoE Ports

8

RJ-45 Console Port

1

Switching Capacity

20 Gbps

Forwarding Rate

14.9 Mpps

Flash Memory

32 MB

DRAM

256 MB

Packet Buffer

4.1 Mbit

MAC Address Table Size

8 K

Jumbo Frames

10 KB

MTBF

865,820 hrs

Heat Dissipation

545,933 Btu/H

Acoustic Noise

0 dB (A)

Surge Protection

Ethernet: ± 2 KV, Power: ± 2 KV (line-earth), ± 1 KV (line-line)

Rack Space

13"

Form Factor

Rackmount

Dimension

(W x D x H) 33 x 20.4 x 4.26 cm (12.9 x 8 x 1.67 in)

Weight

2.4 kg (5.34 lb)

PoE

IEEE 802.3af/802.3at

PoE Power Budget

0°C - 40°C / 125 W, 40°C - 45°C / 100 W

PoE Timer

Yes

Power Supply

100-240 VAC, 50-60 Hz

Max System Power Consumption (Watts)

160 W

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity (non-condensing)

10% to 90%

Storage Humidity (non-condensing)

10% to 90%

Altitude

3000 m

Environmental Regulation compliance: WEEE

Yes

Environmental Regulation compliance: RoHS

Yes

Manufacturer Part No:
FNS-POE-10-AU
Brand:
IGNITENET
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETINN1001
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
