L-com 2.4/5.8 GHz 10 dBi Dual Polarized Mini MIMO Antenna

PB Tech price
PB Tech price
$ 148 .70
 +GST
$ 171 .00
 inc GST
$148.70  +GST
$171.00

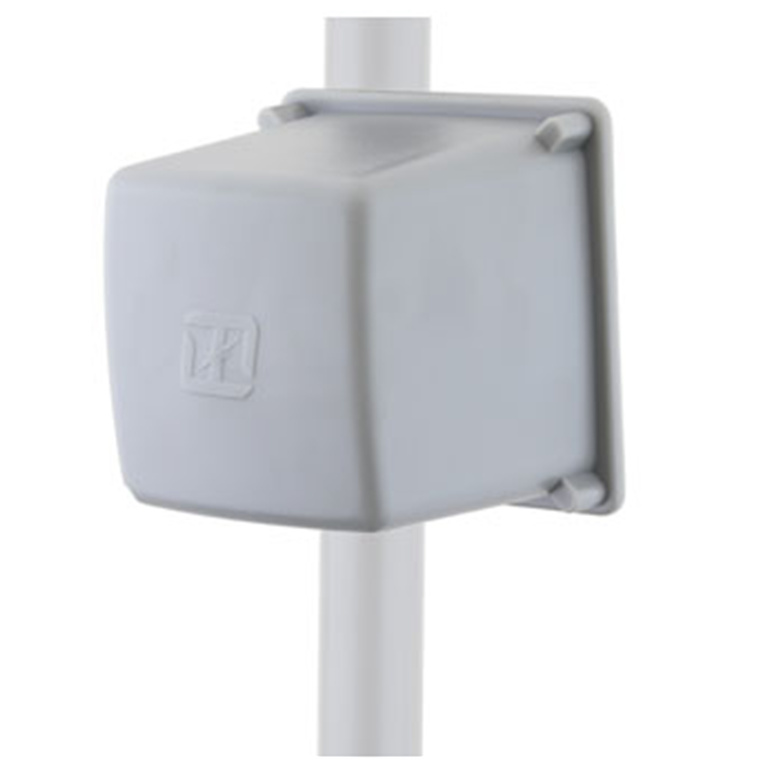

L-com 2.4/5.8 GHz 10 dBi Dual Polarized Mini MIMO Antenna

  • Brand: L-com
  • MPN: ANT-246
  • Part #: NETLCM0006
  • UPC:
PB Tech price
$ 148 .70 $ 171 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Nov When will I receive it?
$148.70  +GST
$171.00

Four payments of $43.18 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

The L-com 2.4/5.8GHz 10 dBi Dual Polarity MIMO Panel Antenna - N-Female Connectors is a very compact panel 2.4/5.8 GHz multiple-input and multiple-output (MIMO) patch antenna is designed to operate with many manufacturers' enterprise-class 802.11n MIMO access points (APs). It features two independent dual-band, vertically polarized antennas in a single housing, making it an ideal and aesthetically pleasing antenna to support demanding indoor or outdoor applications in next generation IEEE 802.11n and 802.11ac wireless communication systems.

The antenna is fed via two N-Female ports, one for vertically polarized and one for horizontally polarized signals. This feature makes this antenna ideal for polarization diversity systems.

Designed for all weather operation, the HG2458-10DP features drain holes in the radome to help prevent moisture build-up inside the antenna. The antenna is supplied with a 30 degree tilt and swivel mast mount kit. This allows the antenna to be positioned for optimal performance. It can be adjusted up or down from 0° to 30°. It can be mounted to a 1" (25.4 mm) to 1.7" (43.2 mm) dia. masts.

Features

- Compact size, 4 x 4 x 3.5 in.
- All weather operations
- Dual polarity feed system in single enclosure
- Durable UV-stable ABS radome
- MIMO - Multiple Input/Multiple Output

Application

- 2.4/5.8 GHz ISM Band
- 802.11n MIMO applications
- IEEE 802.11ac Wireless systems
- IEEE 802.11a/b/g/n Wireless LAN
- WiFi and public wireless hotspots

Specifications

Manufacturer's Product Code

HG2458-10DP

Frequency Range

2400-2500/4900-5850 MHz

Polarisation

Vertical and Horizontal

Vertical Beamwidth

57 deg @2.4 GHz/ 42 deg @ 4.9-5.8 GHz

Horizontal Beamwidth

90 deg @ 2.4 GHz/ 70 deg @ 4.9-5.8 GHz

Max Power

50W

Impedance

50 Ohm

Isolation

>28dB

VSWR

< 2.0 (V-Pol)/ < 2.3 (H-Pol

Front to Back Ratio

= 15dB

Lightning Protection

DC Ground

Connectors

(2) Integral N-Female

Mounting

1 to 1.7 Inch (25.4 to 43.2 mm) dia Masts

Vertical Tilt

0 to 30 deg

Radome

UV-Protected ABS

Dimensions

104 x 104 x 90mm

Antenna Weight

1.1 lbs (0.5 kg)

Mounting bracket weight

0.4 lbs (0.18 kg)

Operating Temperature

-40 deg C to 60 deg C

Rated Wind Velocity

210 km/h

Manufacturer Part No:
ANT-246
Brand:
L-com
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.2 kg
PB Part No:
NETLCM0006
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
