Features

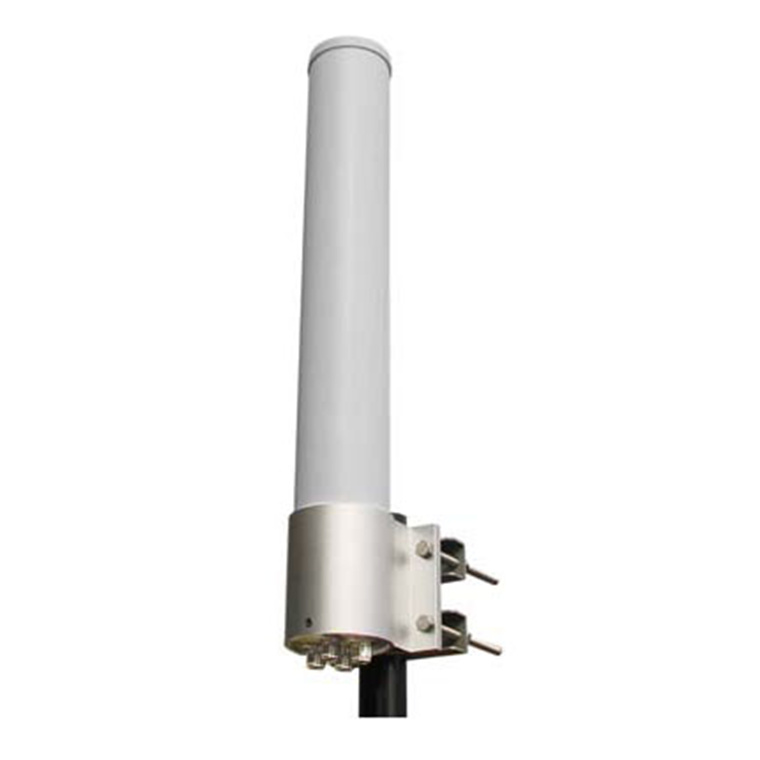

L-com 2.4/ 5 GHz 6 dBi Dual Band / Dual Polarized Omni Antenna.
L-com has developed the world's first 802.11ac 4x4 MIMO outdoor omni directional, dual polarized / dual frequency antenna line.
The HyperGain HG2458-06DPU is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz frequencies. This antenna is ideally suited for multi-point applications where long range and wide coverage is desired. The DPU series stands out from the competition since they are true 360 degree omni directional antennas which feature patent pending technology.
- True 360 degree omni directional antennas which feature patent pending technology
- Dual polarity/dual frequency feed system in single enclosure
- MIMO - Multiple-Input and Multiple-Output, separate inputs for 2.4 GHz and 5 GHz - four connectors total
- UV-Resistant radome for all-weather operation
- Heavy duty industrial grade design
- Supports 1x2, 2x2 and 4x4 MIMO AP/Routers
Dual Frequency / Dual Polarized
The HG2458-06DPU is actually four antennas in one, a 2.4 GHz dual polarized antenna and a 5 GHz dual polarized antenna together in a single radome. Each frequency features separate feeds for both horizontal and vertical polarities, four N-Female connectors total.
This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.
Rugged and Waterproof
The HG2458-06DPU construction features a heavy-duty UV resistant PVCs radome for durability and aesthetics. Designed to operate in the harshest of environments, the HG2458-06DPU far exceeds other omnidirectional antennas. The included mounting system features twin heavy-duty mounting clamps and bolts for superior strength.
Specifications
Manufacturer's Product Code
HG2458-06DPU
Frequency Range
2400 - 2500MHz, 5100 - 5800MHz
Gain
6dBi all polarisations
Vertical Beamwidth
24 to 30 degrees depending on polarisation
Horizontal Beamwidth
360 degrees
Impedance
50 Ohm
Max input power
100 Watts
VSWR
2.4GHz = 1.6, 5GHz =1.8
Pol Isolation
>28 dB
Lightning Protection
DC Ground (2.4GHz; 5GHz H Pol), DC Open (5GHz V Pol
Connectors
4 x N Female
Weight
2.4Kg
Dimensions
L 718mm x D 75mm
Radome Material
UV Resistant PVC
Mounting Mast size
40 to 90mm
Operating Temperature
-40 to +60 deg C
Max Wind Velocity
210 km/h
