Features

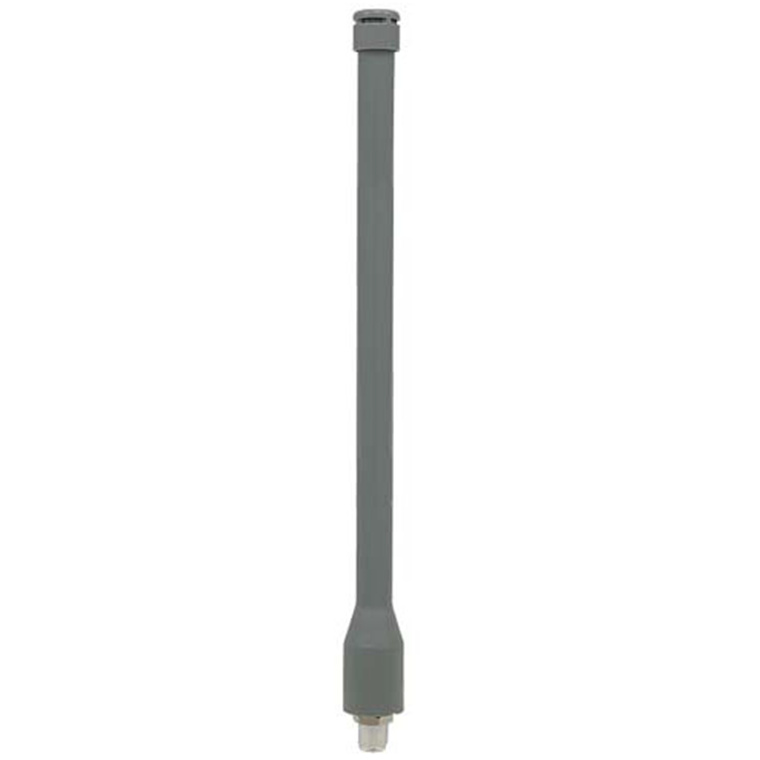

L-Com 2.4/5.8 GHz 5/6 dBi Dual Band Omni Antenna
The HyperLink brand HGV-2458-05U is an economical yet high performance dual band omnidirectional antenna designed for operation in the 2.4 GHz and 4.9/5.8 GHz frequency bands. Compact and lightweight, these antennas are ideally suited multipoint applications where wide coverage is desired.

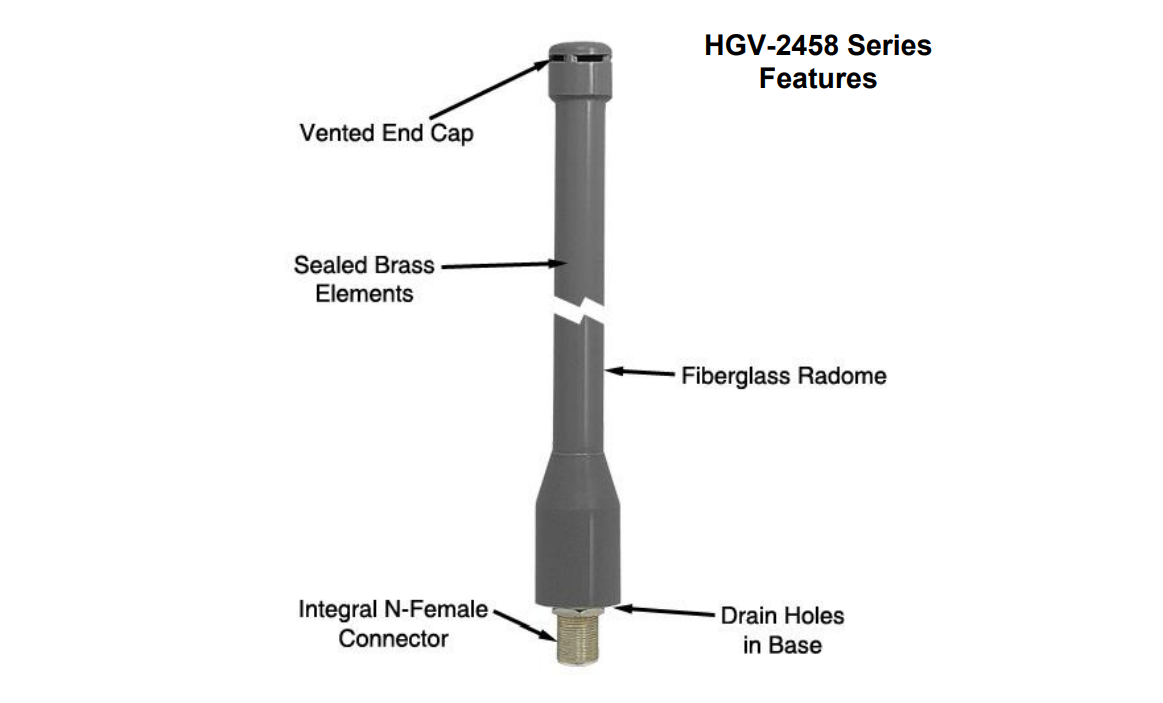

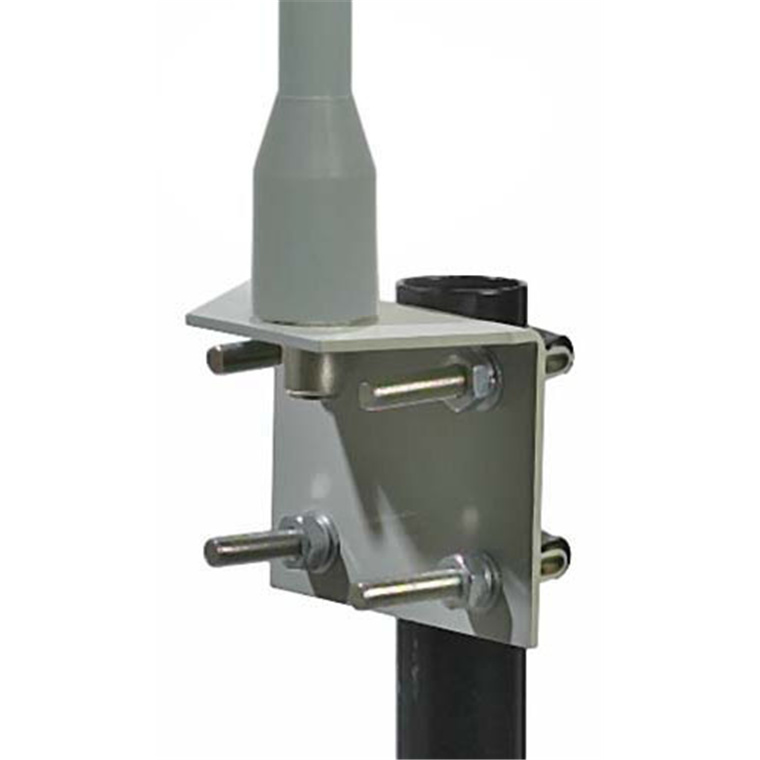

The HGV-2458-05U antennas feature an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included is a mast mounting kit which consists of a heavy-duty steel bracket and a pair of U-bolts. This kit allows for installations on masts up to 2.0" in diameter. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the antenna to be mounted in up or down positions.
- High Performance in a compact lightweight design
- Durable UV-Stable fiberglass radome with vented end cap and drain holes in base
- All weather operation
- Integral N-Female connector
- Includes mast mounting kit
Specifications
Manufacturer's Product Code
HGV-2458-05U
Frequency Range
2400 - 2500MHz, 4900 - 5850MHz
Gain
2.4GHz 5dBi, 5GHz 6dBi
Polarisation
Vertical
Vertical Beamwidth
45 degrees
Horizontal Beamwidth
360 degrees
Impedance
50 Ohm
Max input power
50 Watts
VSWR
<2.5:1 avg
Lightning Protection
DC Short
Connector
N Female
Weight
0.53Kg
Dimensions
L 295mm x D 32.2m
Radome Material
UV Resistant Fiberglass
Mounting Mast size
30 to 50mm
Operating Temperature
-40 to +85 deg C
