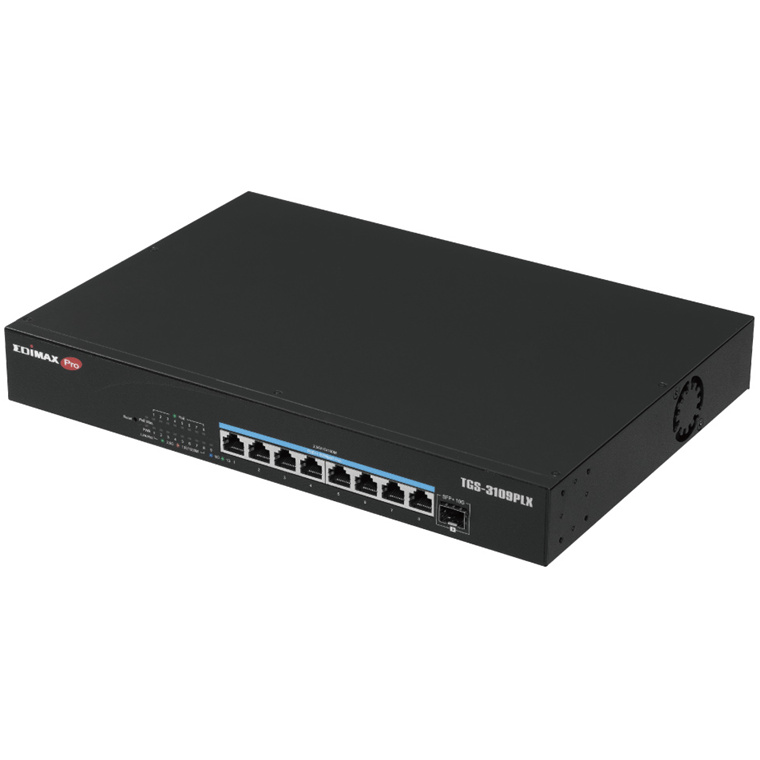

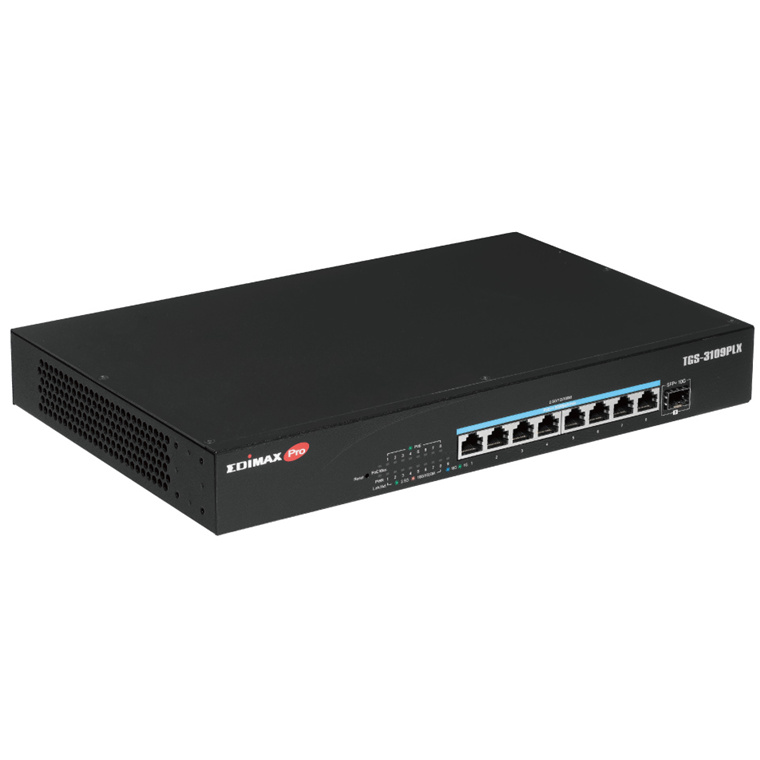

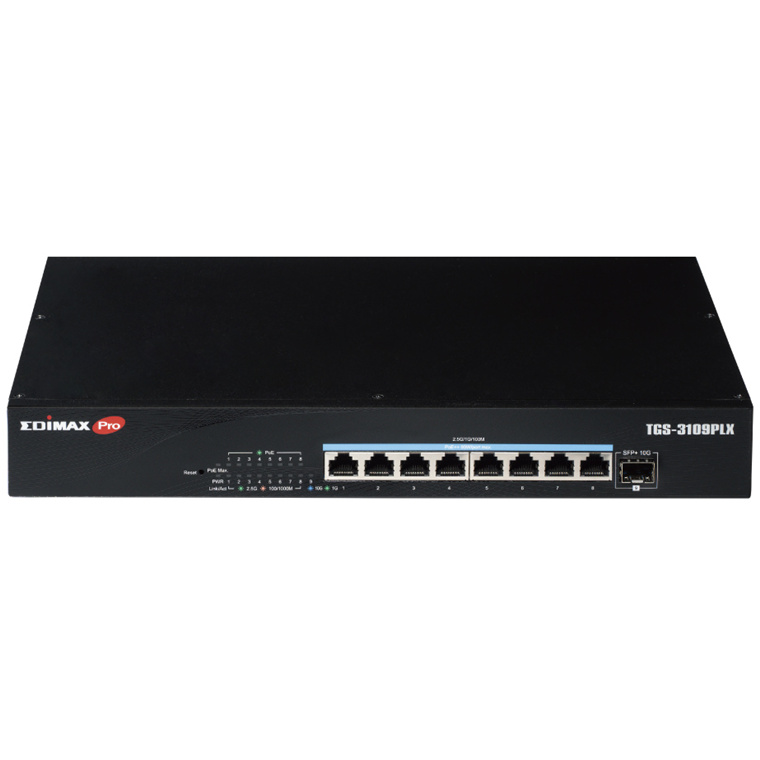

Edimax TGS-3109PLX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port

PB Tech price
PB Tech price
$ 391 .30
 +GST
$ 450 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Edimax TGS-3109PLX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port

  • Brand: Edimax
  • MPN: TGS-3109PLX
  • Part #: NETLEDM5358
  • UPC: 4717964705358
PB Tech price
$ 391 .30 $ 450 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Edimax
  • MPN: TGS-3109PLX
  • Part #: NETLEDM5358
  • UPC: 4717964705358

10 Gigabit

No

10 Gigabit Ports

N/A

Form Factor

1U Rackmount

Management Level

Smart / Web Managed

Number of Ports

8 Ports

PoE

Yes

PoE Ports

8 Ports

PoE Budget

90 Watts

Product is out of stock. View similar products in-stock at PB Tech

Features

The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.

Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.

The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.

- 8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE-enabled devices
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- No need to upgrade on the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure
- Power backfeed protection to avoid damaging the PoE ports
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Rack-mount design, rack-mount kit included

Specifications

HARDWARE

Ports

8 x RJ45 2.5Base-T 2.5 Gigabit PoE++ Ports
1 x SFP+ 10GBase-X 10 Gigabit Uplink Port

Buttons

Reset Button

LED Indicators

PoE Max.: PoE Power Budget Alert
PWR: System Power Status
Link/Act: Connection and Transmission Status (Port 1-8 RJ45, Port 9 SFP+)
PoE: PoE Status

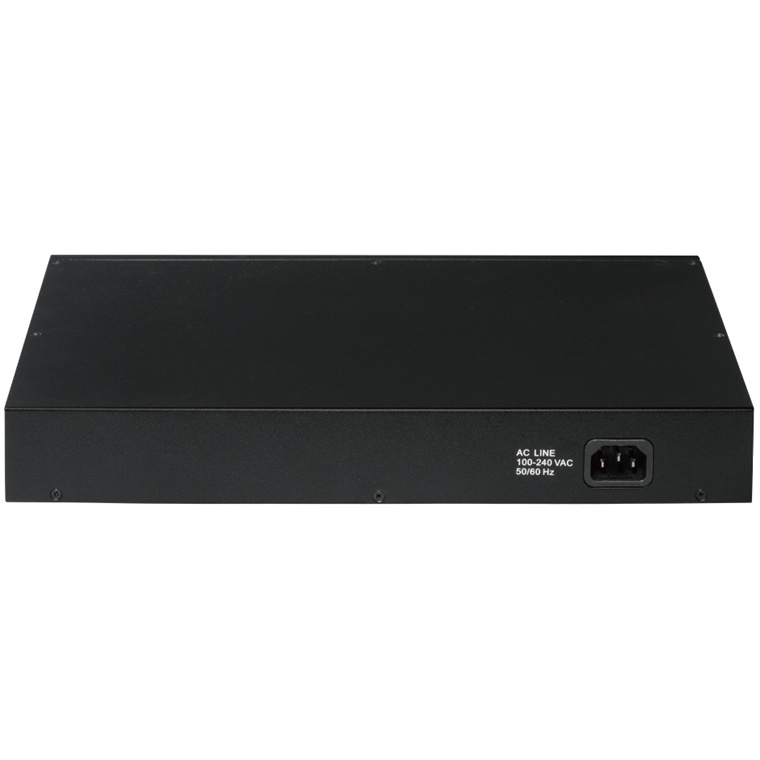

Power Input

100-240V AC, 50-60 Hz, Internal Power Supply

Total Power Budget

240W

Mounting

Desktop / Rack-mount (Rack-mount kit included)

Housing

Metal

Fan

1 x Fan with Intelligent Thermal Controller

Dimensions

330 (W) x 230 (D) x 44 (H) mm
(12.99 (W) x 9.06 (D) x 1.73 (H) inches)

Weight

2.39kg (5.27lb)

PERFORMANCE

Switching Capacity / Backplane

60Gbps

Forwarding Rates

Max. 44.64Mpps (64-byte package size)

MAC Address Table

4K

Jumbo Frames

12KB

Packet Buffer

8.1Mb

POWER OVER ETHERNET

Standard

IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), IEEE 802.3af (PoE)

Power Output

Up to 90W per Port

Pin Assignment

IEEE 802.3at/af: Alternative A (Pin 1,2/3,6)
IEEE 802.3bt: Alternative A & B (Pin 1,2/3,6 & Pin 4,5/7,8)

Management

PoE Status, PoE On/Off

Long Range

Guaranteed PoE long distance to 200 meters (656 feet) at 10Mbps

Backfeed Protection

Built-in

SMART FEATURES

Quality of Service (QoS)

Port-based QoS
IEEE802.1p QoS
4 Priority Queues
Scheduling Algorithms

VLAN

Up to 10 VLANs
802.1Q Tag-based VLAN

Port Trunking

IEEE 802.3ad LACP Trunk-Static Trunk

IGMP Snooping

IGMP v1/v2/v3 Snooping
Block unknown multicast traffic
Multicast Groups: 128

Port Mirroring

Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress

Security

Broadcast Storm Control

Management

User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention

OTHERS

Standard

IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber
IEEE 802.3ae 10GBase-X Gigabit Ethernet over Fiber
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3bt Power over Ethernet (PoE++)
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet

Environmental Condition

Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90%  (Non-condensing)
Storage: 10 ~ 90%  (Non-condensing)

Certifications

FCC, CE

Manufacturer Part No:
TGS-3109PLX
Brand:
Product Type:
-
UPC
4717964705358
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
NETLEDM5358
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
