Edimax TGS-3109XT 8 Port 2.5GbE Web Smart Switch with 1x 10GbE Multi-Gigabit

  • Brand: Edimax
  • MPN: TGS-3109XT
  • Part #: NETLEDM5396
  • UPC:
1
PB Tech price
$ 218 .99 $ 251 .84
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Edimax
  • MPN: TGS-3109XT
  • Part #: NETLEDM5396
  • UPC:

10 Gigabit Ports

N/A

10 Gigabit

No

Form Factor

Desktop

Management Level

Smart / Web Managed

Number of Ports

8 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"Great switch and impressive specs for its price range. 10gbe was just what i needed to complete my home network with ROG router and Hyperfibre."

AM
By: AlexM54 19/05/25
Verified Owner

Features

The EDIMAX Pro TGS-3109XT is a web-smart switch with 8x2.5GbE and 1x10GbE ports. The 10GbE port is a Multi-Gigabit 5-Speed that provides either 100Mbps, 1Gbps, 2.5Gbps, 5Gbps or 10Gbps. The switch offers powerful and reliable network connectivity, providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.

With user-friendly smart web-based management utility features, showing outstanding performance and high efficiency that offers essential features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention. The TGS3109XT is a compact yet useful switch, ideal for network connectivity in the home, small office, small-and-medium business and enterprise environments.

- 8 x 2.5GbE and 1 x 10GbE Multi-Gigabit 5-Speed (100M/1G/2.5G/5G/10G) RJ45 port
- No need to upgrade cabling infrastructure doubles network bandwidth up to 2.5GbE by leveraging existing CAT5E cabling infrastructure
- Web-based setup interface enables easy configuration and management
- Supports smart management features including QoS,  802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame

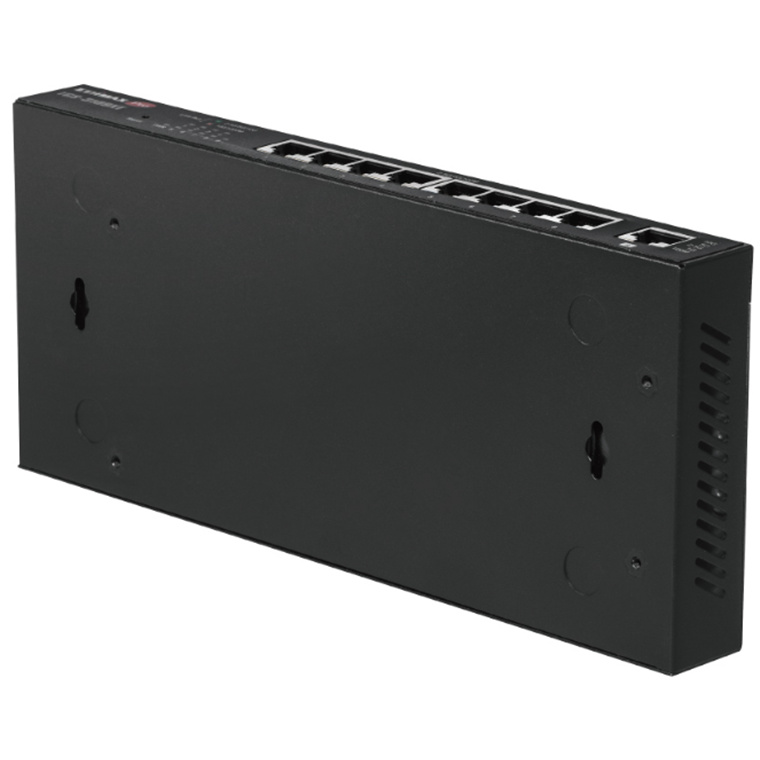

- Fanless, quiet, compact and durable wall-mountable metal chassis design

Specifications

HARDWARE

Ports

8 x RJ45 2.5Base-T 2.5 Gigabit Ports
1 x RJ45 10GBase-X 10 Gigabit Uplink Port

Buttons

Reset Button

LED Indicators

PWR: System Power Status
Link/Act: Connection and Transmission Status

Power Input

External Power Supply (DC12V/1A)

Mounting

Desktop / Wall-mount

Housing

Metal

Fan

Fanless

Dimensions

240 (W) x 105 (D) x 27 (H) mm
(9.45 (W) x 4.13 (D) x 1.06 (H) inches)

Weight

713g (1.58lb)

PERFORMANCE

Switching Capacity / Backplane

60Gbps

Forwarding Rates

Max. 44.64Mpps (64-byte Package Size)

MAC Address Table

4K

Jumbo Frames

12KB

Packet Buffer

8.1Mb

SMART FEATURES

Quality of Service (QoS)

Port-based QoS
IEEE802.1p QoS
4 Priority Queues
Scheduling Algorithms

VLAN

Up to 10 VLANs
802.1Q Tag-based VLAN

Port Trunking

IEEE 802.3ad LACP Trunk-Static Trunk

IGMP Snooping

IGMP v1/v2/v3 Snooping
Block unknown multicast traffic
Multicast Groups: 128

Port Mirroring

Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress

Security

Broadcast Storm Control

Management

User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention

OTHERS

Standard

IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet

Environmental Condition

Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90%  (Non-condensing)
Storage: 10 ~ 90%  (Non-condensing)

Certifications

FCC, CE

Manufacturer Part No:
TGS-3109XT
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.06 kg
PB Part No:
NETLEDM5396
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
