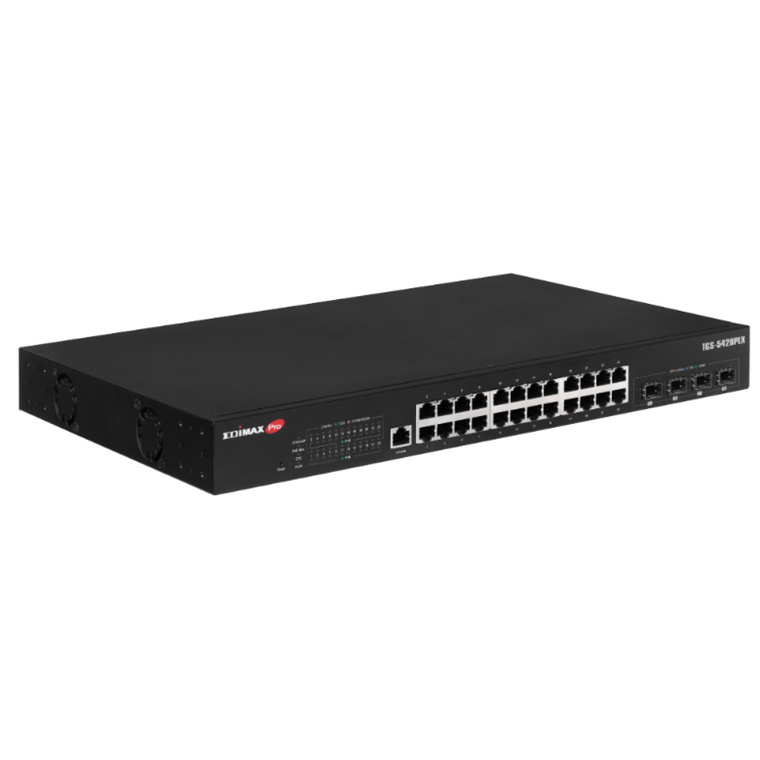

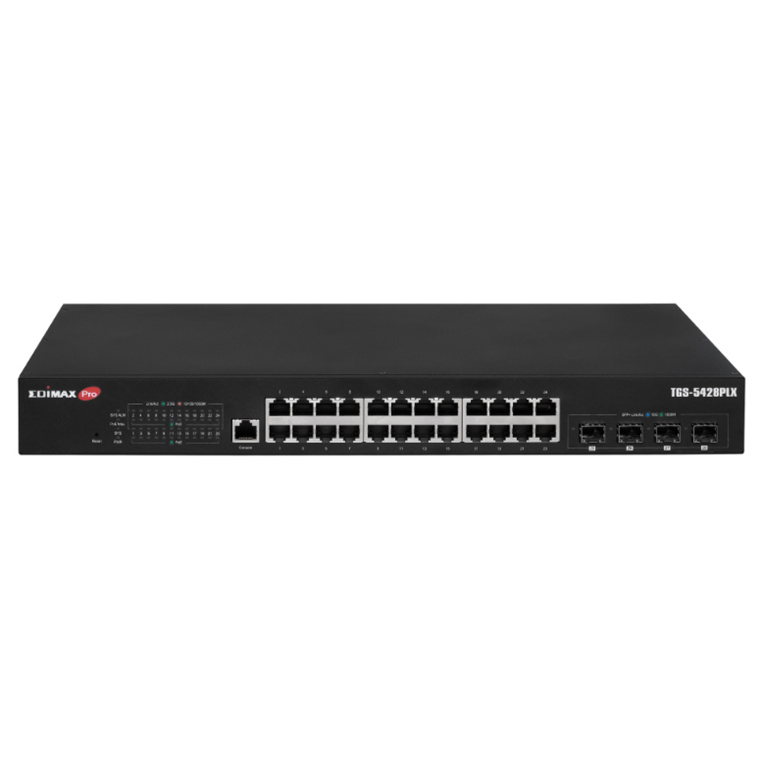

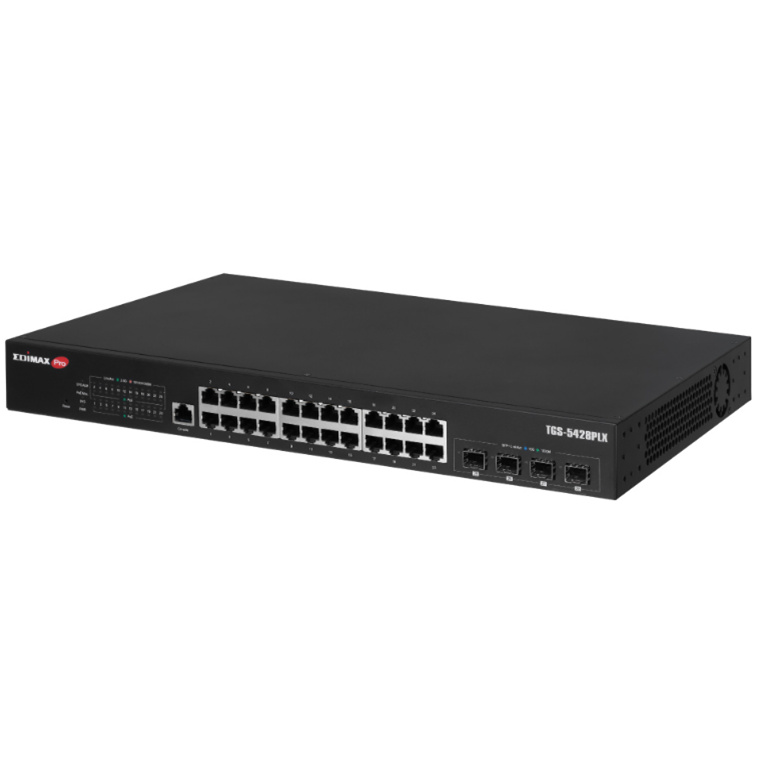

Edimax TGS-5428PLX 24-Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance VLAN Switch
Out of stock
Edimax TGS-5428PLX 24-Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance VLAN Switch
- Brand: Edimax
- MPN: TGS-5428PLX
- Part #: NETLEDM5402
- UPC: 4717964705402
- Brand: Edimax
- MPN: TGS-5428PLX
- Part #: NETLEDM5402
- UPC: 4717964705402
Product is out of stock. View similar products in-stock at PB Tech
Features
The EDIMAX Pro TGS-5428PLX is a versatile Layer switch designed for SMB and enterprise networks. With 24 2.5GbE 802.3bt 90W PoE++ RJ45 ports and 4 10GbE SFP+ ports for Gigabit fiber uplinks. It offers powerful and reliable network connectivity providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E APs.
This switch is specifically designed for surveillance systems which feature such as one-click VLAN setting and Auto-Enrollment, making it easy to set up and manage. The long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.
The TGS-5428PLX is also equipped with smart layer 2 management features such as SNMP v1/v2c/v3, Dual Firmware, Access Control List (ACL), DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping, and Port Mirroring. These features provide a scalable, secure, and reliable switch solution for your network. The switch is easy to operate with a user-friendly web-based management utility.
- 24 2.5GbE Multi-Gigabit 90W PoE++ ports and 4 10GbE SFP+ ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 200Gbps backplane bandwidth, 169.28Mpps forwarding rate, 32K MAC address table and 12KB jumbo frame
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Edimax TGS-5428PLX 24-Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance VLAN Switch
- Brand: Edimax
- MPN: TGS-5428PLX
- Part #: NETLEDM5402
- UPC:4717964705402
Product URL: https://www.pbtech.co.nz/product/NETLEDM5402/Edimax-TGS-5428PLX-24-Port-25GbE-PoE-L2-with-4x-10
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The EDIMAX Pro TGS-5428PLX is a versatile Layer switch designed for SMB and enterprise networks. With 24 2.5GbE 802.3bt 90W PoE++ RJ45 ports and 4 10GbE SFP+ ports for Gigabit fiber uplinks. It offers powerful and reliable network connectivity providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E APs.
This switch is specifically designed for surveillance systems which feature such as one-click VLAN setting and Auto-Enrollment, making it easy to set up and manage. The long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.
The TGS-5428PLX is also equipped with smart layer 2 management features such as SNMP v1/v2c/v3, Dual Firmware, Access Control List (ACL), DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping, and Port Mirroring. These features provide a scalable, secure, and reliable switch solution for your network. The switch is easy to operate with a user-friendly web-based management utility.
- 24 2.5GbE Multi-Gigabit 90W PoE++ ports and 4 10GbE SFP+ ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 200Gbps backplane bandwidth, 169.28Mpps forwarding rate, 32K MAC address table and 12KB jumbo frame
Specifications
HARDWARE
Ports
24 x RJ45 2.5Base-T 2.5 Gigabit PoE++ Ports
4 x SFP+ 10GBase-X 10 Gigabit Uplink Ports
1 x RJ45 Console Port (Console Cable Included)
Buttons
Reset button
LED Indicators
SYS ALM: System Alert
PoE Max.: PoE Power Budget Alert
SYS: System Booting Status
PWR: System Power Status
Link/Act: Connection and Transmission Status (Port 1-24 RJ45, Port 25-28 SFP+)
PoE: PoE Status

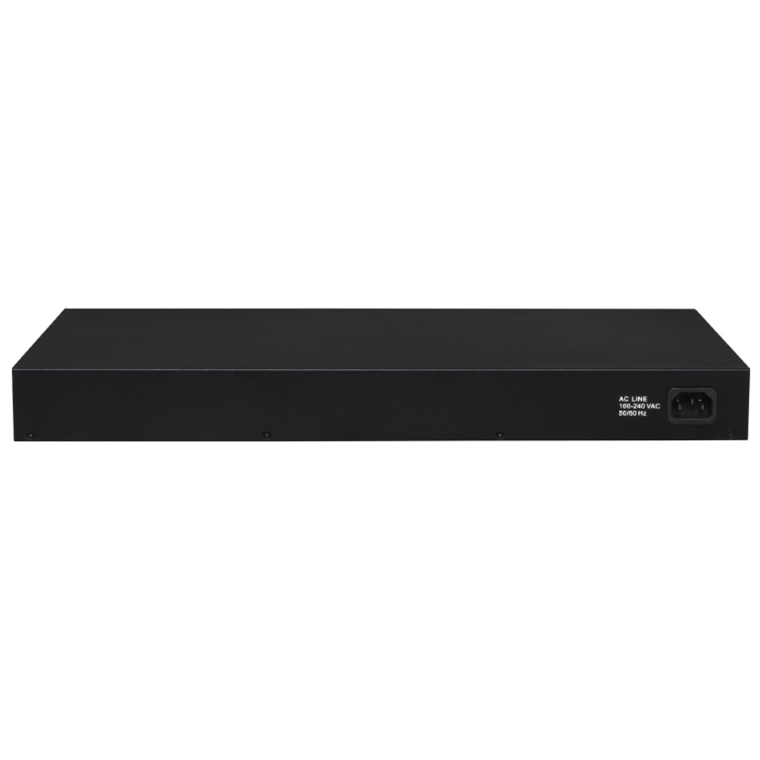

Power Input
100-240V AC, 50-60 Hz, Internal Power Supply
Total Power Budget
400W
Mounting
Desktop / Rack-mount (Rack-mount Kit Included)
Housing
Metal
Fan
3 x Fans with Intelligent Thermal Controller
Dimensions
441 (W) x 270 (D) x 44 (H) mm
(17.36 (W) x 10.63 (D) x 1.73 (H) inches)
Weight
4.45kg (9.81lb)
PERFORMANCE
Switching Capacity / Backplane
200Gbps
Forwarding Rates
Max. 169.28Mpps (64-byte Package Size)
MAC Address Table
32K
Jumbo Frames
12KB
Packet Buffer
16Mb
POWER OVER ETHERNET
Standard
IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), IEEE 802.3af(PoE)
Power Output
Up to 90W per Port
Pin Assignment
IEEE 802.3at/af: Alternative A (Pin 1,2/3,6)
IEEE 802.3bt: Alternative A & B (Pin 1,2/3,6 & Pin 4,5/7,8)
Management
PoE Status, PoE Scheduling, PoE Priority, PoE On/Off, PoE PD Alive Check
Long Range
Guaranteed PoE long distance to 200 meters at 10Mbps
Backfeed Protection
Built-in
SMART FEATURES
Quality of Service (QoS)
Rate limiting on packets sent and received by an interface
8 queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS)
IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN
Up to 256 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Surveillance VLAN
Voice VLAN
MAC VLAN
GVRP
IPV6
IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking
IEEE 802.3ad LACP Trunk-Static Trunk
Up to 8 trunk groups
IGMP Snooping
IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Port Mirroring
Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress
Security
RADIUS
TACACS+
AAA
Management Access
Authentication Manager
Port Security
Protected Port
Broadcast Storm Control
DoS
Dynamic ARP Inspection
DHCP Snooping
IP Source Guard
BPDU Guard
Remote Access: HTTPS/SSH/HTTP/Telnet/ Session Timeout
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
Dual-firmware image for failover mechanisms
ACL (Access Control List)
CLI (Command-Line Interface)
User Account: Login account configuration
SNMP v1/v2c/v3
OTHERS
Standard
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber
IEEE 802.3ae 10GBase-X Gigabit Ethernet over Fiber
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3bt Power over Ethernet (PoE++)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1x Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP), LLDP-MED (Media Endpoint Discovery)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Tempertatue:
Operating: 0 ~ 50? (32~122°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90% (Non-condensing)
Storage: 10 ~ 90% (Non-condensing)
Certifications
FCC, CE
