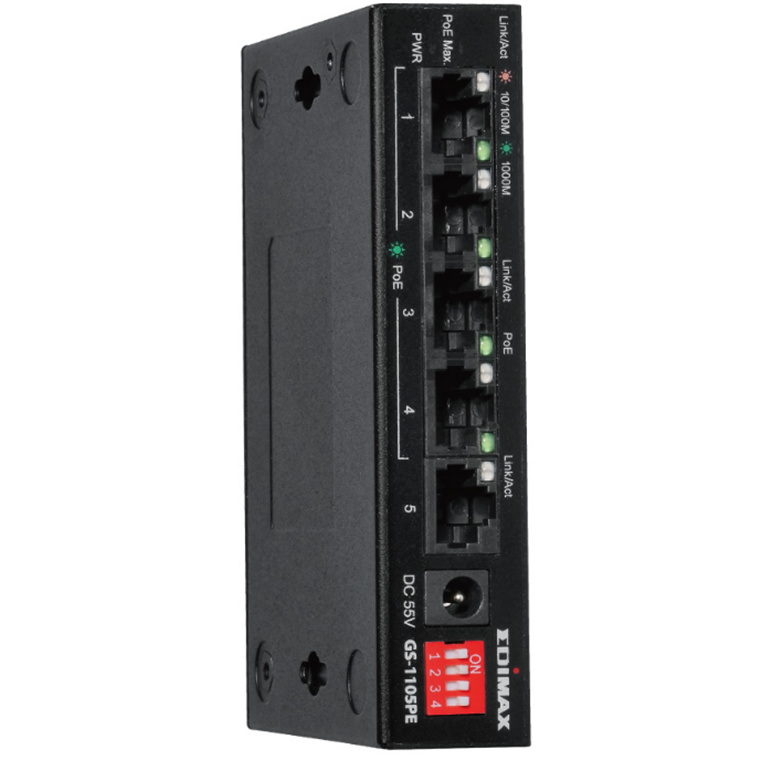

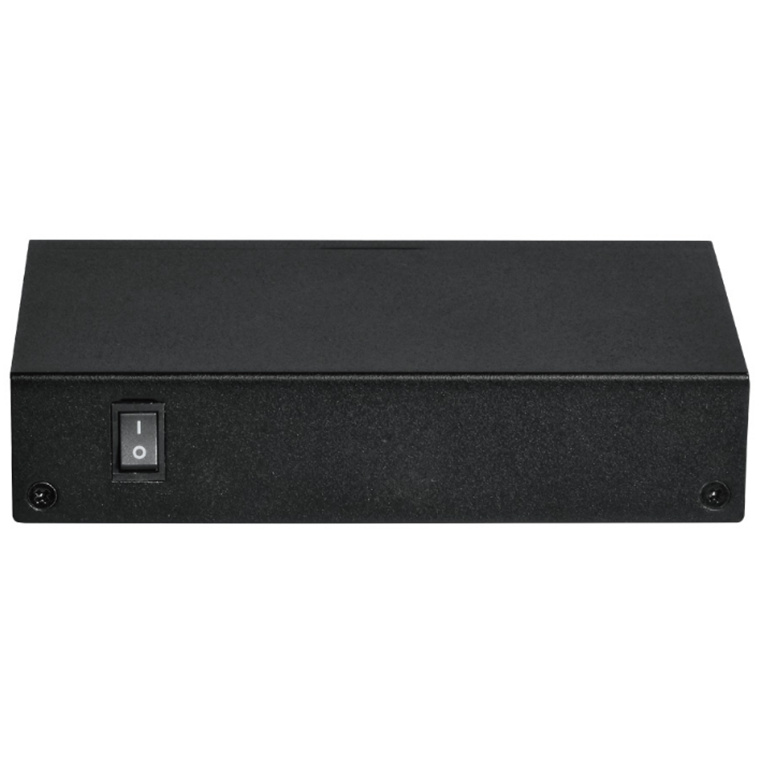

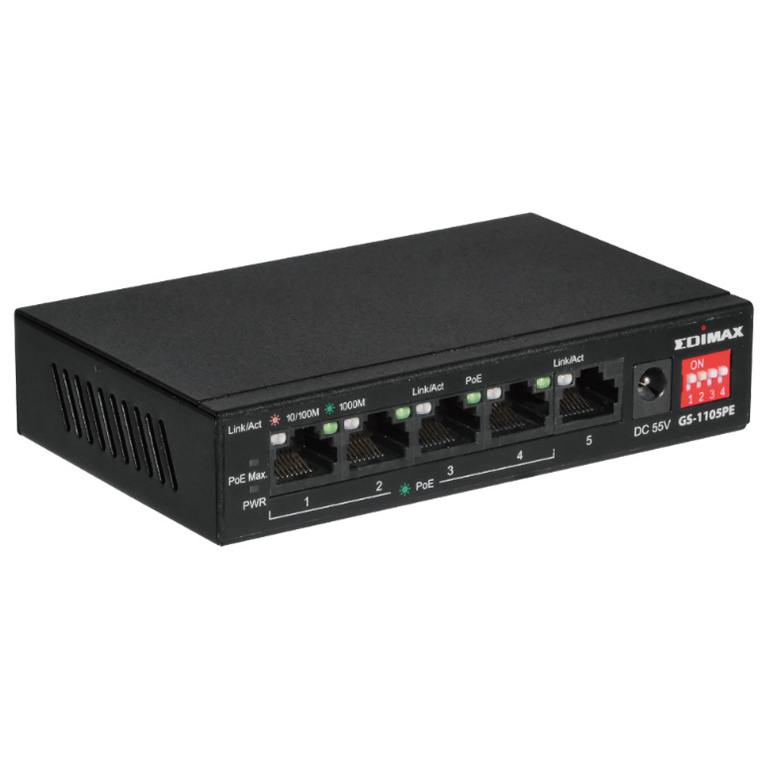

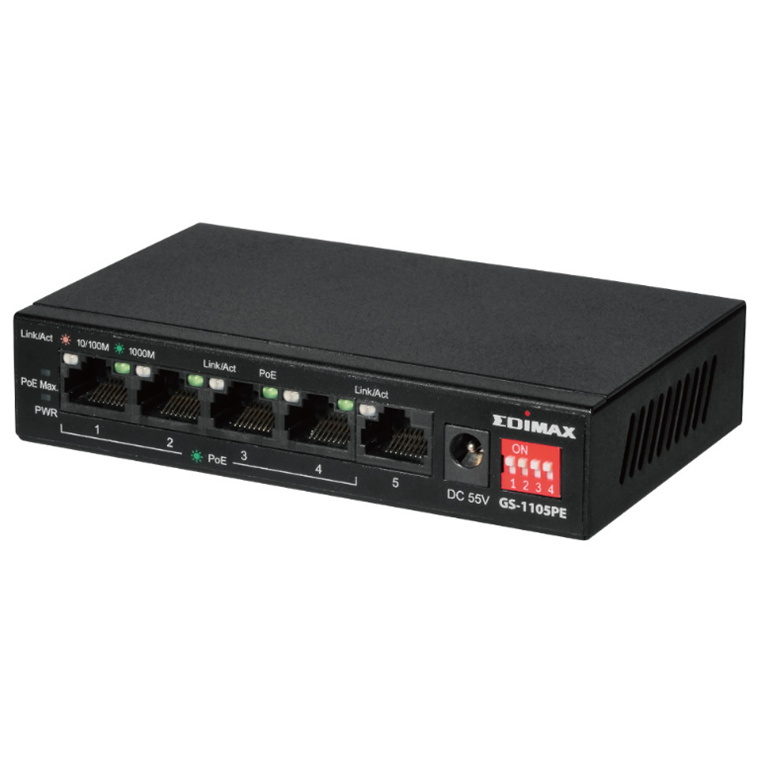

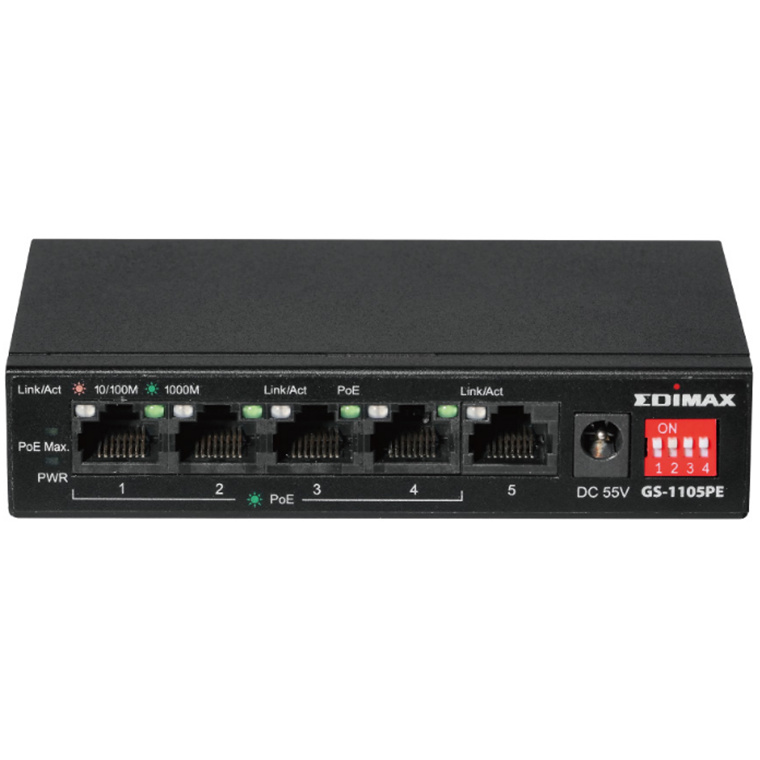

Edimax GS-1105PE 5 Port 10/100/1000 Gigabit Ethernet with 4x PoE+ Ports and DIP Switch

PB Tech price
PB Tech price
$ 87 .83
 +GST
$ 101 .00
 inc GST
$87.83  +GST
$101.00

Edimax GS-1105PE 5 Port 10/100/1000 Gigabit Ethernet with 4x PoE+ Ports and DIP Switch

  • Brand: Edimax
  • MPN: GS-1105PE
  • Part #: NETLEDM5426
  • UPC: 4717964705426
PB Tech price
$ 87 .83 $ 101 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Oct When will I receive it?
$87.83  +GST
$101.00
  • Brand: Edimax
  • MPN: GS-1105PE
  • Part #: NETLEDM5426
  • UPC: 4717964705426

10 Gigabit

No

10 Gigabit Ports

N/A

Form Factor

Desktop

Management Level

Not Specified

Number of Ports

5 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

60 Watts

Similar in-stock products available at PB Tech right now

Features

The Edimax GS-1105PE is a Long Range 5-Port Gigabit PoE+ Switch designed for using at home, or small and medium sized network environments. With 4 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance to 200 meters or further, and also support port-based VLAN and QoS functions.

It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernetenabled devices such as computers, printers and network attached storage (NAS). The device's compact size, fanless and wall-mount metal casing design make it an ideal solution for expanding home and small business networks.

- Gigabit High Speed PoE+: Equipped with 5 Gigabit ports, including 4 PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 60W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated ports to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid damage by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment & Energy Efficient
- Quiet Fanless, Compact, Durable Metal Casing

Specifications

HARDWARE

Ports

4 x RJ-45 10/100/1000Base-T PoE+ Ports
1 x RJ-45 10/100/1000Base-T Ports

LED Indicators

PoE Max.: PoE Power Budget Alert
PWR: System Power Status
Link/Act: Connection and Transmission Status (Left LED, Port 1-5)
PoE: PoE Status (Right LED, Port 1-4)

DIP Switch

PoE Extend, VLAN, QoS

Power Input

External Power Supply (DC 55V/1.3A)

Towal Power Supply

72W

Mounting

Desktop / Wall-mount

Housing

Metal

Fan

Fanless

Dimensions

121(W) x 75(D) x 26(H) mm
(4.76 (W) x 2.95 (D) x 1.02 (H) inches)

Weight

240g (0.53lb)

PERFORMANCE

Switching Capacity / Backplane

10Gbps

Forwarding Rates

Max. 7.44Mpps

MAC Address Table

2K

Jumbo Frames

9KB

Packet Buffer

1Mb

POWER OVER ETHERNET

Standard

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Power Output

Up to 30W per port

Pin Assignment

1/2(+), 3/6(-) End-Span (mode A)

PoE Power Budget

60W

Long Range

DIP switch ON to support PoE with long range to 200 meters at 10Mbps

Backfeed Protection

Built-in

OTHERS

Standard

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.3az Energy Efficient Ethernet

Environmental Condition

Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90%  (Non-condensing)
Storage: 5 ~ 90%  (Non-condensing)

Certifications

FCC, CE, LVD, BSMI
