LevelOne IGS-2105 6-Port Gigabit Industrial Smart Switch -40 C to 75 C DIN-Rail (Promotionalprice)
LevelOne IGS-2105 6-Port Gigabit Industrial Smart Switch -40 C to 75 C DIN-Rail (Promotionalprice)
- Brand: LevelOne
- MPN: IGS-2105
- Part #: NETLEL1010
- UPC:
- Brand: LevelOne
- MPN: IGS-2105
- Part #: NETLEL1010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switch Module





LevelOne IGS-2105 6-Port Gigabit Industrial Smart Switch -40 C to 75 C DIN-Rail (Promotionalprice)
- Brand: LevelOne
- MPN: IGS-2105
- Part #: NETLEL1010

Product URL: https://www.pbtech.co.nz/product/NETLEL1010/LevelOne-IGS-2105-6-Port-Gigabit-Industrial-Smart
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
IGS-2105 Hilbert 5-Port Industrial Gigabit Smart Lite Switch
The LevelOne IGS-2105 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2105 delivers 5 (10M/100M/1G) RJ45 ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne IGS-2105 provides high HW performance and environment flexibility for Enterprises. IGS-2105 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
- 5 Gigabit Ethernet ports
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- Support STP/RSTP Spanning Tree Protocol
- IP Multicast Filtering through IGMP Snooping V1 / V2
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
- IEEE 802.1p QoS with 4 priority queues
- Supports unknown unicast / broadcast / multicast storm control
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- -40°C to 75°C operating temperature range
- 4KV surge protection, 6KV contact / 8KV air ESD protection

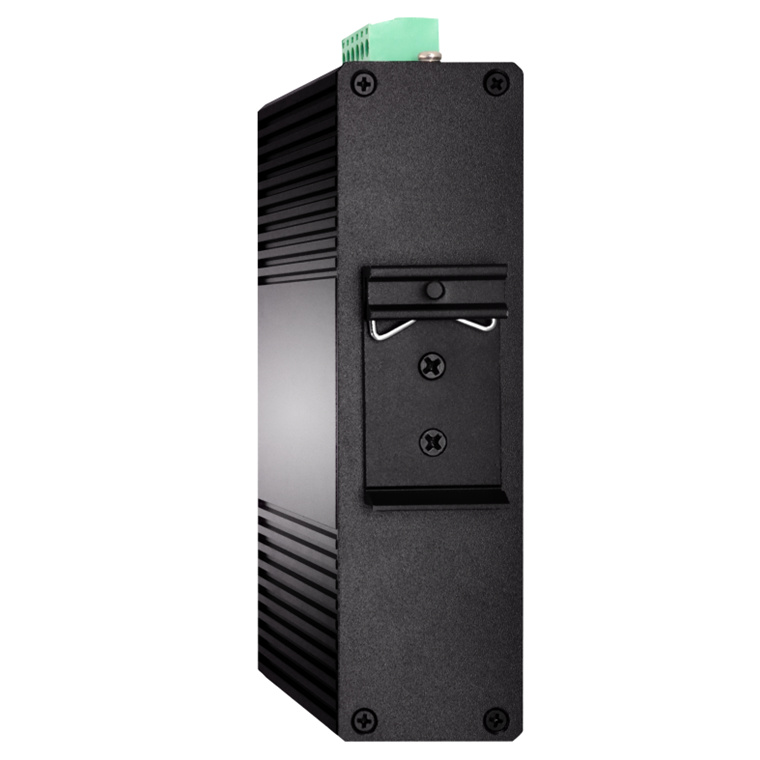

- Supports DIN-rail installation
- Web-based and smart lite Management
- Supports LevelOne IP Locator for easier IP management.
Specifications
General
Brand
LevelOne
Manufacturer Part Number
IGS-2105
Color
Black
Weight
0.35 kg
Dimensions (W x D x H)
136 x 108 x 38.5 mm
Features
Features
L2 Switching Features:
IGMP Snooping
Link Aggregation (Supports static link aggregation)
Port Mirroring
Cable Test
VLAN:
Supports up to 32 VLANs (out of 4K VLAN IDs)
MTU/Port/802.1Q VLAN
Quality of Service (QoS):
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Management
Web-based Graphic User Interface (GUI)
Supports LevelOne IP Locator for easier IP management
Miscellaneous
Grade
Industrial
PoE Supported
No
Manageable
Yes
Fanless
Yes
Series
HILBERT series
Others
Approval and Compliance
CE
UKCA
FCC Part 15, Subpart B Class B
RoHS
Operating humidity
10% RH ~ 90% RH
Operating temperature
-40°C ~ 75°C
Storage humidity
5% RH ~ 95% RH
Storage temperature
-40°C ~ 85°C
Package Contents
IGS-2105
Power Terminal Block
Din-rail Mount Kit
Quick Installation Guide
Declaration of Conformity
Performance
Switching capacity
10 Gbps
System specifications
Power supply
VDC 12~57V
Data Rate
1Gbps
Power supply included
No

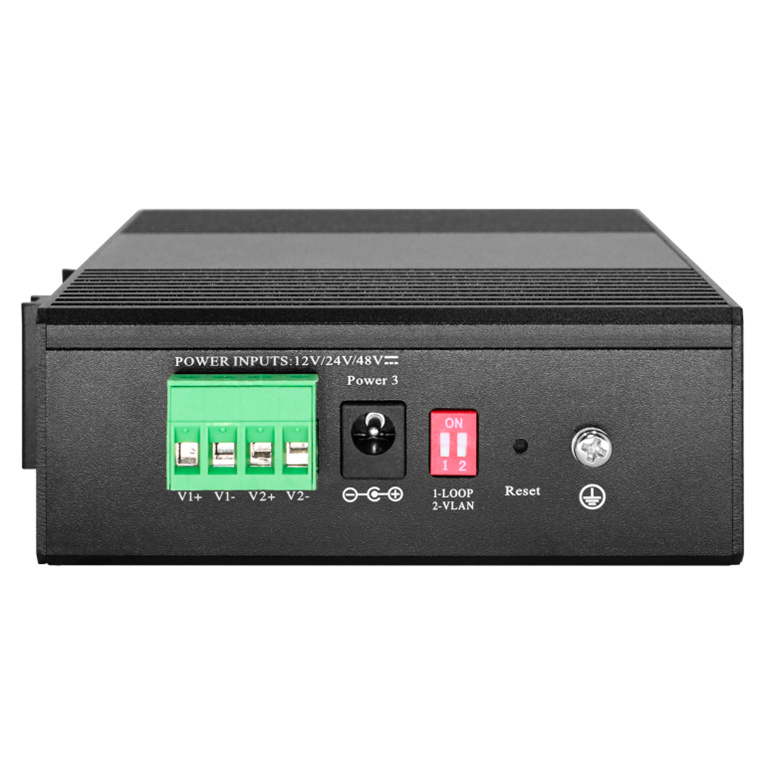

Power input
Redundant Dual DC 12V/24V/48V
Power consumption
5 W
MTBF
43,800 hrs
Heat dissipation
17.06 (Btu/H)
Packet forwarding rate
7.44 Mpps
Port Configuration
4x 10/100/1000 Ethernet ports, 1x 10/100/1000 Ethernet uplinks
IP grade
IP30
Standard
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
Acoustic noise (dB)
0 dB (A)
Mount
DIN rail mount
Flash memory size
2 MB
MAC address table
2 K
Jumbo frame (KB)
9 KB
Indicators
Power, Link/Act
Dip switch
LOOP, VLAN ON/OFF
Packet buffer
1.5 Mbits
Backplane (Gbps)
10
