LevelOne PoE Injector Gigabit Ethernet PoE+ 30W
LevelOne PoE Injector Gigabit Ethernet PoE+ 30W
- Brand: LevelOne
- MPN: POI-3014
- Part #: NETLEL3014
- UPC:
- Brand: LevelOne
- MPN: POI-3014
- Part #: NETLEL3014
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





LevelOne PoE Injector Gigabit Ethernet PoE+ 30W
- Brand: LevelOne
- MPN: POI-3014
- Part #: NETLEL3014

Product URL: https://www.pbtech.co.nz/product/NETLEL3014/LevelOne-PoE-Injector-Gigabit-Ethernet-PoE-30W
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The LevelOne POI-3014 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch are merged together and then transmitted to a PD such as a PoE network camera, through the Ethernet cabling. This allows you to extend the use of your existing hardware investment without needing to buy extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
- Delivers power and data to equipment via a single Ethernet cable
- Works with 802.3af and 802.3at devices
- Total PoE power budget: 30W
- Gigabit Ethernet
- Data and power feeding up to 100m
- Unique interlocking feature for easy installation
- Surge protected to enhance safety
- Simple Plug and Play installation
- Compact, lightweight design
Specifications
System specifications
Indicators
Power
Mount
Ceiling mount
Pin assignment and polarity
4/5 (+), 7/8 (-)
Power consumption
30W

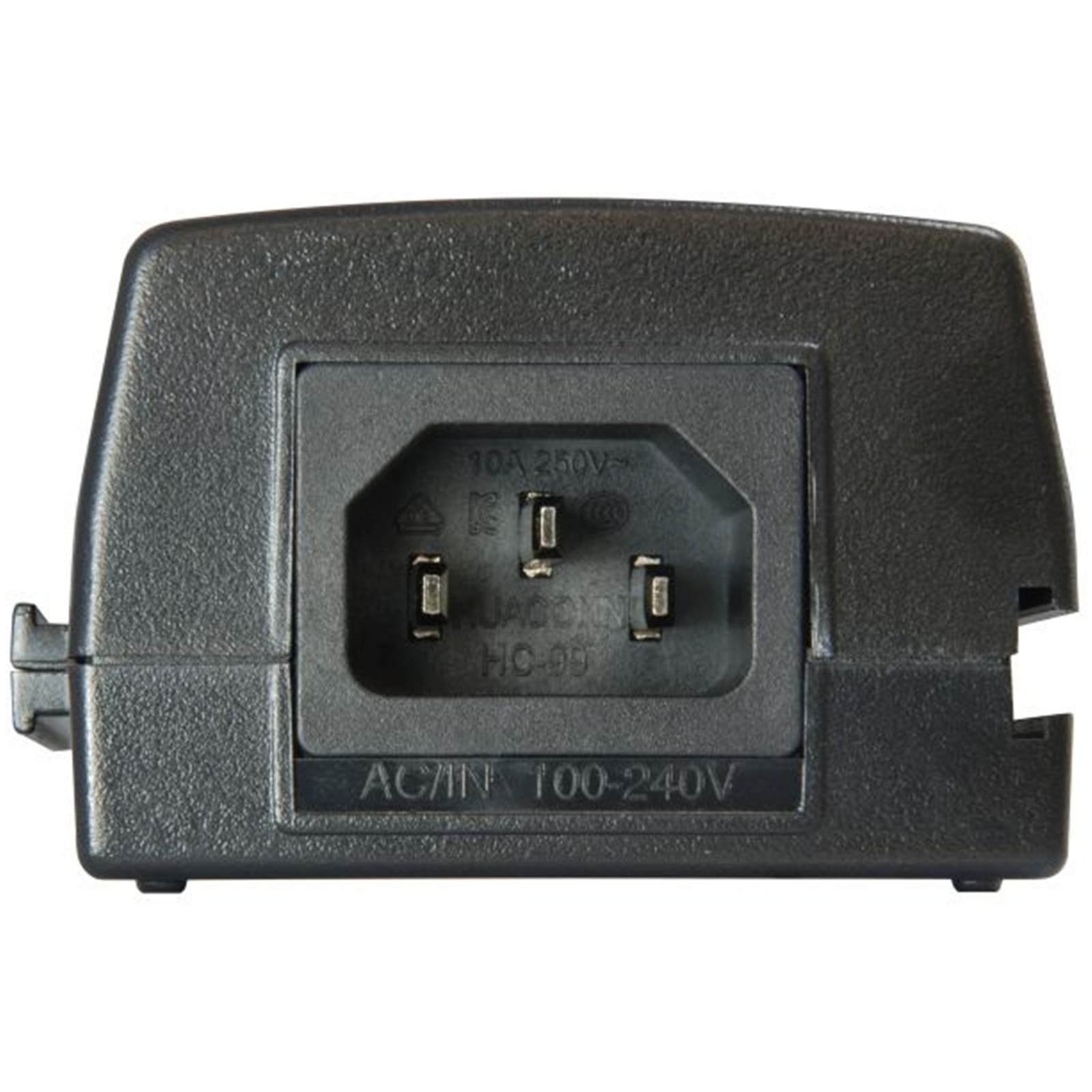

Power input
100-240V AC
Power Output
110-240VAC
Standard
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3ab 1000BASE-T
General
Color
Black
Model Number
POI-3014
Miscellaneous
Injector Port Type
Single Port
Data rate
Gigabit Ethernet
Grade
Commercial
Others
Operating humidity
10% RH ~ 90% RH
Operating temperature
0°C ~ 40°C
Storage humidity
5% RH ~ 95% RH
Storage temperature
0°C ~ 70°C
Physical Specifications
Dimensions (W x D x H)
145.7 x 64.39 x 43.4 mm
Product weight (kg)
0,35
