Features
Networking / Fiber Optical Transceiver / SFP-9331

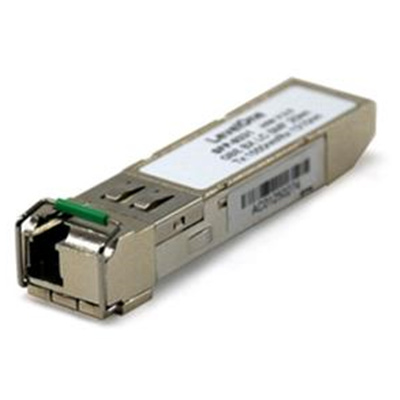

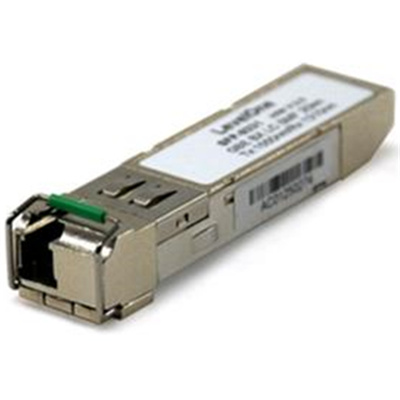

The LevelOne SFP-9331 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.
Key Features
- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Specifications
Standards & Protocols:
IEEE 802.3ah 1000BASE-BX10-D
SFP Multi-Sourcing Agreement(MSA)
Connectors and Cabling:
Simplex LC Connector, Single-mode fiber(SMF)
Wavelength(nm):
T 1550nm / R 1310nm
Optical Receive Sensitivity:
-23 dBm
Optical Link Power Budget:
15 dB
Power Input:
Supply Voltage: 3.3V
Max Voltage/Current: 6V/300mA
General:
Hot-swappable
Data Transfer Rate:
1.25 Gbps Bi-directional data link
Operating Distance:
up to 20km (9/125µm)
Fiber channel up to 1.06Gbps
Optical Transmission Power:
-8~ -3 dBm
Temperature (°C):
Operating: 0°C ~ 70°C
Storage: -40 ~ 85°C
Humidity (Non-condensing):
5 ~ 95%
Dimensions (W x D x H mm):
13.7 x 56.5 x 8.95 mm
Weight (g):
20g
EMI/EMS:
Class 1 eye safety and comply with EN 60825-1
