Laird 24dBi 5.15GHz to 5.85GHz Flat Panel Antenna
Laird 24dBi 5.15GHz to 5.85GHz Flat Panel Antenna
- Brand: Laird
- MPN: ANT-133
- Part #: NETLID721312
- UPC:
- Brand: Laird
- MPN: ANT-133
- Part #: NETLID721312
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Laird 24dBi 5.15GHz to 5.85GHz Flat Panel Antenna
- Brand: Laird
- MPN: ANT-133
- Part #: NETLID721312

Product URL: https://www.pbtech.co.nz/product/NETLID721312/Laird-24dBi-515GHz-to-585GHz-Flat-Panel-Antenna
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

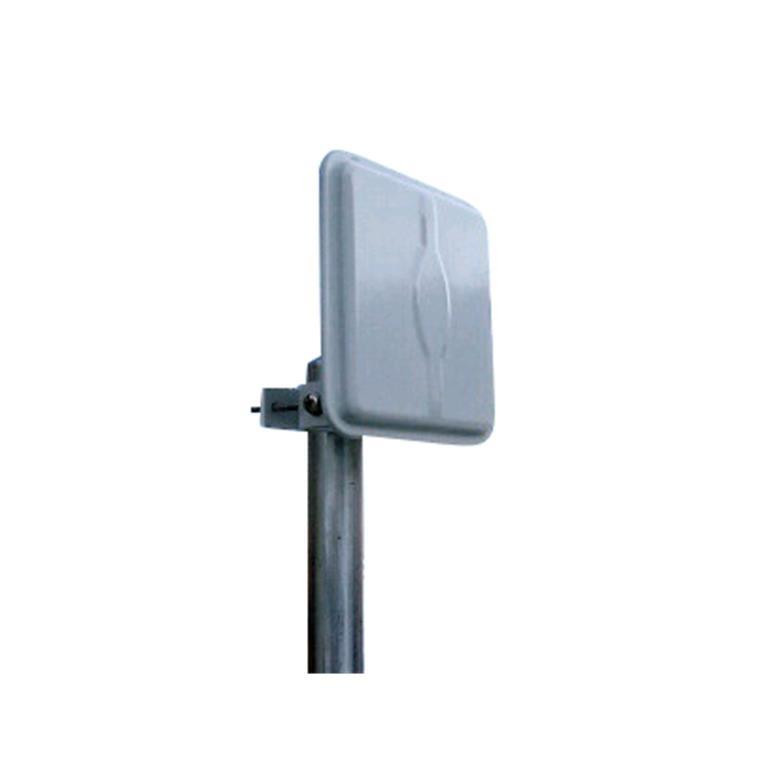

The 5GHz wideband flat panel directional antennas by Laird Technologies offer high gain in a thin low profile package. The antennas are constructed of a gray color UV resistant ABS plastic radome with an aluminum back plate. The antenna can be used in horizontal or vertical polarisation. The die cast aluminum bracket affords +/- 45 deg up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be surface mounted or pole mounted. The antenna comes with an integral N female connector standard. Great for use with Ubiquiti and Mikrotik high power long range radios.
- High gain / low profile / wide band
- Pole mount or surface mount
-Rugged and weatherproof
- Vertical or horizontal polarization
- Type N female connector
- 5GHz wireless LAN applications
- Client antennas
- 802.11a applications
- OEM wireless data
Specifications
Frequency Range
5150-5825MHz
Gain
24dBi
Polarisation
Vertical or Horizontal
Vertical Beamwidth
8deg
Horizontal Beamwidth
8deg
Connector Type
N-Type Female
Dimensions
390x371x21mm
Pole Mount Diameter
25-64mm
