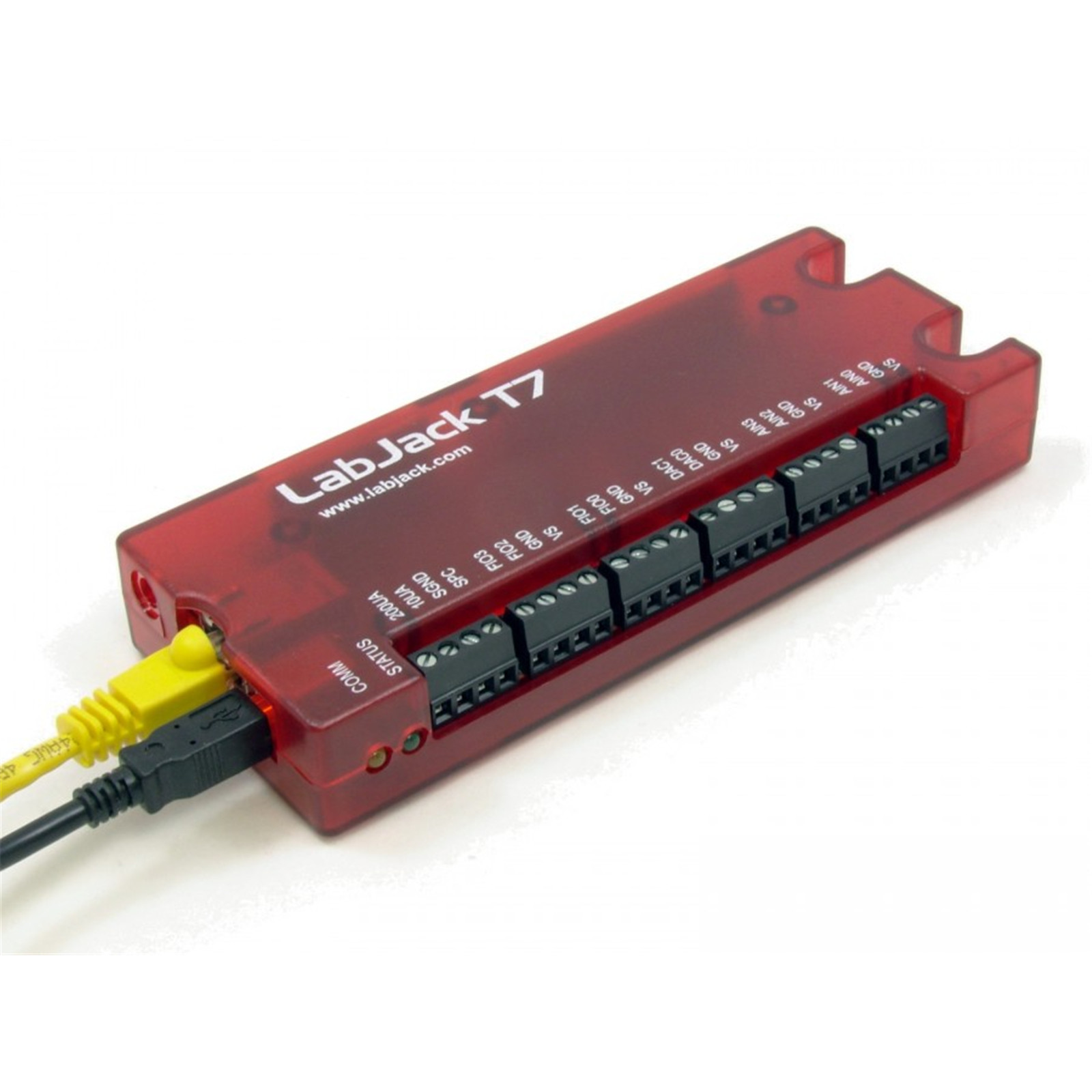

Labjack T7 USB or Ethernet multifunction DAQ device

PB Tech price
PB Tech price
$ 1,012 .17
 +GST
$ 1,164 .00
 inc GST
$1,012.17  +GST
$1,164.00

Labjack T7 USB or Ethernet multifunction DAQ device

  • Brand: Labjack
  • MPN: T7
  • Part #: NETLJK1001
  • UPC:
PB Tech price
$ 1,012 .17 $ 1,164 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 06 Oct When will I receive it?
$1,012.17  +GST
$1,164.00

Finance from $11.07 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

Multifunction DAQ with WiFi, Ethernet, and USB

Choose the T7 series for ultimate flexibility. With 16 to 24-bit analog inputs, the option to use USB, Ethernet, or WiFi, and numerous built-in firmware features, the T7 Series can help you accomplish nearly any data acquisition need.

It's great for acquiring signals from virtually any kind sensor, and can serve that sensor data out through any of its 3 communication interfaces. With instrumentation amplified inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 Series is our most versatile multifunction DAQ platform. Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, the T7 series devices are capable of stand-alone operation by running Lua scripts.

Specifications

Analog Input
14 Analog Inputs built in (16-24 Bits Depending on Speed & Device Type)
Expand to 84 analog inputs with Mux80 add-on
T7: 16-bit high-speed ADC (up to 100k samples/s)
T7-Pro: 24-bit low-speed ADC (resolution as low as 1uV noise-free)
Software Configurable Resolution Settings
Single-Ended Inputs (14) or Differential Inputs (7)
Analog input ranges: ±10V, ±1V, ±0.1V and ±0.01V
All analog input features are software programmable by configuring the Analog Input Registers
High speed sampling configurable by using Stream Mode. Speeds up to 100kS/s
Low Latency Sampling and Control (less than 1ms) is made easy with Command-Response Modbus messages
Easy integration with sensors like thermocouples, load cells, bridges, and more ...

Analog Output

2 analog outputs (12-bit, 0-5V)
Waveform generation via Stream Out
Integrated LJTick-DAC support for multiple +/-10V outputs

Digital I/O

23 Digital I/O
Supports SPI, I2C, and more... (Master Only)
5 PWM Outputs with individual phase control
5 Pulse Outputs with configurable number, frequency, and width
2 Frequency Inputs returning both frequency and period
2 Pulse Width Inputs measuring time spent high and low as well as duty cycle
2 Line-to-Line Inputs measuring the time between edges on 2 different lines
4 High-Speed Counters
6 Software Counters w/ debounce capabilities
3 Pairs of Quadrature Inputs
Many of these DIO Extended Features share pins and cannot be used at the same time. See the DIO Extended Features section of the T7's datasheet

Fixed Current Outputs
200 µA
10 µA

Communication Options

USB
Ethernet
802.11b/g WiFi (T7-Pro only)

Other Highlights

Capable of stand-alone operation by running Lua Scripts
Built-In CJC Temperature Sensor for easy thermocouple temperature readings
Watchdog system
Field Upgradable Firmware
Programmable Startup Defaults
Industrial temperature range (-40 to +85C)

Package Contents
T7 (-Pro) unit itself in red enclosure
USB cable (6 ft / 1.8 m)
Ethernet Cable (6ft / 1.8m)
USB 5V power supply
Screwdriver
Antenna (T7-Pro only)
Other package details: No software CD included. Download the software from labjack.com.
Retail packing (Package) size: 10" x 7" x 3"
Retail packing (Package) wt: 1.2lb
