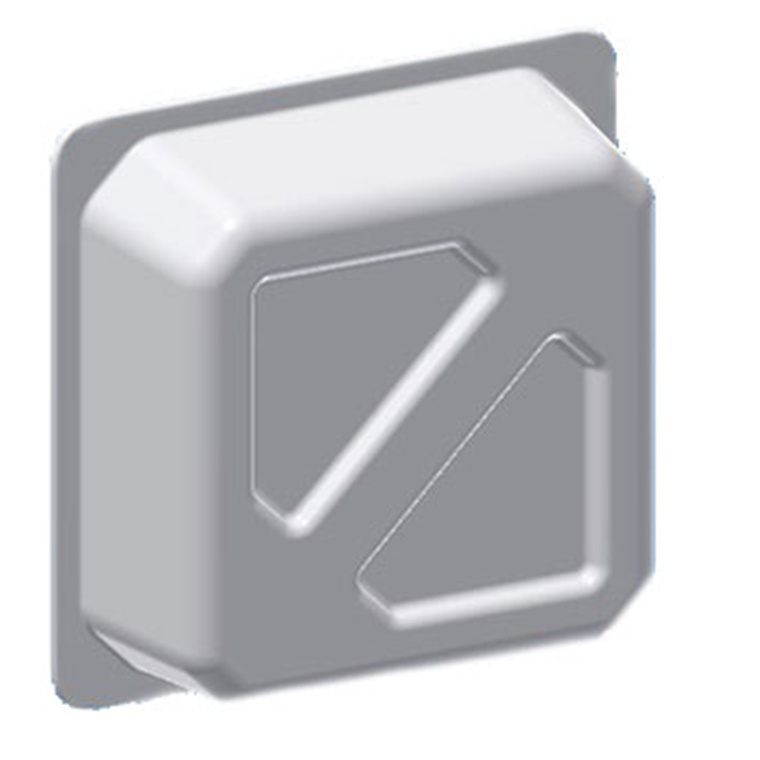

Mars Antennas Mars AntennasMars 350MHz to 6GHz Multi band Dual Slant Directional Antenna
Mars Antennas Mars AntennasMars 350MHz to 6GHz Multi band Dual Slant Directional Antenna
- Brand: Mars Antennas
- MPN: ANT-258
- Part #: NETMAN0001
- UPC:
- Brand: Mars Antennas
- MPN: ANT-258
- Part #: NETMAN0001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Mars Antennas Mars AntennasMars 350MHz to 6GHz Multi band Dual Slant Directional Antenna
- Brand: Mars Antennas
- MPN: ANT-258
- Part #: NETMAN0001

Product URL: https://www.pbtech.co.nz/product/NETMAN0001/Mars-Antennas-Mars-AntennasMars-350MHz-to-6GHz-Mul
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
This Multi Band Antenna covers all the bands for LTE, 3G, 4G and 5G cellular, as well as CBRS, ISM, Wi Fi, WLAN, Bluetooth, GSM 900 and GSM 1900.
The antenna is aesthetic and has an unobtrusive profile that blends easily with any environment.
Easy installation makes this antenna highly recommended as an outstanding logistic solution for outdoor installations as well as in-building installations.
Specifications
Manufacturer's Product Code
MA-WA3560-DS7B
Frequency range
350-400MHz, 698-960MHz, 1.7-2.7GHz, 3.3-3.8 GHz 5.15-6.0GHz
Gain typ
1.5 dBi to 7.5 dBi frequency dependant
Polarization
Dual Slant ± 45° or Dual Pol in Diamond Shape
Front to Back Ratio
min -15 dB
PIM typ
-150 dBc
Input power max
50 Watt
Impedance
50 Ohm
Dimensions
(HxWxD) 300 x 300 x 99 mm (12.2" x 12.2" x 4.96" )
Connector
2 x N Female
Weight
900 grams
Mounting
MNT-22
Radome
UV Protected Plastic
Back Plane
Aluminium protected through chemical passivization
Operating Temperature Range
-55°C to +65°C
Vibration
According to IEC 60721-3-4
Wind Load
200 Km/h (Survival)
Flammability
UL94
Water Proofing
IP-67
Humidity
ETS 300 019-1-4,EN 302 085 (Annex A.1.1)
Salt Fog
According to IEC 68-2-11
