Features

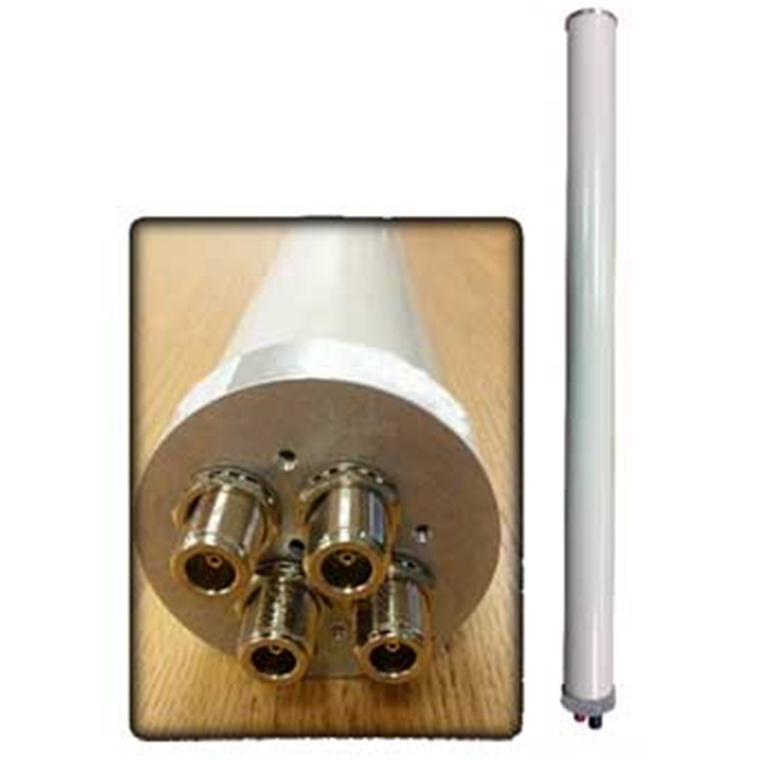

MARS 2.3-2.7 & 4.9-5.9 GHz Dual Polarization and Dual Band Omni Directional Antenna. This Dual Band Antenna provides a stable and efficient performance with 7.5 -9 dBi of gain and cost effective solution for large scale applications and systems such as 802.11, Point To Multi Point ,WLAN access points, mesh Networks, ISM, WiMAX and more.
- Dual Band 2.4GHz, 5GHz and Dual Polarised!
- Wide Band frequency usage
Specifications
Manufacturer's Product Code
MA-WO2556-DPDB9
Frequency Range
2.3 -2.7 GHz and 4.9-5.9 GHz
GAIN, typ
7.5 dBi @ 2.4GHz, 9 dBi @ 5GHz
VSWR typ
1.7 :1
VSWR, max
2.55 : 1
Polarization
dual pol - Vertical & Horizontal
3 dB Beam-Width, Azimuth, typ
360 degrees
3 dB Beam-Width, Elevation, typ
22° @ 2.4GHz, 11° @ 5GHz
Input power, max
10 Watt
Port to Port Isolation, typ
30 dB
Port to Port Isolation, min
25 dB @ 2.4GHz, 20 dB @ 5 GHz
Input Impedance
50 Ohm
Lightning Protection
DC Grounded
Dimensions (ØxH)
970 x 70 mm (38.2" x 2.75")
Weight
1.1 Kg.
Connector
4 x N-Type, Female
Radome
UV Protected Plastic
Mount
2 inch Pole Mount
Operating Temp Range
-40°C to +65°C
Wind Load
200 km/h (survival)
Vibration
According to IEC 60721-3-4
Flammability
UL94
Water Proofing
IP-65
Salt Fog
According to IEC 68-2-11
Humidity
ETS 300 019-1-4, EN 302 085 (annex A.1.1)
