Mercusys MA80XE (AX3000) Dual-Band WiFi 6 + Bluetooth 5.2 PCIe Wireless Adapter

PB Tech price
PB Tech price
$ 61 .25
 +GST
$ 70 .44
 inc GST
$61.25  +GST
$70.44

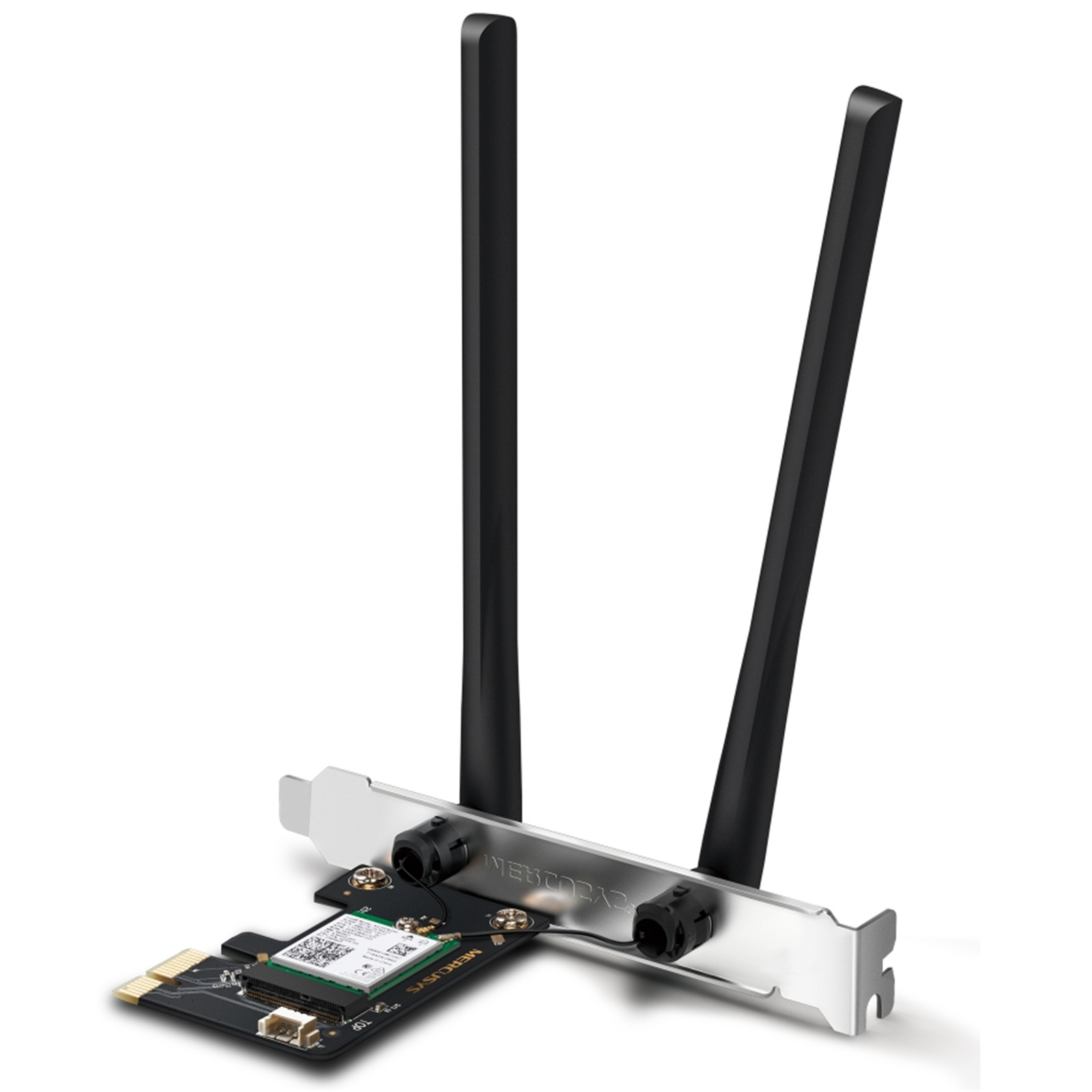

Mercusys MA80XE (AX3000) Dual-Band WiFi 6 + Bluetooth 5.2 PCIe Wireless Adapter

  • Brand: Mercusys
  • MPN: MA80XE
  • Part #: NETMES5630
  • UPC: 6957939000844
PB Tech price
$ 61 .25 $ 70 .44
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 20 May When will I receive it?
$61.25  +GST
$70.44

Four payments of $17.79 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Mercusys
  • MPN: MA80XE
  • Part #: NETMES5630
  • UPC: 6957939000844

Wireless Transmission Speed

3000Mbps

WiFi Bands

Dual

Interface

PCI-Express

Bluetooth

Bluetooth 5.2

WiFi

WiFi 6 (802.11ax)

What PB Tech customers are saying about this product...

See More Reviews

"Put it in my pc once it arrived thinking that’s all I had to do but I had to download drivers for it so I got my laptop out and downloaded them on a usb plugged it into my pc dow ...view more"

SN
By: SethN1 07/04/25
Verified Owner

Features

AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

- Unext-Gen Dual Band Speed -  Speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)1
- Better Experience - More devices, lower latency and less congestion2
- Wider Signal Coverage - Two high-performance antennas
- Improved Security - The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Intel® WiFi 6 Chipset - More stable and broader connections6
- Bluetooth 5.2 - The latest Bluetooth technology achieves faster speeds and broader coverage
- Backward Compatibility - Full support for 802.11ax/ac/a/b/g/n standards
- Windows Compatible - Supported operating system: Windows 10, 11 (64 bit)

Arm Your PC with WiFi 6

With 1024-QAM and 160 MHz of bandwidth, Wi-Fi 6 offers strong, uninterrupted Wi-Fi.2 Gaming requires lower latency while bandwidth-intensive applications like VR require fast speeds. Simply insert MA80XE to your PC for smoother experiences.

Lower Latency

Innovative OFDMA lowers latency by up to 75% to enable live streaming, nonstop video chatting, and ultra-responsive gaming.

Higher Performance for Variety Demands

With the very newest Wi-Fi standard, Wi-Fi 6, you can experience extremely quick downloads, lag-free streaming, and unbroken connectivity for more immersive gaming.

High-Gain Antennas for Broader Coverage

Two strong signal-booster high-gain antennas significantly increase the range of the currently available Wi-Fi, providing a quick, seamless online experience from a greater distance.

Bluetooth 5.2 Connect Everything

With ultra-fast Bluetooth 5.2, which outperforms Bluetooth 4 in terms of connection stability, range, and transmission speeds, MA80XE equips your PC with Bluetooth functionality. Simply pair your Bluetooth gadgets with your PC to start enjoying immediately.

Compatible with Windows Operating System

MA80XE fully supports for the latest Windows 11. Just simply upgrade your PC to the newest WiFi 6 by MA80XE.

The Latest WPA3 Protects Your Personal Network

The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.

Protect Against Brute-Force Attacks

Delivers robaust protection even when you are using a weak password

Advanced Forward Secrecy

Prevents data from being snooped even if a cracker compromises a session's secret keys

Unbreakable 128-Bit Encryption

Creates an active defense against security threats and intruders

Specifications

Wireless

Wireless Standards

IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz

Signal Rate

2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Reception Sensitivity

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions (W X D X H)

8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

Others

Package Contents

AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Manufacturer Part No:
MA80XE
Brand:
Mercusys
Product Type:
PCIe Wireless Adapter
UPC
6957939000844
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
NETMES5630
Product Model:
MA80XE
Warranty: Not applicable

Reviews

5 out of 5 Stars Based on 1 review
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Worth it

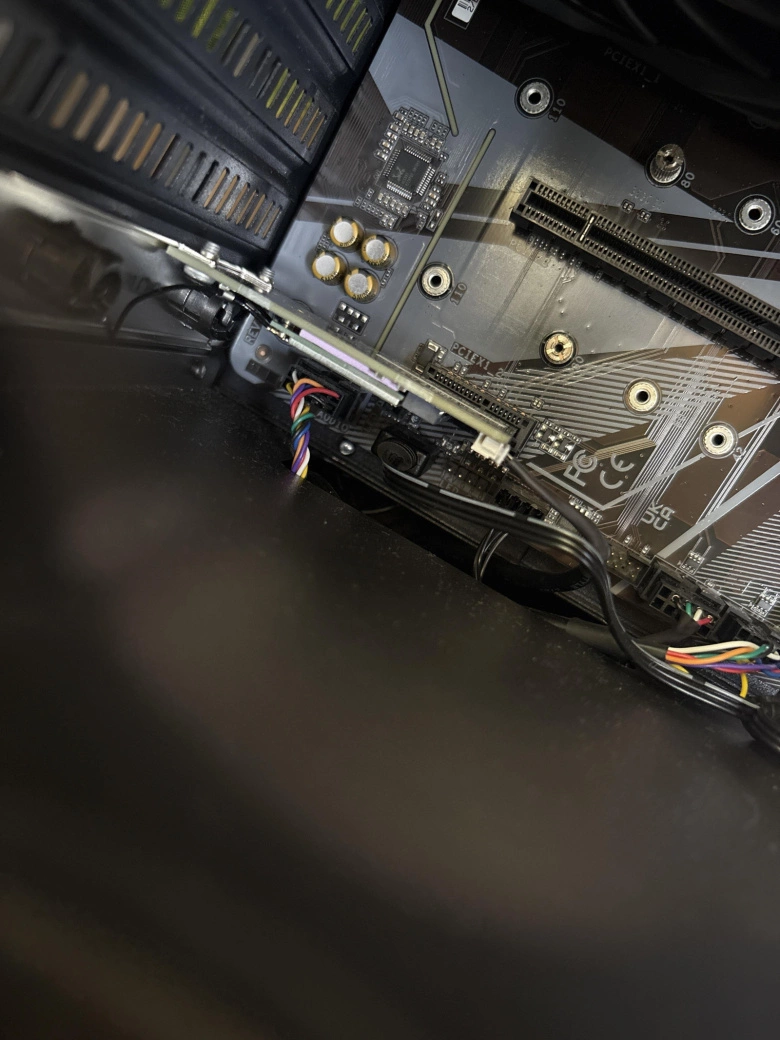

Put it in my pc once it arrived thinking that’s all I had to do but I had to download drivers for it so I got my laptop out and downloaded them on a usb plugged it into my pc download the wifi and Bluetooth drivers was a little annoying but in my opinion was worth it for the money so if your on a budget I’d highly recommend this wifi adapter gets my games downloaded in about just an hour for big games.
