Mercusys MA86XE (AXE5400) Tri-Band WiFi 6E + Bluetooth 5.3 PCIe Wireless Adapter

PB Tech price
PB Tech price
$ 56 .25
 +GST
$ 64 .69
 inc GST

Out of stock

Mercusys MA86XE (AXE5400) Tri-Band WiFi 6E + Bluetooth 5.3 PCIe Wireless Adapter

  • Brand: Mercusys
  • MPN: MA86XE
  • Part #: NETMES5654
  • UPC:
2
PB Tech price
$ 56 .25 $ 64 .69
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: Mercusys
  • MPN: MA86XE
  • Part #: NETMES5654
  • UPC:

Wireless Transmission Speed

5400Mbps

WiFi Bands

Triple

Interface

PCI-Express

Bluetooth

Bluetooth 5.3

WiFi

WiFi 6E (802.11ax)

What PB Tech customers are saying about this product...

See More Reviews

"Amazing wifi reliability"

TW
By: TobyW71 04/08/25
Verified Owner

"Easy to set up and connected and ran as soon as software updated 10/10"

SH
By: SteveH712 13/08/24
Verified Owner

Features

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

- Unstoppable Tri-Band Speed -  Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

- WiFi 6E Standard - Expand to the clearer, broader 6 GHz band

- Wider Signal Coverage - Two high-performance antennas

- Bluetooth 5.3 - The latest Bluetooth technology achieves faster speeds and broader coverage

- Improved Security - The latest security enhancement, WPA3, provides enhanced protection in personal password safety

- Backward Compatibility - Full support for 802.11ax/ac/a/b/g/n standards

- Windows Compatible - Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.

Please note: MA86XE is not compatible with the low-profile bracket because of the fixed antennas.

Upgrade Your WiFi to 6E

WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.‡

Unstoppable Speeds up to 5.4 Gbps

MA86XE arms your PC with Wi-Fi 6E technology and the brand-new 6 GHz band, unlocking your Wi-Fi 6E router's full potential. Experience the unblocked network on the exclusive band to Wi-Fi 6E devices, which prevents drops in speed and interference from legacy devices.†‡

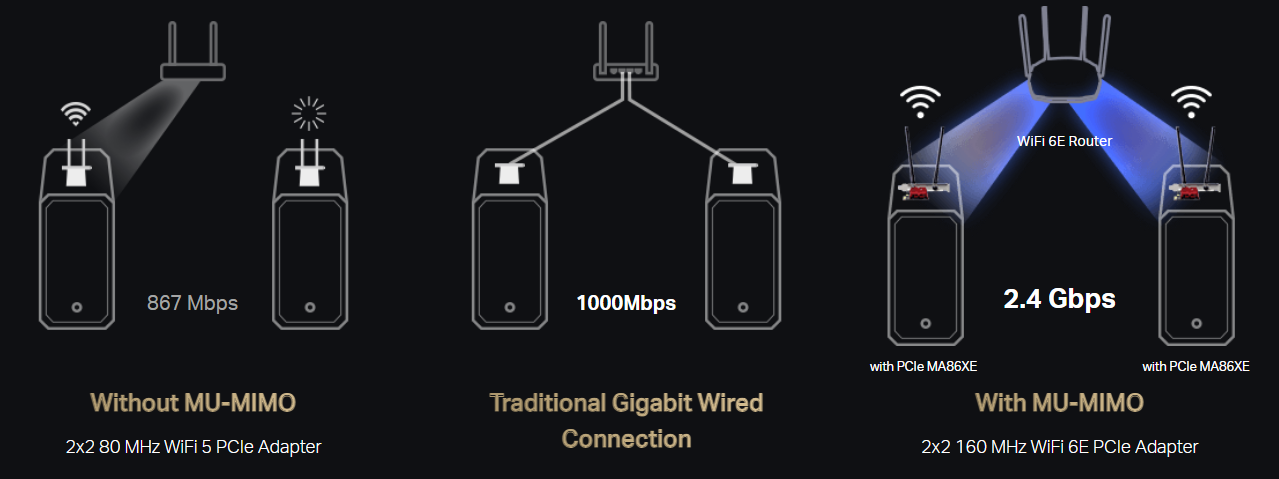

Super Fast WiFi Reception

By combining OFDMA and MU-MIMO, MA86XE brings your PC's WiFi reception to the next level. This ensures the efficiency of your PC's WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.‡

Lower Latency, Higher Experiences

Equipped with WiFi 6E, MA86XE brings a ultra low latency to achieve incredibly smooth real time gaming or immersive VR experiences.

Strong WiFi 6E Chipset

Combined with a powerful Wi-Fi 6E chipset, MA86XE maximizes sppeds, latency and reliability benefits of Wi-Fi 6 across new radio frequencies free from legacy device interference. You can dramatically improve your connected experience at home, work, or on the go.

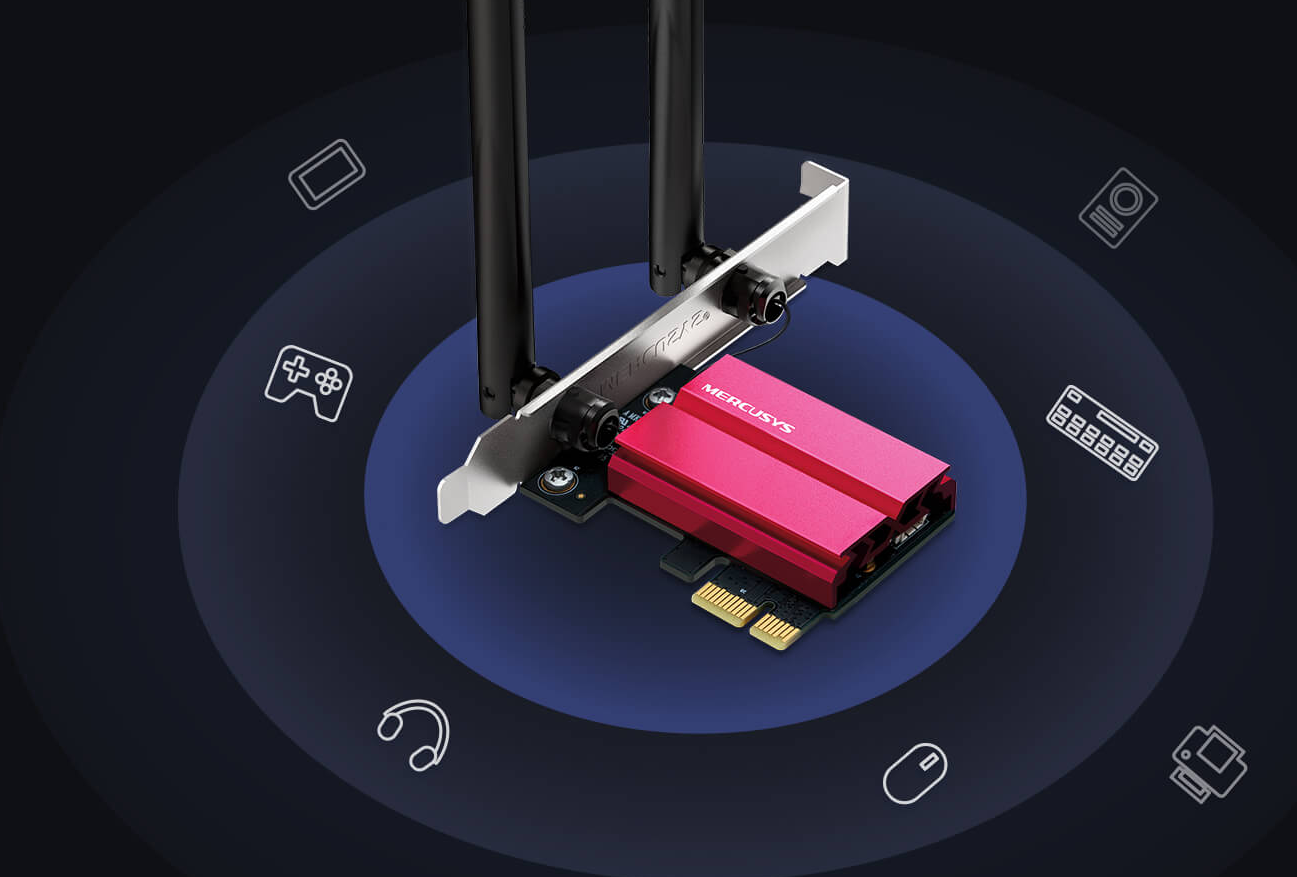

Bluetooth 5.3 Connect Everything

MA86XE makes your PC Bluetooth-capable with ultra-fast Bluetooth 5.3 which achieves more stable connection, farther range and faster transmission speeds than Bluetooth 4. Just connect your Bluetooth devices to your computer and enjoy with ease.*

The Latest WPA3 Protects Your Personal Network

The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.**

Protect Against Brute-Force Attacks

Delivers robaust protection even when you are using a weak password

Advanced Forward Secrecy

Prevents data from being snooped even if a cracker compromises a session's secret keys

Unbreakable 128-Bit Encryption

Creates an active defense against security threats and intruders

Specifications

Wireless

Wireless Standards

IEEE 802.11 a/n/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds

2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Reception Sensitivity

6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions

930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

Others

Package Contents

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter (MA86XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Manufacturer Part No:
MA86XE
Brand:
Mercusys
Product Type:
PCIe Wireless Adapter
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
NETMES5654
Product Model:
MA86XE
Warranty: Not applicable
