MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

PB Tech price
PB Tech price
$ 93 .91
 +GST
$ 108 .00
 inc GST
$93.91  +GST
$108.00

MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

  • Brand: MikroTik
  • MPN: RBmAP2nD
  • Part #: NETMKT1232
  • UPC:
1
PB Tech price
$ 93 .91 $ 108 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 04 Feb When will I receive it?
$93.91  +GST
$108.00

Four payments of $27.27 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: MikroTik
  • MPN: RBmAP2nD
  • Part #: NETMKT1232
  • UPC:

Ethernet Ports

2

USB Ports

1

WiFi Bands

Not Specified

Wireless Technology

WiFi 4 (802.11n)

Wireless Transmission Speed

Not Specified

Similar in-stock products available at PB Tech right now

What PB Tech customers are saying about this product...

See More Reviews

"I've had one of these for a long time now configured in transparent bridge mode and I would say it's the most reliable access point I've ever used. Previous APs I've owned always s ...view more"

RH
By: RickH28 22/04/21
Verified Owner

Features

mAP

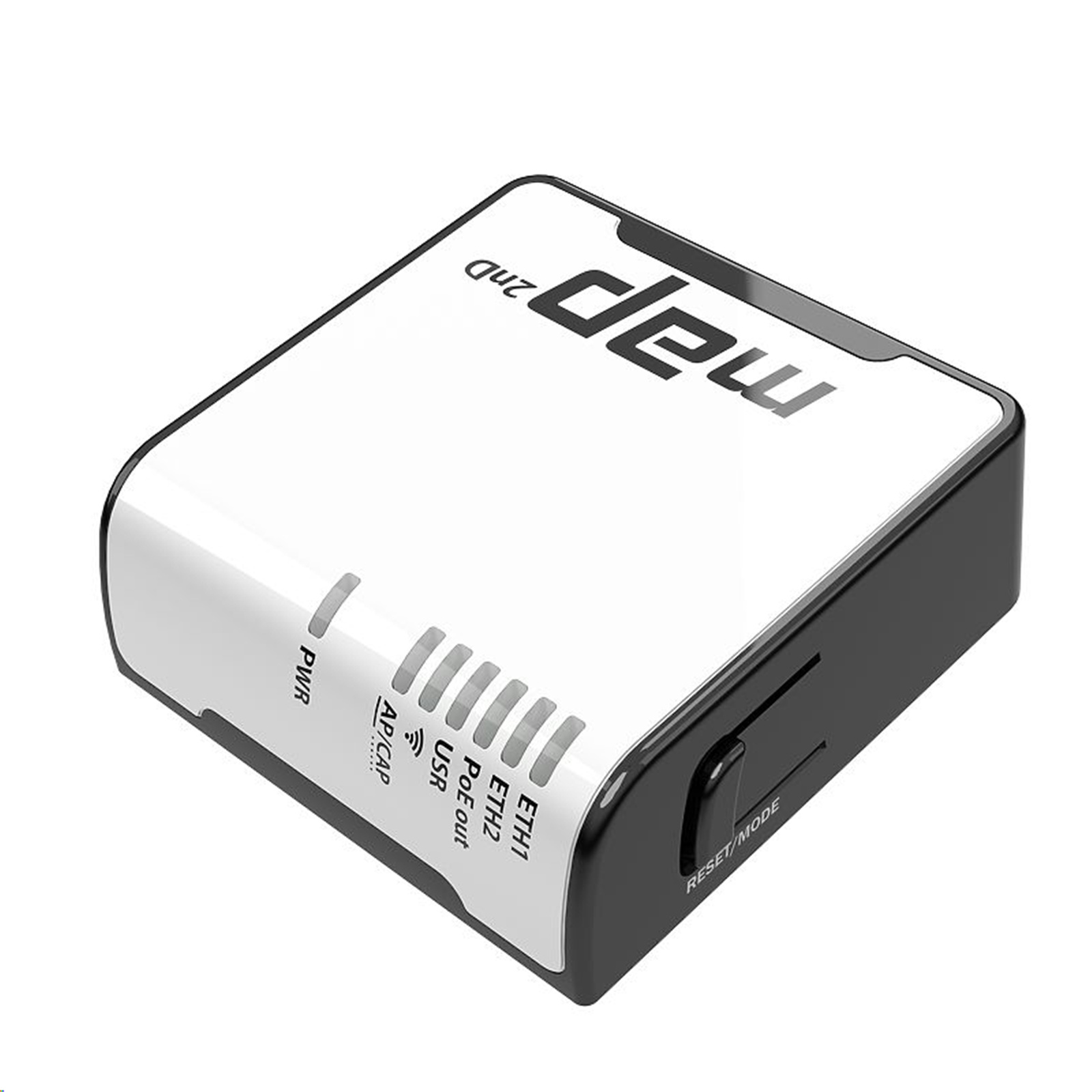

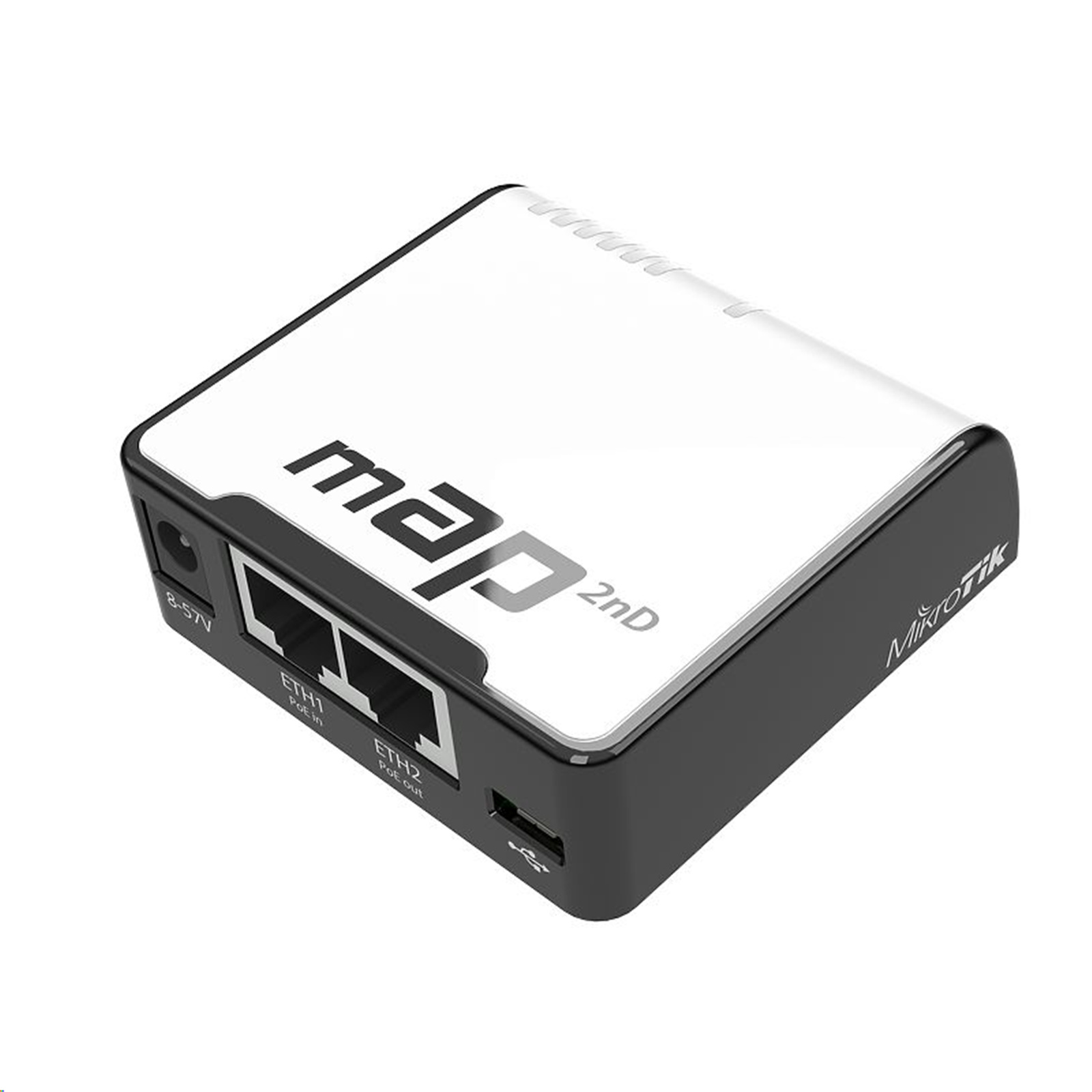

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Specifications

CPU nominal frequency
650 MHz

CPU core count
1

Size of RAM
64 MB

10/100 Ethernet ports
2

Wireless standards
802.11b/g/n

Wireless chip model
QCA9531

Number of USB ports
1

Power Jack
1

802.3af support
 no

PoE out
Yes

Supported input voltage
11 V - 57 V

PoE in
802.3af/at

Voltage Monitor
Yes

PCB temperature monitor
Yes

Dimensions
68x68x19mm

Operating System
RouterOS

Tested ambient temperature
-10C to +70C tested

License level
4

Antenna gain DBI
1.2

CPU
QCA9531

Max Power consumption
5W

USB slot type
microUSB type AB

USB Power Reset
Yes

Number of chains
2

Storage type
FLASH

Storage size
16 MB
Manufacturer Part No:
RBmAP2nD
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
NETMKT1232
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
