Features

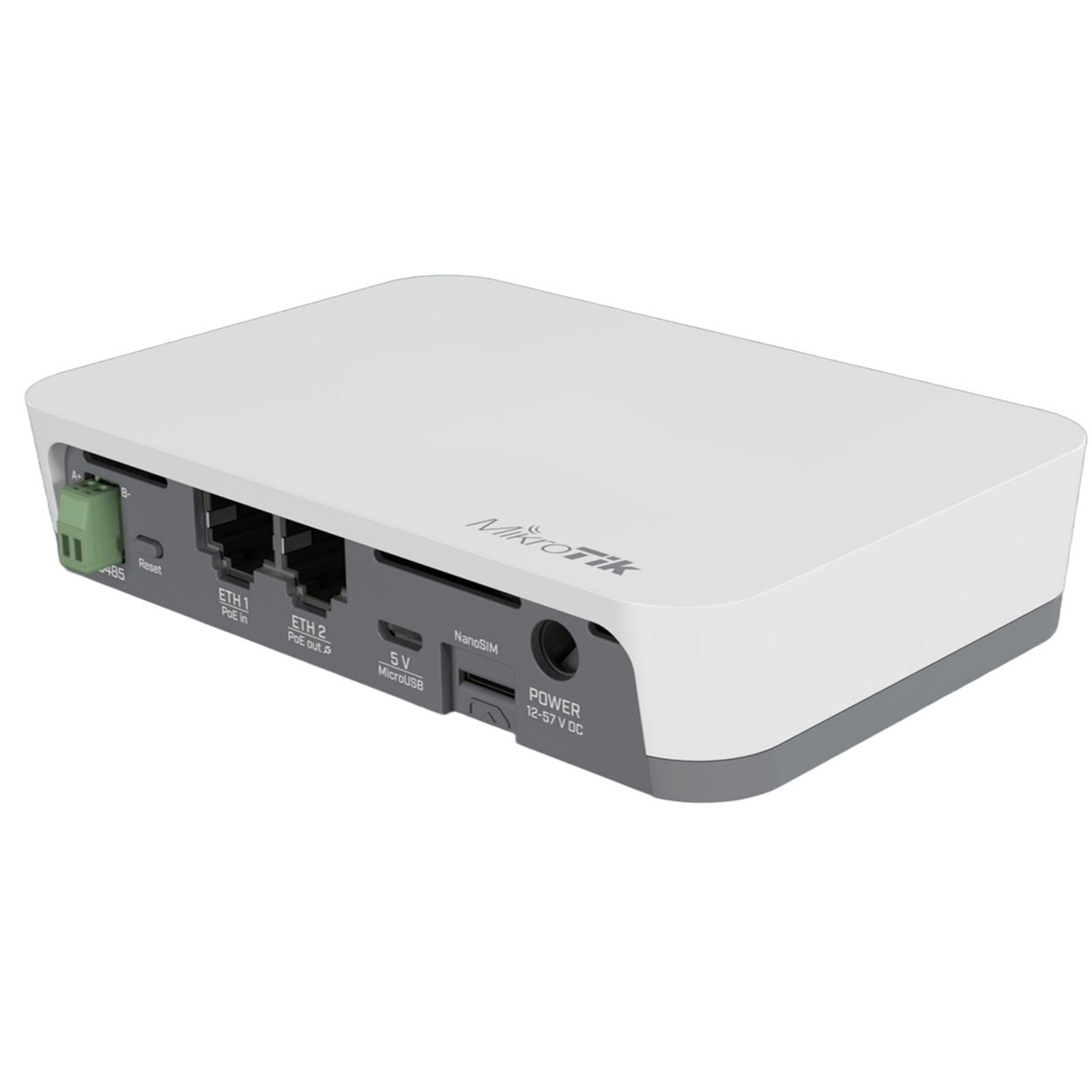

MikroTik KNOT IoT Gateway RB924i-2nD-BT5&BG77
KNOT - is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M1 technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don't need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.
KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

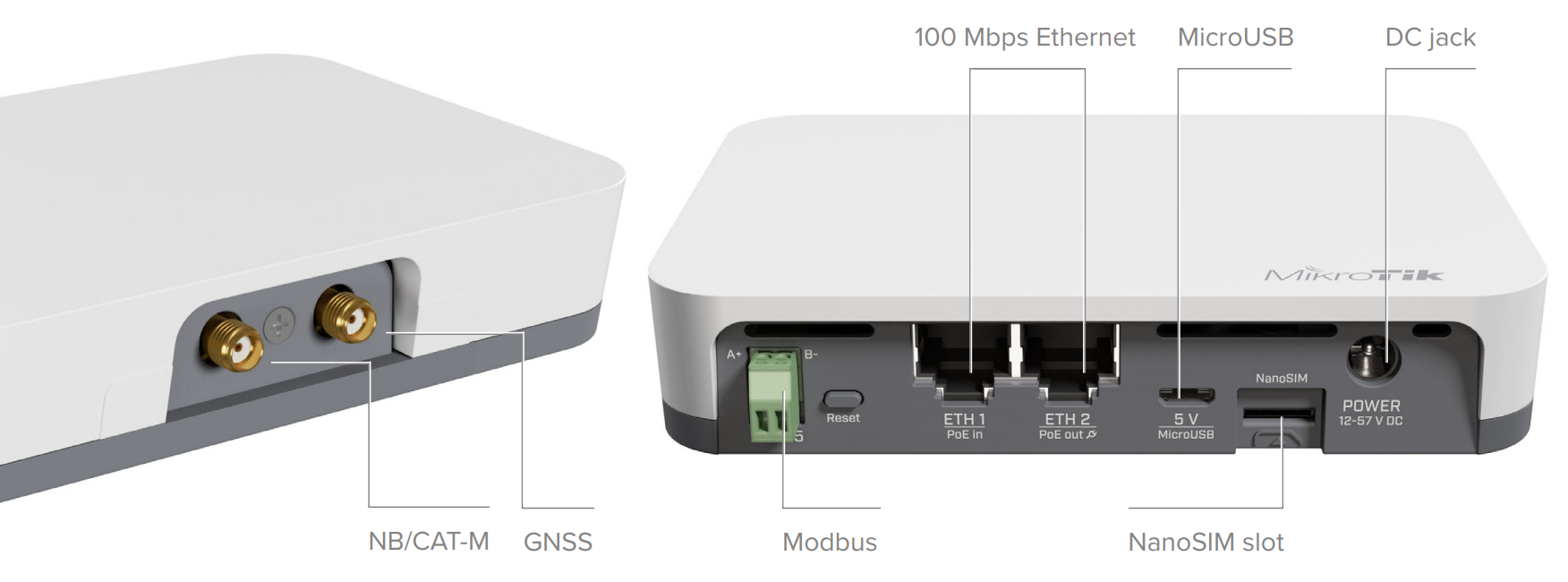

- CAT-M1 and CAT-NB2 technology
- 802.11bgn Wi-Fi
- Bluetooth 2x 100 Mbps
- PoE-in & PoE-out
- MicroUSB, GNSS, GPIO and RS485/Modbus
Specifications
Brand
MikroTik
MPN
RB924i-2nD-BT5&BG77
Cat M1: LTE FDD
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: LTE FDD
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Region
Global
GNSS (Optional)
GPS/GLONASS/BeiDou/Galileo/QZSS
CPU
QCA9531 650 MHz
Number of 100 Mbps Ethernet ports
2
Number of 100 Mbps Ethernet ports with PoE-out
1
Size of RAM
64 MB
Storage
16 MB flash
Wireless
2.4 GHz 802.11 b/g/n dual-chain
Antenna gain
1.5 dBi
Bluetooth antenna gain
2 dBi
Antenna beam width
360°
Bluetooth Version
5.2
Dimensions
122 x 87 x 26 mm
Operating system
RouterOS, License level 4
USB port
1 microUSB port type AB
SIM slots
1 Nano SIM
Built-in GPS
Yes (GPS, GLONASS, BeiDou, Galileo)
Bluetooth RF connector type
uUFL
GPS RF connector type
SMA
Operating temperature
-40°C to +70°C
PoE-in input Voltage
12-57 V
Number of DC inputs
3 (PoE-in, DC jack, MicroUSB)
Supported input Voltage
12-57 V (PoE-in. DC jack), 5 V (MicroUSB)
PoE-out
802.3af/at
PoE-out ports
1 (Ether2)
PCB temperature monitor
Yes
Power adapter nominal voltage
24 V
Power adapter nominal current
1.2 A
Max power consumption (without attachments)
5 W
Max power consumption
18 W
Certification
Bluetooth, CE, FCC, IC
