Features

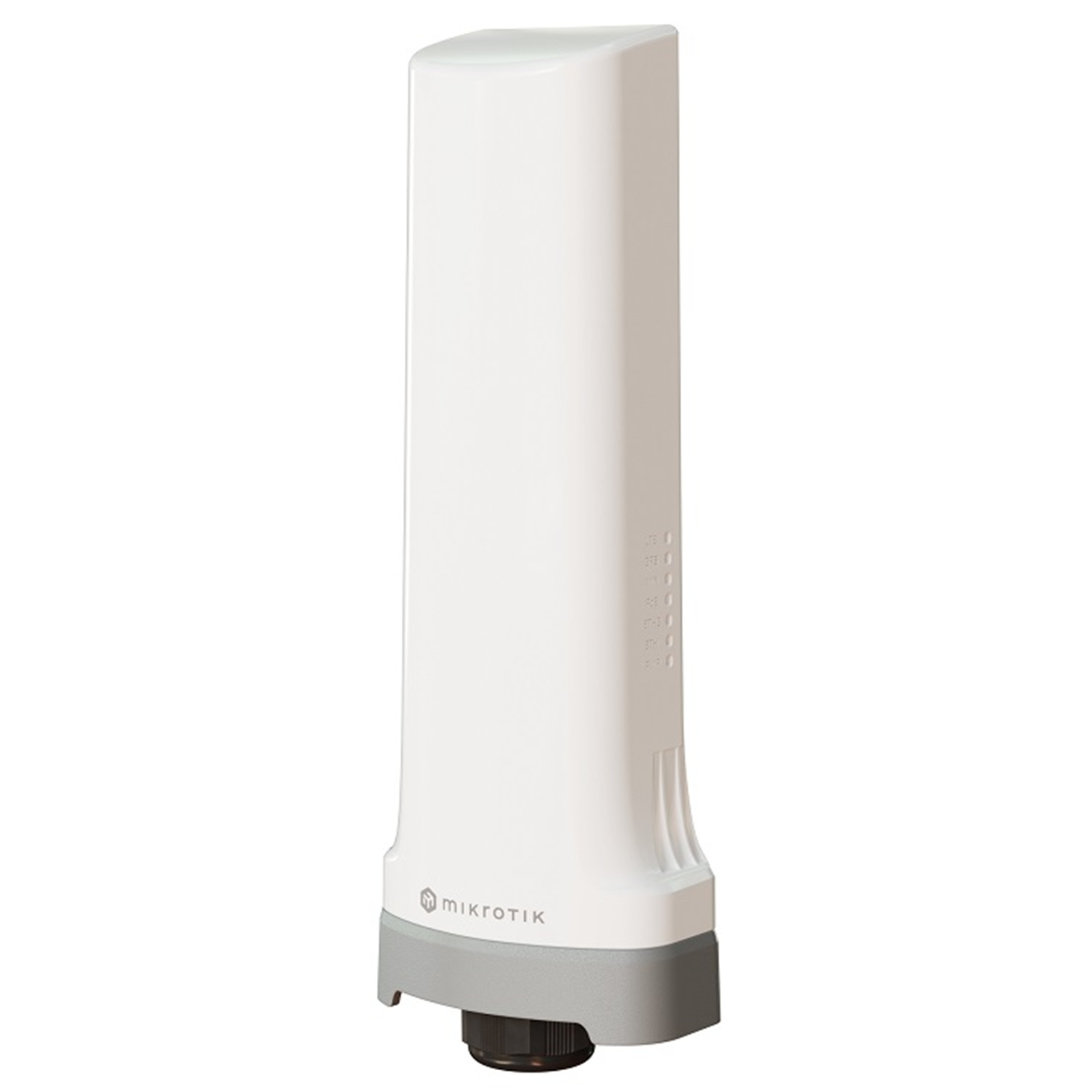

MikroTik CME Gateway (CME22-2n-BG77). A rugged low-cost, low-bandwidth modem to connect Ethernet devices to CAT-M mobile network... on the tightest budget ever!

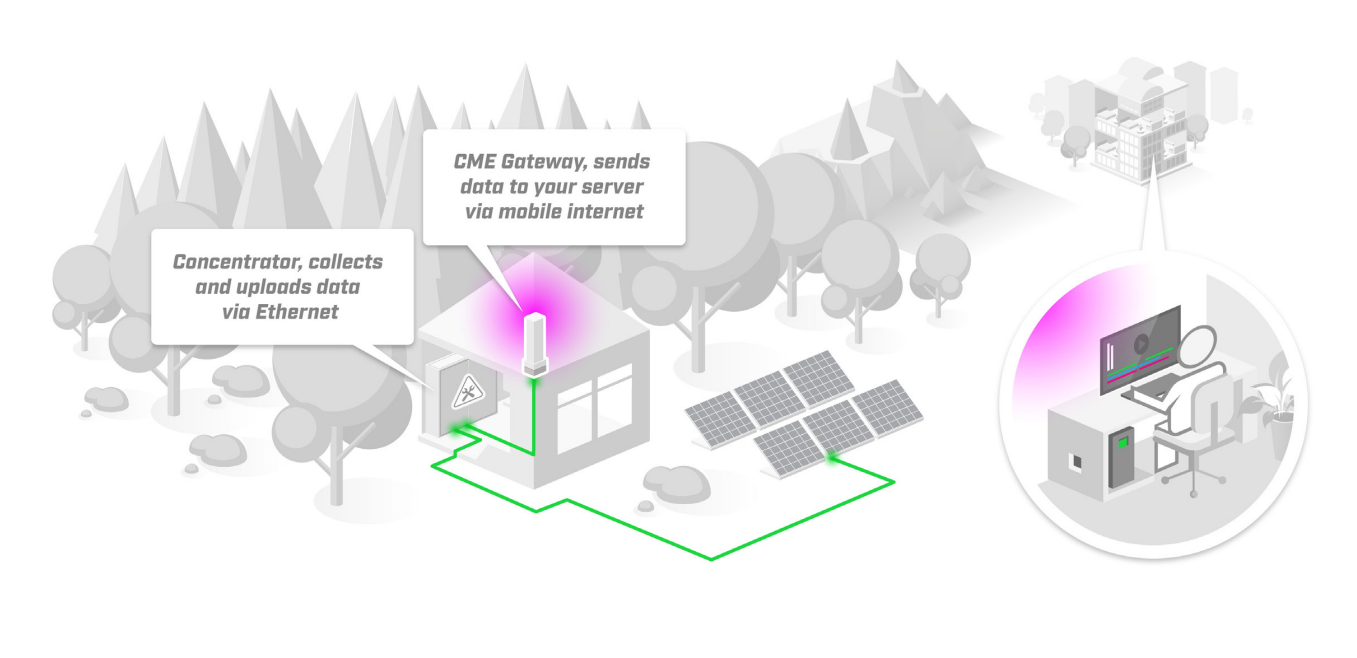

Are you tired of wired sensor limitations? Wouldn't it be nice if legacy devices - like electricity meters - could send their data over the mobile network, like our phones do? With CME Gateway you can achieve just that - and more!
It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won't be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

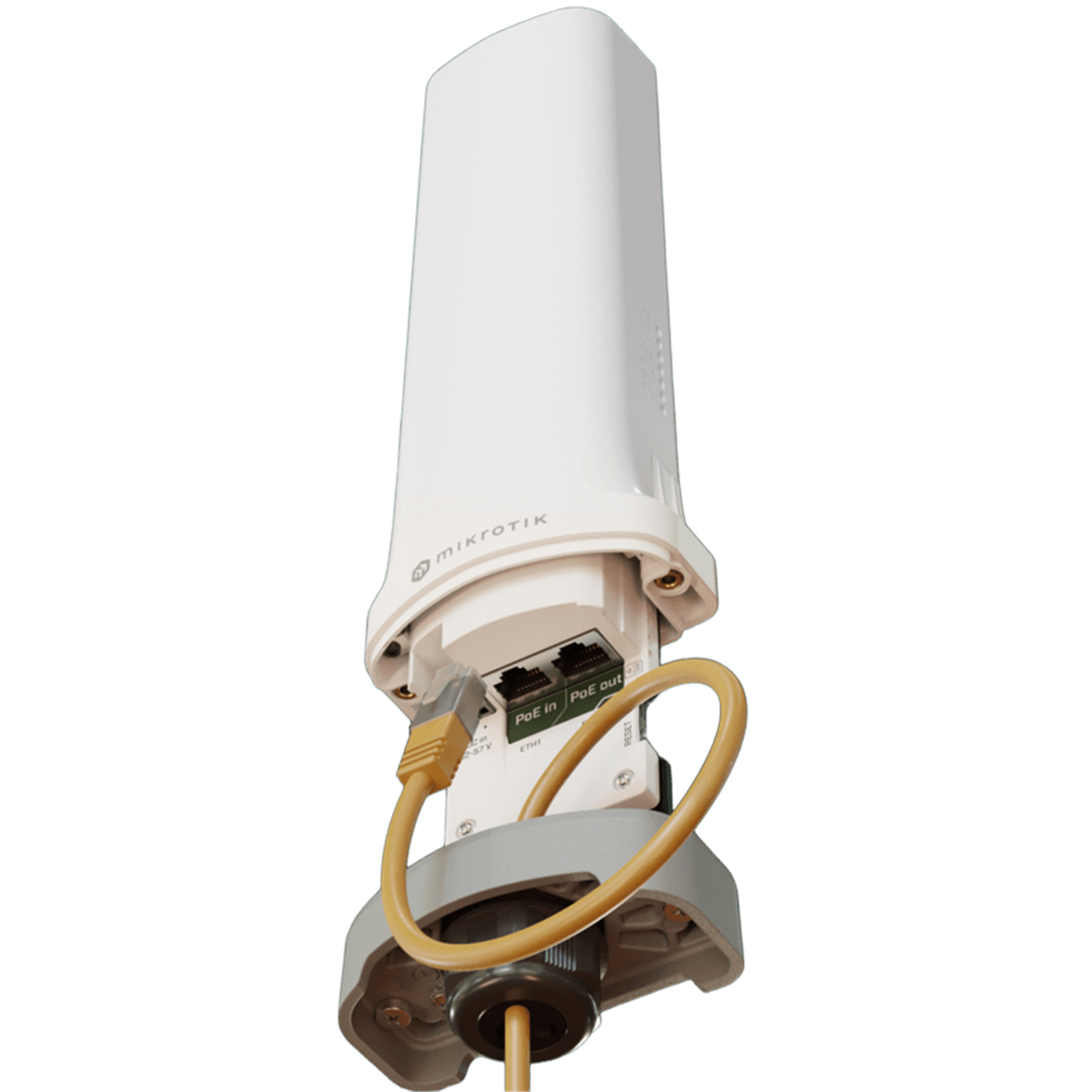

With the IP66 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - we've added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.
Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!
Specifications
MPN
CME22-2n-BG77
CPU
QCA9531-BL3A-R 650 MHz
CPU architecture
MIPSBE
CPU core count
1
Size of RAM
64 MB
RAM type
DDR2
Storage
16 MB, Flash
Number of 100M Ethernet ports
2
Switch chip model
QCA9531
Wireless interface model
QCA9531-BL3A-R (2.4 GHz)
Wireless
802.11b/g/n
Antenna gain
2 dBi
GNSS interface model
BG77
GNSS standard
BeiDou, Galileo, GPS, Glonass
Antenna gain (GNSS)
3.9 dB
IoT modem
BG77
Cat NB type
Cat NB2
Cat NB band
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71
Cat M type
Cat M1
Cat M band
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66
Dimensions
253 x 88 x 60 mm
Operating system
RouterOS v7, License level 4
Operating temparature
-40°C to +70°C
Number of DC inputs
2 (PoE-In, 2-pin terminal)
PoE-In input Voltage
18-57 V
Max current at Min voltage
0.78 A
Max current at Max voltage
0.53 A
2-pin terminal input Voltage
12-57 V
Max current at Min voltage
0.893 A
Max current at Max voltage
0.53 A
Power adapter nominal voltage
48 V
Power adapter nominal current
0.95 A
PoE-In
802.3af/at
PoE-Out
802.3af/at
PoE-out ports
Ether 2, max out per port output (input < 30 V) 600 mA, max out per port output (input > 30 V) 450 mA
Max total out
0.6 A
Max power consumption without attachments
6 W
Max power consumption
31 W
