MikroTik Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS
MikroTik Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS
- Brand: MikroTik
- MPN: LtAP-2HnD&FG621-EA
- Part #: NETMKT1490
- UPC:
- Brand: MikroTik
- MPN: LtAP-2HnD&FG621-EA
- Part #: NETMKT1490
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Outdoor Access Points





MikroTik Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS
- Brand: MikroTik
- MPN: LtAP-2HnD&FG621-EA
- Part #: NETMKT1490

Product URL: https://www.pbtech.co.nz/product/NETMKT1490/MikroTik-Compact-Heavy-Duty-4G-LTE-Band-28-with-24
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

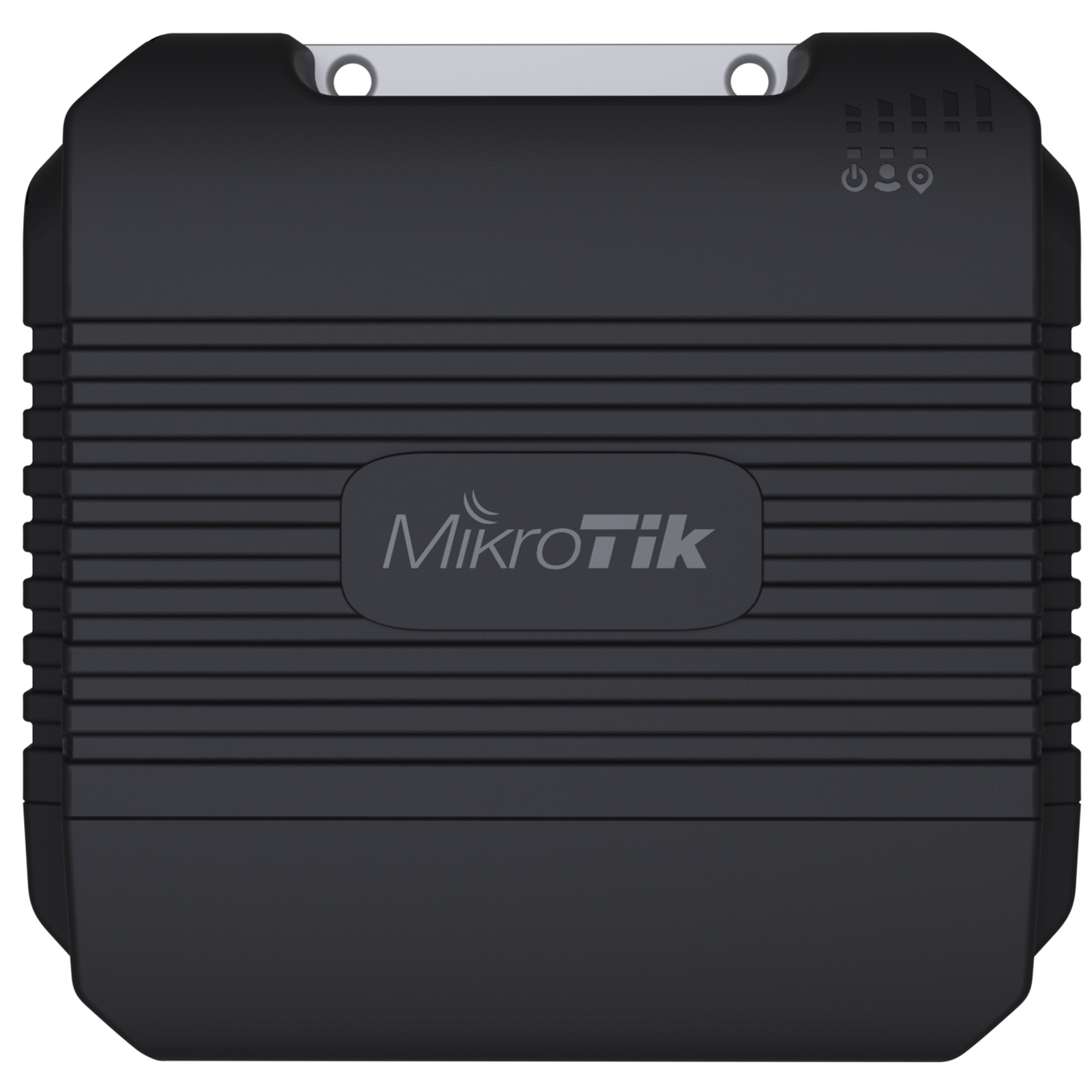

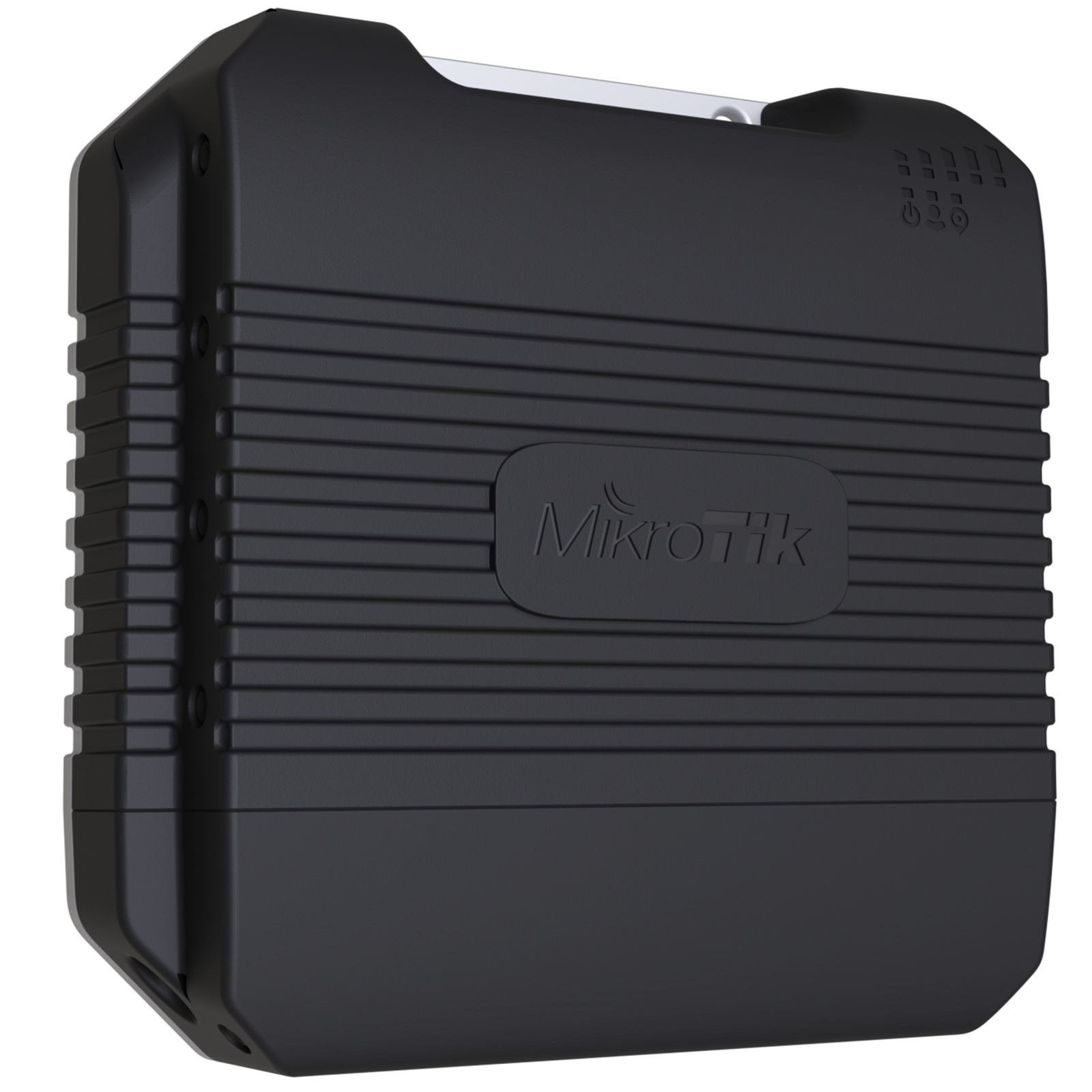

MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS. In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.
The unit comes with two miniPCIe slots, offering many expansion options. For example, you can install an LTE modem of your choice for LTE backup and 5GHz interface to have a dual concurrent 2.4 GHz / 5GHz AP + LTE.

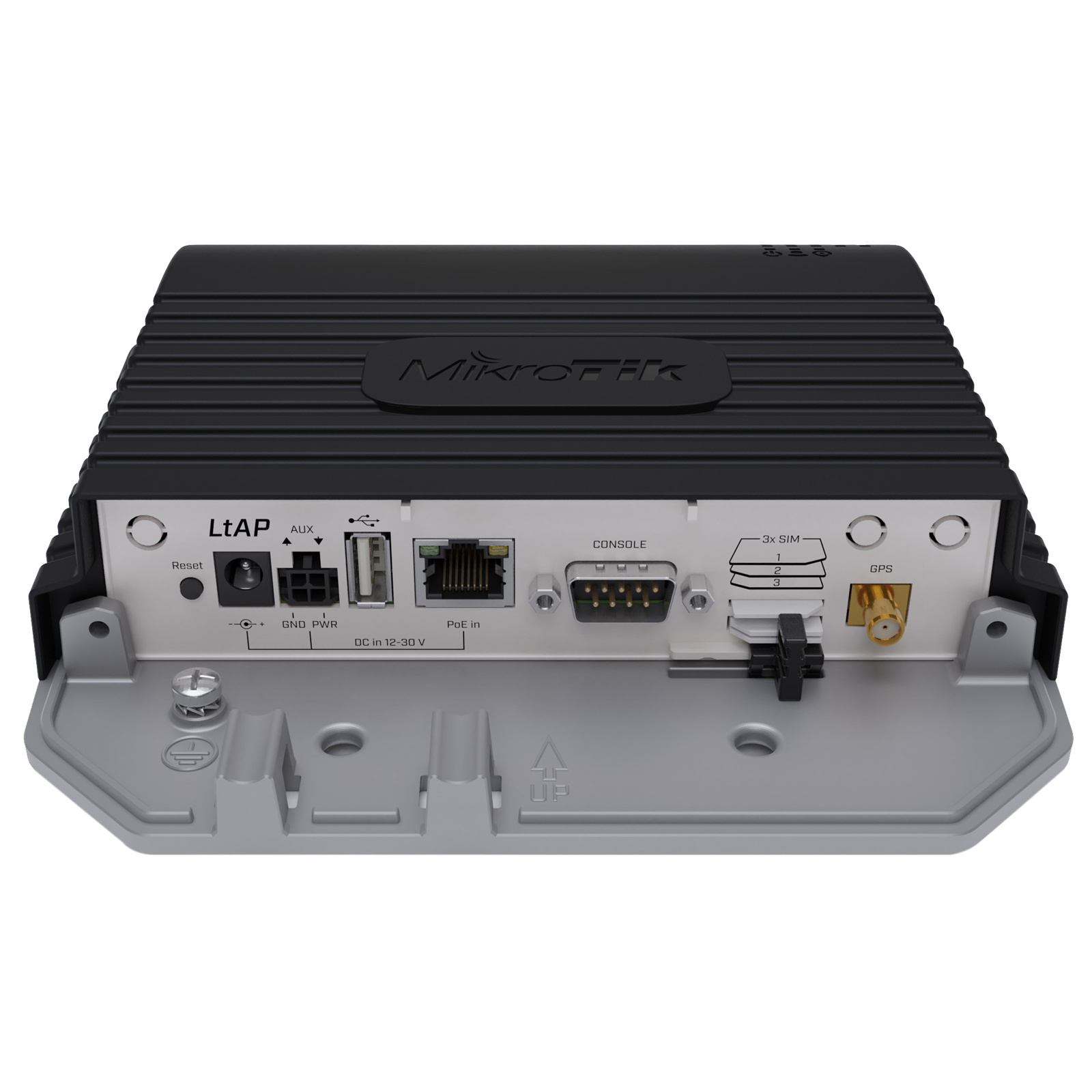

The LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environments. LtAP can handle any temperature from -40 C?° to +70 C?°. It is a perfect solution for tracking vehicles in real time. MikroTik have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saving your time and money worldwide!
Specifications
Brand
MikroTik
MPN
LtAP-2HnD&FG621-EA
Architecture
MMIPS
CPU
MT7621AT
CPU nominal frequency
880 MHz
CPU core count
2
License level
4
Operating System
RouterOS v7
Size of RAM
128 MB
Storage size
16 MB (FLASH)
Tested ambient temperature
-40°C to 70°C
LTE Category
6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL
2x2
MIMO UL
1x1
LTE FDD bands
8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
LTE TDD bands
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
2.5dBi
PoE in
Passive PoE
DC input Voltage
12-30 V
Number of DC inputs
3 (DC jack, PoE-IN, Automotive)
Max power consumption
24 W
Max power consumption without attachments
12 W
10/100/1000 Ethernet ports
1
Number of SIM slots
3 Modem (Mini SIM)
MiniPCI-e slots
2
Serial port
RS232
Number of USB ports
1 (Type A)
Max USB current
1A
PCB temperature monitor
Yes
Voltage Monitor
Yes
GNSS standards
GPS
Certification
CE, E-MARK, EAC, ROHS
IP
54
