MikroTik wAPGR-5HacD2HnD EC200A-EU wAP AC LTE Kit Outdoor Wi-Fi Access Point with EC200 Cat4 Modem
MikroTik wAPGR-5HacD2HnD EC200A-EU wAP AC LTE Kit Outdoor Wi-Fi Access Point with EC200 Cat4 Modem
- Brand: MikroTik
- MPN: wAPGR-5HacD2HnD_EC200A-EU
- Part #: NETMKT1498
- UPC:
- Brand: MikroTik
- MPN: wAPGR-5HacD2HnD_EC200A-EU
- Part #: NETMKT1498
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Outdoor Access Points
MikroTik wAPGR-5HacD2HnD EC200A-EU wAP AC LTE Kit Outdoor Wi-Fi Access Point with EC200 Cat4 Modem
- Brand: MikroTik
- MPN: wAPGR-5HacD2HnD_EC200A-EU
- Part #: NETMKT1498
Product URL: https://www.pbtech.co.nz/product/NETMKT1498/MikroTik-wAPGR-5HacD2HnD-EC200A-EU-wAP-AC-LTE-Kit
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
The wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band.

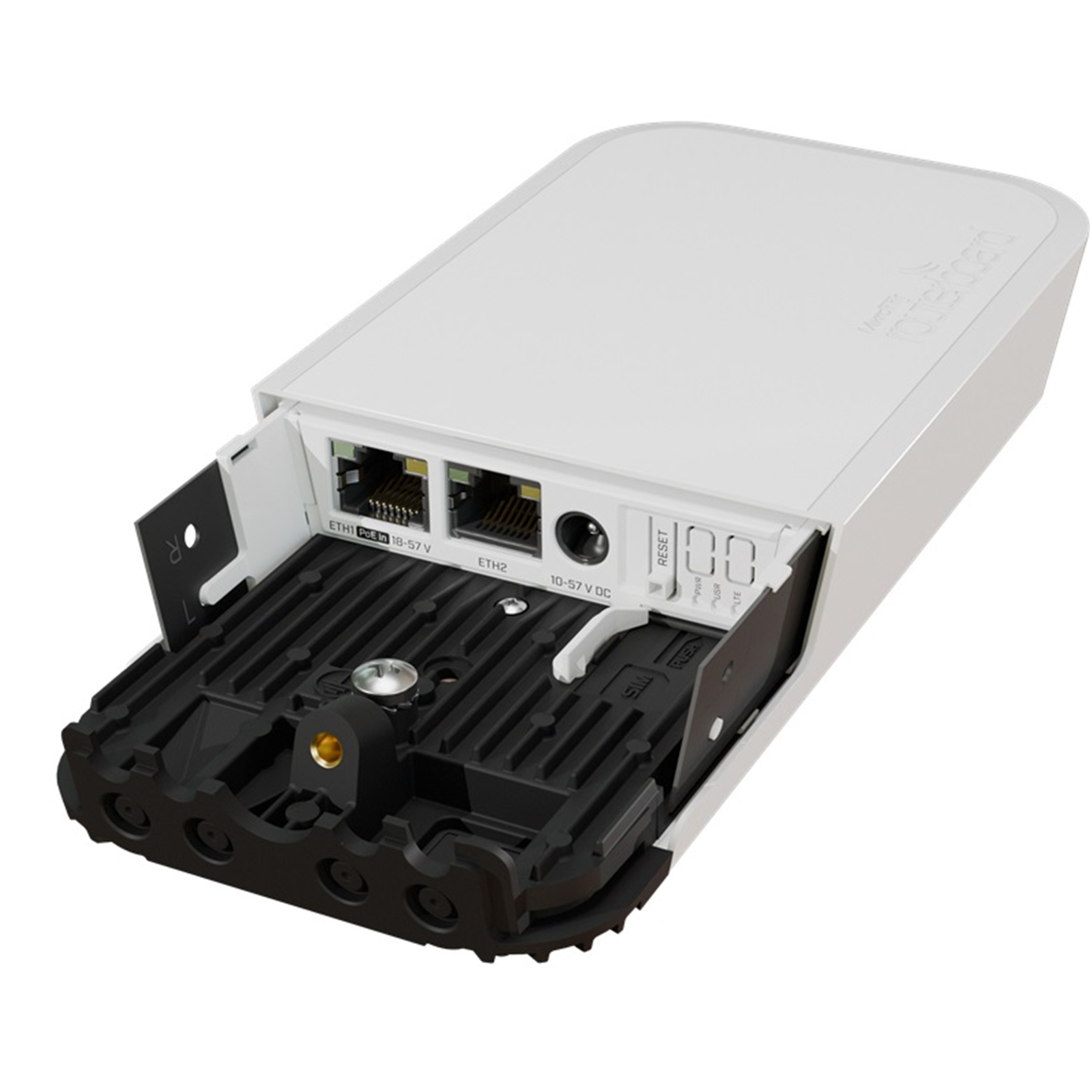

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case - for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.
There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
- RouterOS V7
- Extensive LTE Band Support
- Durable and Compact Outdoor Enclosure
- Micro-SIM Slot
- 2 x Gigabit Ethernet
Specifications
MPN
wAPGR-5HacD2HnD_EC200A-EU
Architecture
ARM 32bit
CPU
IPQ-4018
CPU core count
4
CPU nominal frequency
auto MHz
Switch chip model
IPQ-4018
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
128 MB
Storage size
16 MB
Storage type
FLASH
Wireless Standards
2.4GHz: 802.11b/g/n, 5GHz: 802.11a/n/ac
10/100/1000 Ethernet ports
2
Number of SIM slots
1 Modem (Micro SIM)
MiniPCI-e slots
1
PCB temperature monitor
Yes
Voltage Monitor
Yes
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-30°C to 60°C
IPsec hardware acceleration
Yes
LTE Category
4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands
20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands
40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC
86314105
Number of DC inputs
2 (PoE-IN, DC jack)
DC jack input Voltage
10-57 V
Max power consumption
12 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
18-57 V
Package Contents
24V 0.8A power adapter, K-52 fastening set, Gigabit PoE injector, K-50 locking set, wAP desktop stand, wAP ceiling mount bracket, wAP mount, Hose clamp
