MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU
MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU
- Brand: MikroTik
- MPN: wAPR-2nD&EC200A-EU
- Part #: NETMKT1499
- UPC:
- Brand: MikroTik
- MPN: wAPR-2nD&EC200A-EU
- Part #: NETMKT1499
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Outdoor Access Points





MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU
- Brand: MikroTik
- MPN: wAPR-2nD&EC200A-EU
- Part #: NETMKT1499

Product URL: https://www.pbtech.co.nz/product/NETMKT1499/MikroTik-wAPR-2nDEC200A-EU-wAP-LTE-Kit-4G-LTE-Outd
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

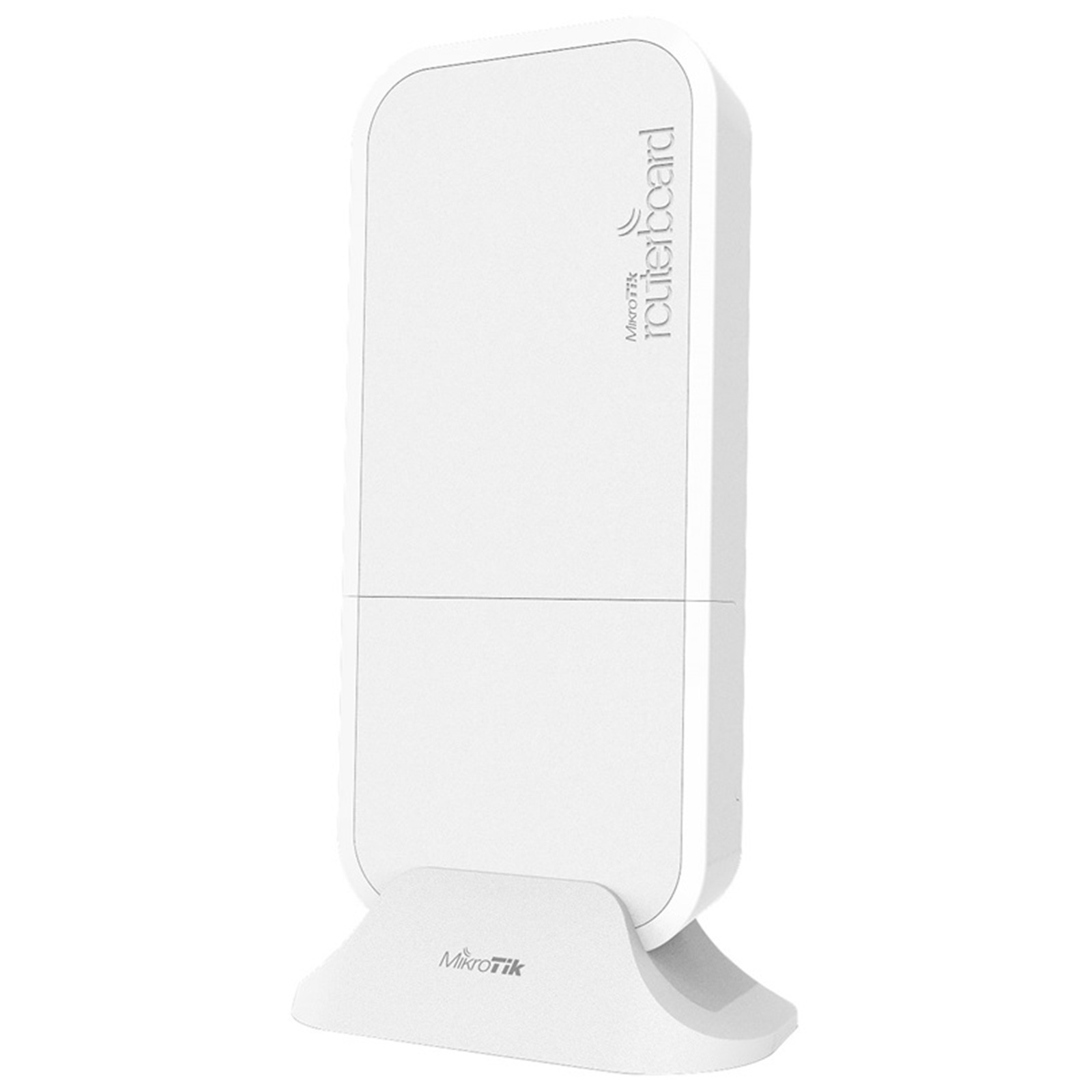

MikroTik wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU. wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there's also a standard DC jack and an automotive plug.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band.
wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case - for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Specifications
MPN
wAPR-2nD&EC200A-EU
Architecture
MIPSBE
CPU
QCA9531
CPU core count
1
CPU nominal frequency
650 MHz
LTE Category
4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands
20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands
40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
2
10/100 Ethernet ports
1
Number of SIM slots
1 Modem (Mini SIM)
MiniPCI-e slots
1
PCB temperature monitor
Yes
Voltage Monitor
Ye
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 60°C
Number of DC inputs
3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage
9-30 V DC
Automotive input Voltage
9-30 V DC
Max power consumption
7 W
Cooling type
Passive
PoE in
Passive PoE, 9 - 30 V DC
Certification
CE, E-MARK, EAC, ROHS
IP
54
