Features
netPower Lite 8P
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger - because your CCTV cameras and access points deserve true off-the-grid resilience.
- 8× Gigabit Ethernet
- 802.3af/at PoE-Out
- 2× 10G SFP+ uplinks
- 24-57 V DC input
- 120 W total PoE-Out
- Integrated UPS switchover
- Built-in smart battery charger
- Temperature sensor included
Power cuts shouldn't mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery - and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite - fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24-57 V DC into the 2-pin terminal.

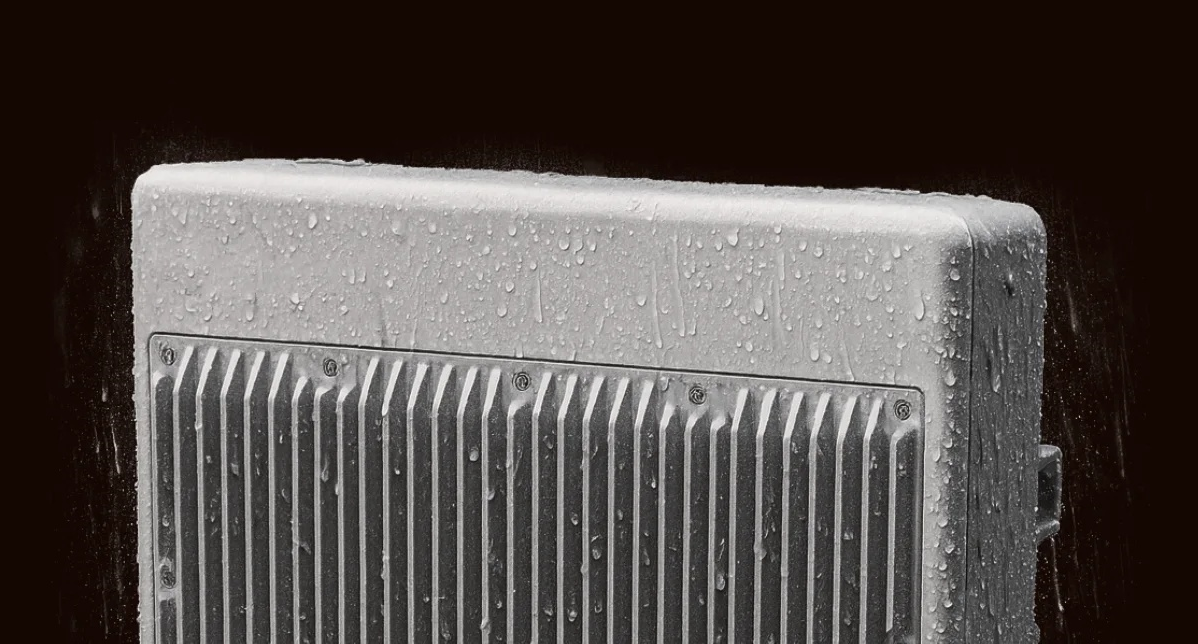

Just like other outdoor-friendly gear, this switch is built to endure. With an operating range of -40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically - charging slows down first to keep your essential devices online.

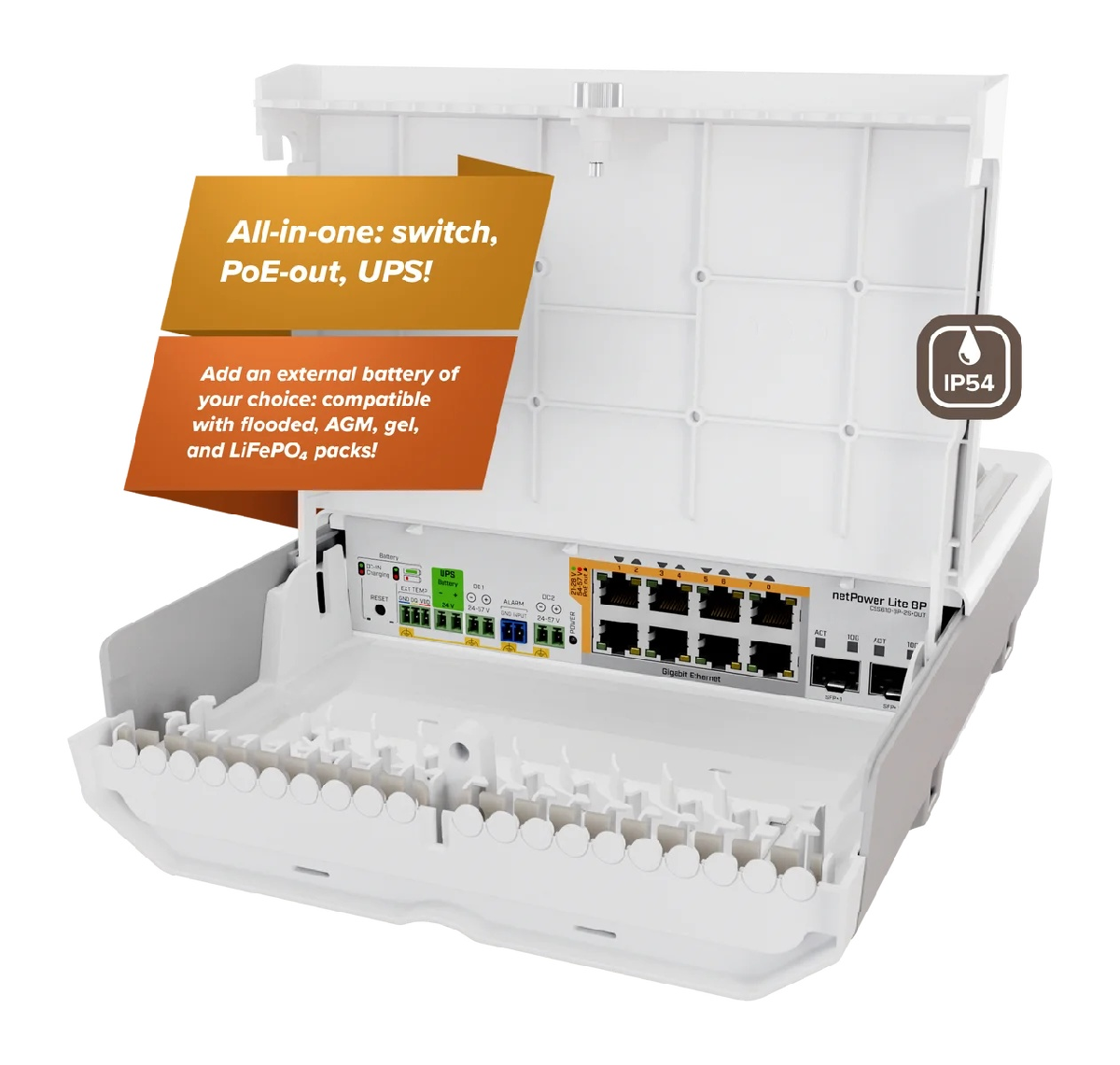

Built-in UPS support: effective, reliable, gives you options
Connect a 24 V nominal battery - typically two 12 V units in series - and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.

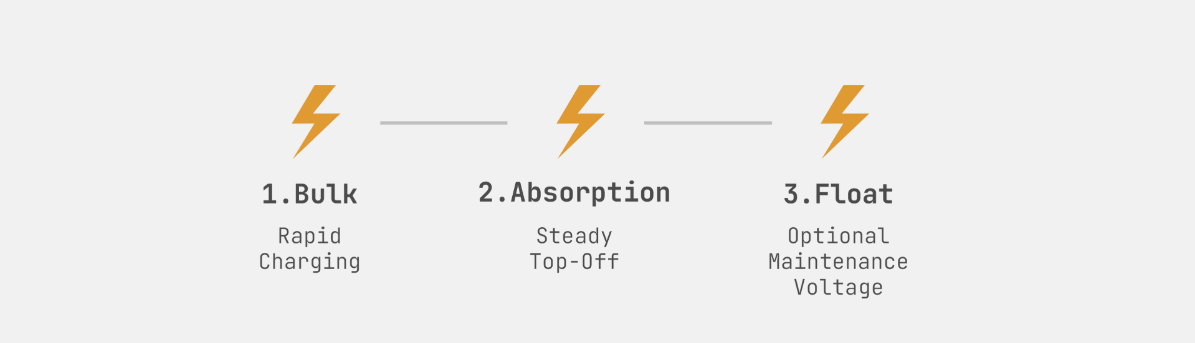

Charging is handled intelligently through three stages:
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.

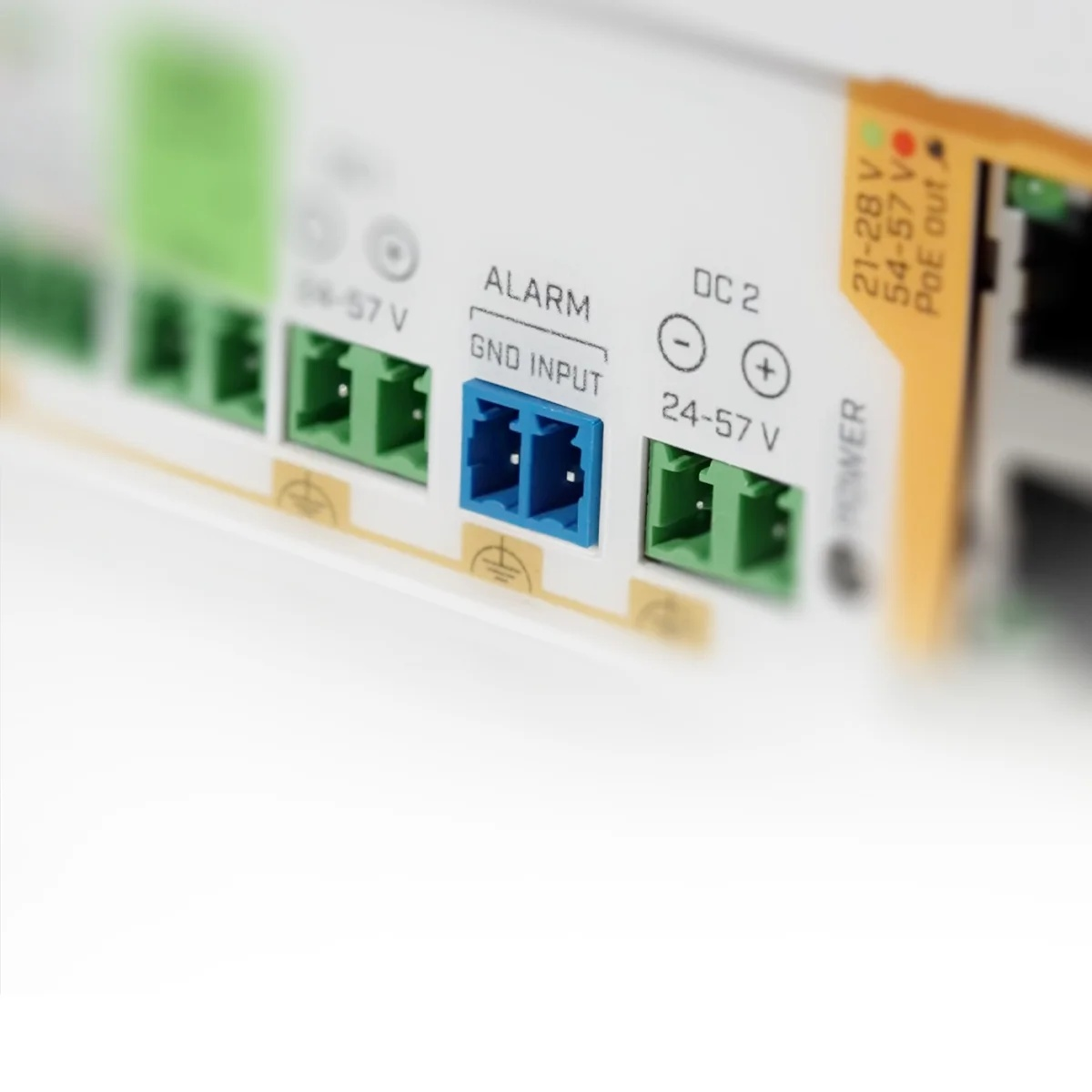

Alarm input
Connect a simple 2-wire contact to detect tampering, and the device will report it instantly in SwOS Lite and over SNMP. You can pair it with a RouterOS device for additional automation or creative scripting triggers.

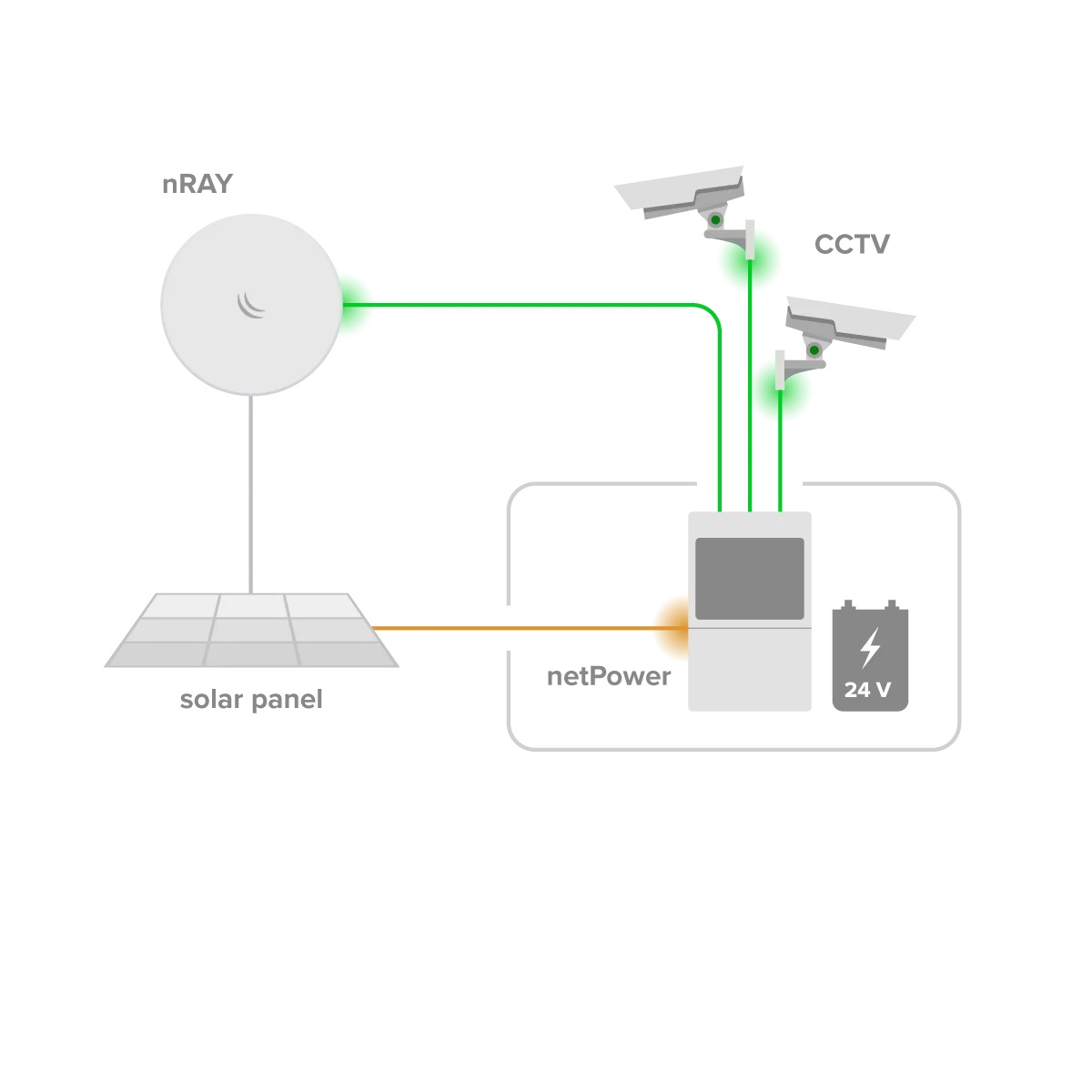

Typical Deployment
Powering cameras and wireless backhaul from a single UPS-enabled switch with zero downtime in the long run
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime - the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
MikroTik netPower Lite 8P Compact PoE switch with built-in UPS and smart battery charger - CSS610-8P-2S+OUT
- Brand: MikroTik
- MPN: CSS610-8P-2S+OUT
- Part #: NETMKT1526
Product URL: https://www.pbtech.co.nz/product/NETMKT1526/MikroTik-netPower-Lite-8P-Compact-PoE-switch-with
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
netPower Lite 8P
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger - because your CCTV cameras and access points deserve true off-the-grid resilience.
- 8× Gigabit Ethernet
- 802.3af/at PoE-Out
- 2× 10G SFP+ uplinks
- 24-57 V DC input
- 120 W total PoE-Out
- Integrated UPS switchover
- Built-in smart battery charger
- Temperature sensor included
Power cuts shouldn't mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery - and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite - fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24-57 V DC into the 2-pin terminal.
Just like other outdoor-friendly gear, this switch is built to endure. With an operating range of -40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically - charging slows down first to keep your essential devices online.
Built-in UPS support: effective, reliable, gives you options
Connect a 24 V nominal battery - typically two 12 V units in series - and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.
Charging is handled intelligently through three stages:
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Alarm input
Connect a simple 2-wire contact to detect tampering, and the device will report it instantly in SwOS Lite and over SNMP. You can pair it with a RouterOS device for additional automation or creative scripting triggers.
Typical Deployment
Powering cameras and wireless backhaul from a single UPS-enabled switch with zero downtime in the long run
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime - the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specifications
MPN
CSS610-8P-2S+OUT
10/100/1000 Ethernet ports with PoE
8
SFP+ ports
2
Switch chip model
88E6193
Operating System
SwOS Lite
Storage size
64 KB
Storage type
FLASH
Number of DC inputs
3 (2-pin terminal)
2-pin terminal input Voltage
24-57 V (Battery 22-30 V)
Max power consumption
208 W
Max power consumption without attachments
9 W
Cooling type
Passive
PoE-out ports
Ether1-Ether8
PoE out
802.3af/at
Low voltage PoE-Out current limit
1.0 A
High voltage PoE-Out current limit
0.64 A
Total output power
120
CPU temperature monitor
Yes
Current Monitor
Yes
Voltage Monitor
Yes
Certification
CE, EAC, ROHS
IP
54
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
