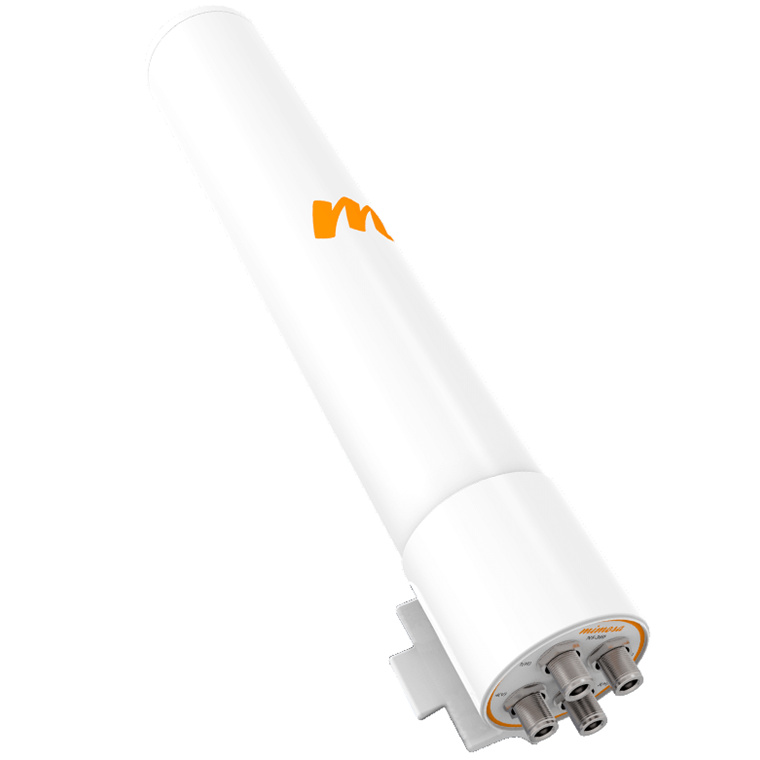

Mimosa N5-360 4.9-6.4GHz 360 Beamforming Antenna A5c
Mimosa N5-360 4.9-6.4GHz 360 Beamforming Antenna A5c
- Brand: Mimosa
- MPN: N5-360
- Part #: NETMMS690062
- UPC:
- Brand: Mimosa
- MPN: N5-360
- Part #: NETMMS690062
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Mimosa N5-360 4.9-6.4GHz 360 Beamforming Antenna A5c
- Brand: Mimosa
- MPN: N5-360
- Part #: NETMMS690062

Product URL: https://www.pbtech.co.nz/product/NETMMS690062/Mimosa-N5-360-49-64GHz-360-Beamforming-Antenna-A5c
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Beamforming 360° Antenna

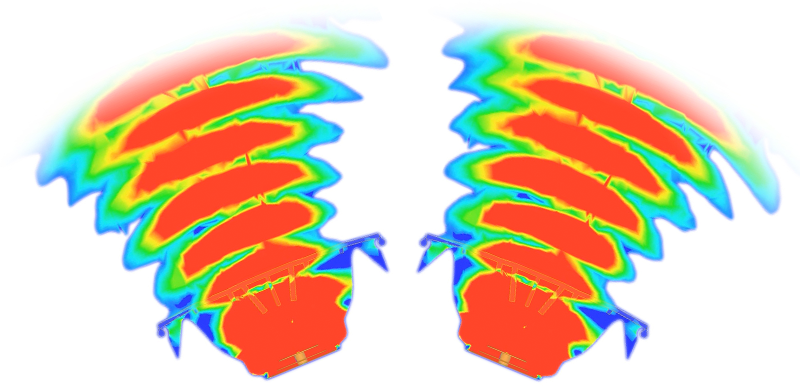

Introducing the industry's first 4-port, beamforming, 360° antenna specifically designed exclusively for Mimosa's A5c access point. The N5-360 antenna's unique design incorporates quad-180° overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain.
Designed Exclusively for Mimosa's A5c
The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
Wide-Frequency Range
The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility. Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.

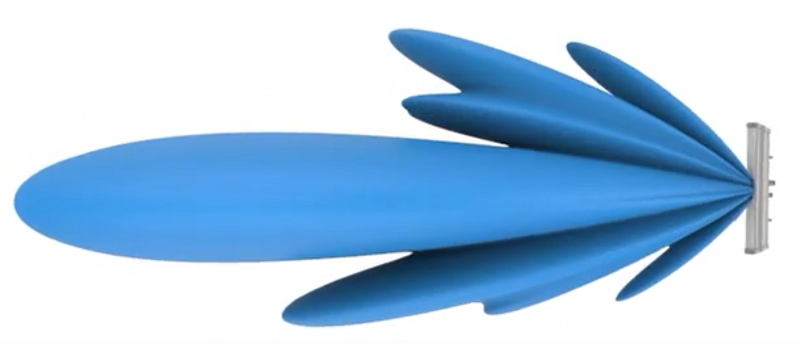

Beamforming Capabilities
3 dB performance enhancement in a compact design, with all new quad-180° overlapping antenna polarizations that enable range-extending, beamforming technology.

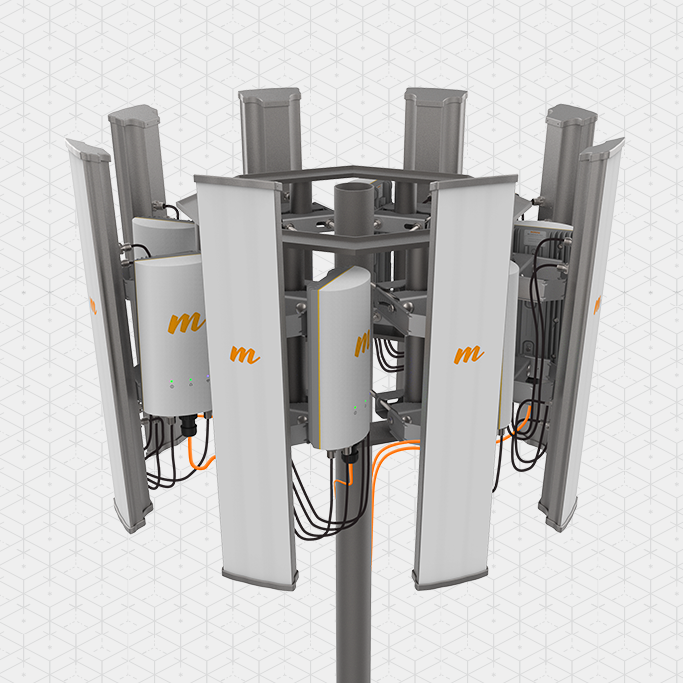

Designed for MicroPop Deployments
Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.
Specifications
Brand
Mimosa
Model
N5-360
Gain
15 dBi
Frequency
4.9-6.4 GHz
Azimuth Beamwidth
360° via 4 overlapping 180° sectors
Elevation Beamwidth (3 db)
8°
Downtilt
2°
Height
465 mm (18.31") including bracket
Width
80 mm (3.15")
Weight
1.11 kg (2.45 lbs)
RF Connectors
4 N-type female
