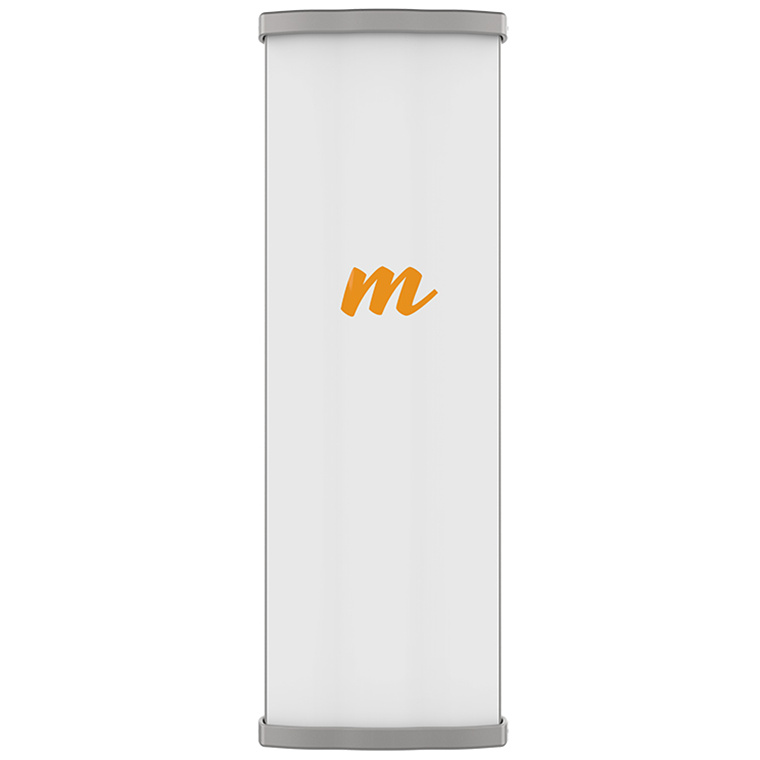

Mimosa 4.9-6.4 GHz 2x2 45 Deg Sector Antenna
Mimosa 4.9-6.4 GHz 2x2 45 Deg Sector Antenna
- Brand: Mimosa
- MPN: N5-45X2
- Part #: NETMMS690063
- UPC:
- Brand: Mimosa
- MPN: N5-45X2
- Part #: NETMMS690063
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas
Mimosa 4.9-6.4 GHz 2x2 45 Deg Sector Antenna
- Brand: Mimosa
- MPN: N5-45X2
- Part #: NETMMS690063
Product URL: https://www.pbtech.co.nz/product/NETMMS690063/Mimosa-49-64-GHz-2x2-45-Deg-Sector-Antenna
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Industry's Highest Performing Sector Antennas
The Mimosa N5-45x2 antenna, delivers all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. This 4.9-6.4 GHz, 45-degree sector antenna is custom-engineered for a variety of multipoint applications.
Disruptive Sector Antenna
All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.
No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.

Industry's Highest Front-to-Back Ratio
With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

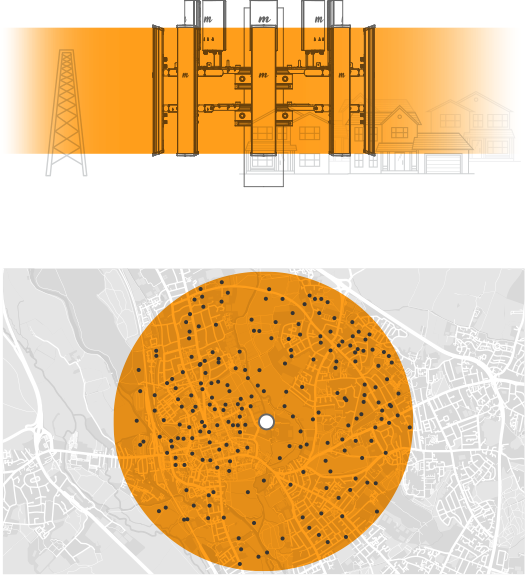

Optimized Ground Coverage
Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of cap.

Supports Third-Party Access Points
Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

Specifications
Model
N5-45X2
Gain
19dBi
Polarization
Dual-slant 45°
Azimuth Beamwidth
(4 dB): 45°
Elevation Beamwidth
(3 db): 9°
Electrical Downtilt
2°
Front-to-Back Ratio (min)
43 dB
Cross-Polar Isolation
>30 dB
Port-to-Port Isolation
>10 dB

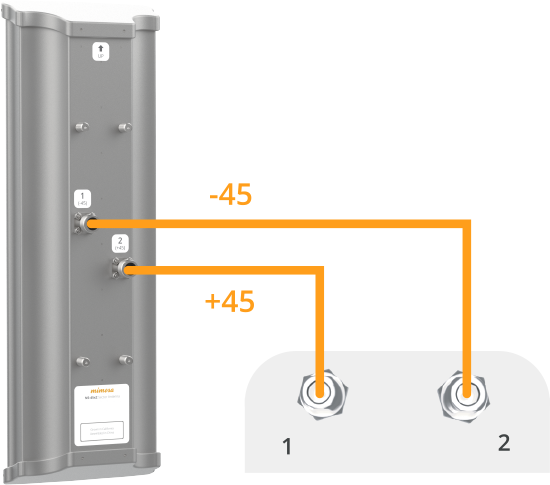

RF Connectors
2 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables)
Impedance
50 Ohm
Max Input Power
30 dBm
Enclosure Characteristics
Outdoor, UV stabilized, engineered polymer
