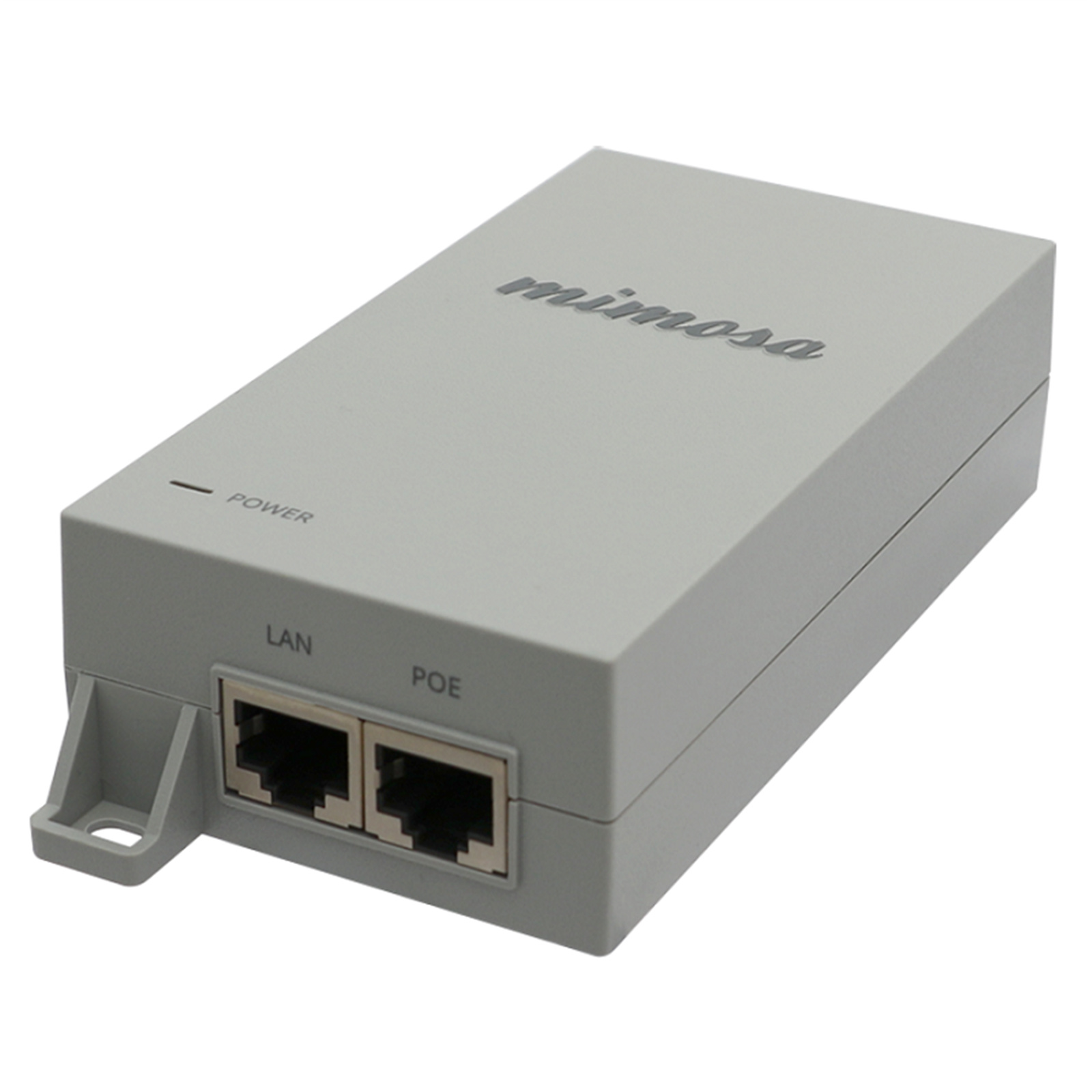

Mimosa POE-50V Passive PoE Injector for Mimosa B5x
Mimosa POE-50V Passive PoE Injector for Mimosa B5x
- Brand: Mimosa
 - MPN: POE-50V
 - Part #: NETMMS690071
 - UPC: 815647020119

- Brand: Mimosa
 - MPN: POE-50V
 - Part #: NETMMS690071
 - UPC: 815647020119

Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors




                                                            Mimosa POE-50V Passive PoE Injector for Mimosa B5x
- Brand: Mimosa
 - MPN: POE-50V
 - Part #: NETMMS690071
 - UPC:815647020119

            Product URL: https://www.pbtech.co.nz/product/NETMMS690071/Mimosa-POE-50V-Passive-PoE-Injector-for-Mimosa-B5x
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Mimosa POE-50V Passive PoE Injector for Mimosa Radios. Mimosa's wide range of Power over Ethernet (PoE) solutions are designed for a clean installation in any environment. Supporting many county specific plugs and power options, Mimosa's PoE is the ideal power solution for your wireless installations.
Specifications
Dimensions
138 mm x 62 mm x 35 mm
Weight
0.24 kg (8.8 oz)
Color
Grey
Gigabit LAN
Yes, (2) RJ-45
Output Voltage
50 V === 1.2A
Max Current Load
1.2A (60 W)
Pinout
PIN 1/2 and 4/5: +50 V; PIN 3/6 and 7/8: GND
Input Voltage
100-240 VAC ~ 50/60 Hz; Max 1.5A
Input Current
1.5A @ 115 VAC; 1.0A @ 230 VAC
Input Frequency
47-63 Hz
Max In-Rush Current
150A
Ripple Voltage
200 mV
Protection
Over Current; Over Voltage
Efficiency
88+% - Level VI
RJ-45 Type
Metal-Shielded
AC Connector
IEC-320 C6 (3 Pin Clover Inlet) (Not Included)
Operation Indicator
1 LED (blue)
Operating Temperature
-25deg C to +50deg C
Operating Humidity
5% to 95% non-condensing
Storage Temperature
-30deg C to +70deg C
