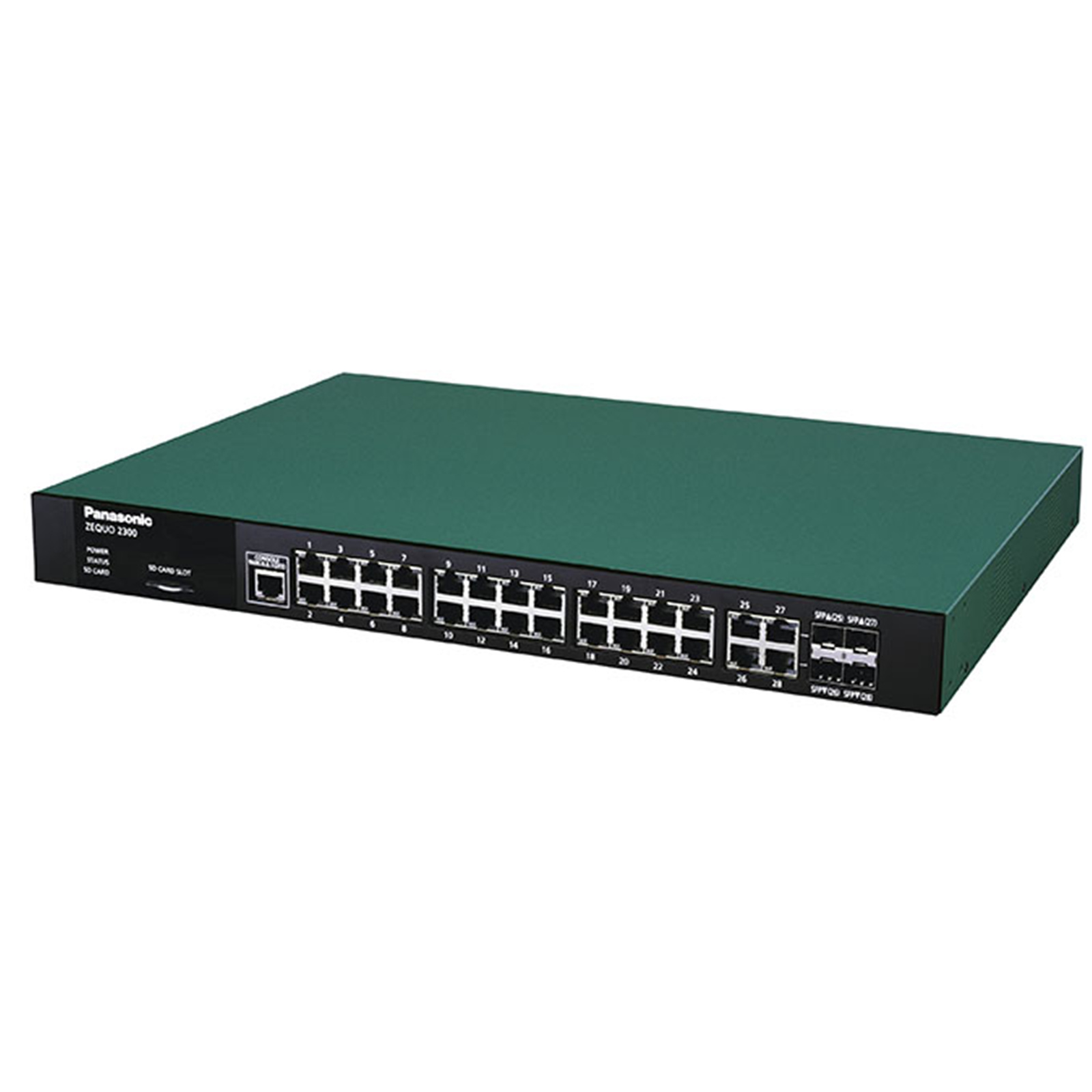

Panasonic PN26241K-NZ ZEQUO 2300 28 Port Advanced Layer 2 Switch
Panasonic PN26241K-NZ ZEQUO 2300 28 Port Advanced Layer 2 Switch
- Brand: Panasonic
- MPN: PN26241K-NZ
- Part #: NETPAN1014
- UPC:
- Brand: Panasonic
- MPN: PN26241K-NZ
- Part #: NETPAN1014
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Panasonic PN26241K-NZ ZEQUO 2300 28 Port Advanced Layer 2 Switch
- Brand: Panasonic
- MPN: PN26241K-NZ
- Part #: NETPAN1014
Product URL: https://www.pbtech.co.nz/product/NETPAN1014/Panasonic-PN26241K-NZ-ZEQUO-2300-28-Port-Advanced
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The ZEQUO 2300 is a Layer 2 all giga Ethernet Switch equipped with management functions that has 28 10/100/1000BASE-T ports and 4 SFP expansion ports.
- Ports 1 to 28 are 10BASE-T/100BASE-TX/1000BASE-T ports corresponding to auto negotiation. Also their speed and communication mode can be switched by configuration. However, ports 25 to 28 do not support half-duplex mode.
- Ports 25 to 28 are SFP+ extension slots. These ports and the 1000BASE-T twisted pair cable ports cannot be used simultaneously.
- Settings and firmware can be changed and saved by using an SD card.
- All twisted pair ports support straight/cross cable auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device. (To prevent loop - failures, ports 1 to 24 are fixed to MDI-X at factory default settings.)
- The connection status for each port is detected by the power saving mode, and it can suppress the power consumption to required volumes when not linked up. (Factory default: disabled)
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures. When a port is shut off and recovered automatically, SNMP trap can be sent to notify the incident to the administrator. Moreover, the port with a loop can be identified by loop notification on the LEDs on the main unit and referring the history of loop on the setting screen.
- The IEEE802.1p compatible QoS function is supported.
- Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port.
- Supports triple authentication that can simultaneously wait on IEEE802.1X authentication, MAC authentication, and WEB authentication via one port, and an authentication network which is matched to the kinds of connection terminals can be constructed.
- Equipped with step authentication functions, and can prevent illegal access of the terminals.
- The Ring Redundant Protocol (RRP) is supported, allowing to make a redundant net-work via ring topology.
Specifications
Model No.
PN26241K-NZ
Rated/Environmental Conditions
Power supply
AC100-240V, 50/60Hz, 0.6A (with a built-in power supply)
Power consumption
Normally, Max.22.4W, Min.11.6W
Operating environment
Temperature: 0 - 50°C
Humidity: 20 - 80%RH (no condensation)
Storage environment
Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)
EMC compliance
CISPR 32 Class A
EN 55032 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety compliance
IEC 62368-1
EN 62368-1
Environment compliance
RoHS compliant
Form
Form and materials/colors
Dimensions : 44mm(Height)×440mm(Width)×312mm(Depth) (Excluding protruding sections)
Case material : Main unit: SECC, Front face: PC/ABS, Face plate: PC
Color : Main unit: Green 03, Front face: Black 02, Face plate label: Black 01
Mass(Weight)
3,900 g
Interface
Twisted pair port 1-24 : RJ45 connector (*1)
Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Energy Efficient Ethernet (*2) : IEEE802.3az (LPI)
Transmission speed : 10/100Mbps full/half duplex, 1000Mbps full duplex.
Compatible cable : Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps and full duplex or half duplex.
Twisted pair port 25-28 : RJ45 connector
Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Transmission speed : 10/100/1000Mbps full duplex,
Compatible cable : Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps and full duplex.
*1 Embedded power saving mode detects the connection status automatically and saves power consumption to minimum.
*2 Energy Efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port.
SFP+ extension slot 25-28
Transmitting and receiving network system: IEEE802.3z 1000BASE-X
* Select either of RJ45 or SFP for use SFF-8472(DMI:Diagnostic Monitoring Interface)
Switching mode
Switching method
Store and Forward
Switching capacity
56.0Gbps
Packet transfer capability
Non-blocking
Max. 1,488,000pps/port(1000Mbps)
Max. 148,800pps/port(100Mbps)
Max. 14,880pps/port(10Mbps)
MAC Address table
Max. 16K entry/unit
Buffer memory
2.0M Bytes/unit
Flow control
half-duplex Back pressure
full-duplex IEEE802.3x
Aging timeout
10 to 1,000,000 sec. (Default: 300 sec.)
Jumbo frame supported
9KB
Transmittable frames
EAP,BPDU,LACP
HOL Blocking Prevention
Supported
Terminal emulator connection
Console port
RJ45 connector 1 port
Transmission mode
RS-232C(ITU-TS V.24)
Emulation mode
VT100
Communication configuration
9,600bps, 8bit, None Parity control,
Stop bit 1 bit
SD card slot
SD card slot
1
Standard
SD/SDHC
Size
128MBytes to 32GBytes
