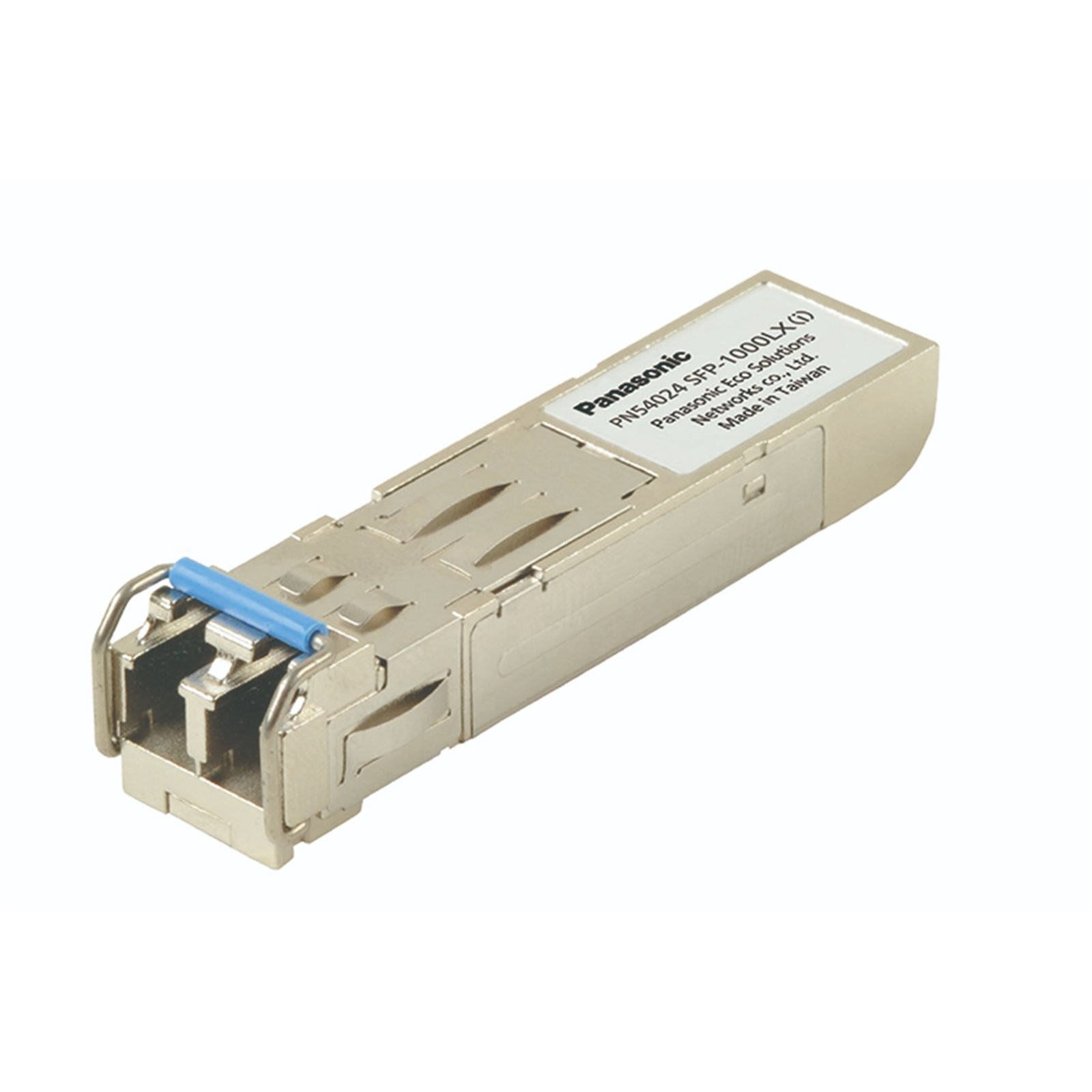

Panasonic PN54024-NZ 1000BASE LX 10KM WITH SMF 550M WITH 50-125UM MMF
Panasonic PN54024-NZ 1000BASE LX 10KM WITH SMF 550M WITH 50-125UM MMF
- Brand: Panasonic
- MPN: PN54024-NZ
- Part #: NETPAN1025
- UPC:
- Brand: Panasonic
- MPN: PN54024-NZ
- Part #: NETPAN1025
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers





Panasonic PN54024-NZ 1000BASE LX 10KM WITH SMF 550M WITH 50-125UM MMF
- Brand: Panasonic
- MPN: PN54024-NZ
- Part #: NETPAN1025

Product URL: https://www.pbtech.co.nz/product/NETPAN1025/Panasonic-PN54024-NZ-1000BASE-LX-10KM-WITH-SMF-550
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
1000BASE-LX SFP Module(i) is SFP (Small-Factor Pluggable) module to be connected to a Panasonic Ethernet Switch's SFP/SFP+ extension slot.
Specifications
Model No.
PN54024-NZ
Rated/Environmental Conditions
Operating Voltage
DC 3.3V
Power consumption
0.9W max.
Operating environment
Temperature: 0 - 60?
Humidity: 20 - 80%RH (no condensation)
Storage environment
Temperature: -20 - 70?
Humidity: 10 - 90%RH( no condensation )
Standards
IEEE802.3z 1000BASE-LX
INF-8074i Specification for SFP (Small Form factor Pluggable) Transceiver
SFF-8472 Diagnostic Monitoring Interface
Class 1 Laser Product (EN 60825-1, EN 60825-2)
IEC61000-4-2 IEC61000-4-3 IEC61000-4-4 IEC61000-4-5
IEC61000-4-6 IEC61000-4-8 IEC61000-4-11
IEC62368-1
EN 55024 EN55032
EN 61000-3-2 EN 61000-3-3
Form
External Dimensions
9mm(Height)×14mm(Width)×57mm(Depth)(Excluding protruding sections)
Mass(Weight)
17g
Hardware
Interface
Fiber port :LC connector (Duplex), 1port
Optical wavelength
1310nm
Output Optical Power
-9dBm min. - -3dBm max.
Optical Input Power minimum (Sensitivity)
-21dBm
