PolyPhaser RGT Type N F/F Bulkhead Coaxial RF Surge Protector, DC - 2.4GHz, 50W,IP67, 60 V Max
PolyPhaser RGT Type N F/F Bulkhead Coaxial RF Surge Protector, DC - 2.4GHz, 50W,IP67, 60 V Max
- Brand: PolyPhaser
- MPN: RGT
- Part #: NETPLP0003
- UPC:
- Brand: PolyPhaser
- MPN: RGT
- Part #: NETPLP0003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





PolyPhaser RGT Type N F/F Bulkhead Coaxial RF Surge Protector, DC - 2.4GHz, 50W,IP67, 60 V Max
- Brand: PolyPhaser
- MPN: RGT
- Part #: NETPLP0003

Product URL: https://www.pbtech.co.nz/product/NETPLP0003/PolyPhaser-RGT-Type-N-FF-Bulkhead-Coaxial-RF-Surge
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

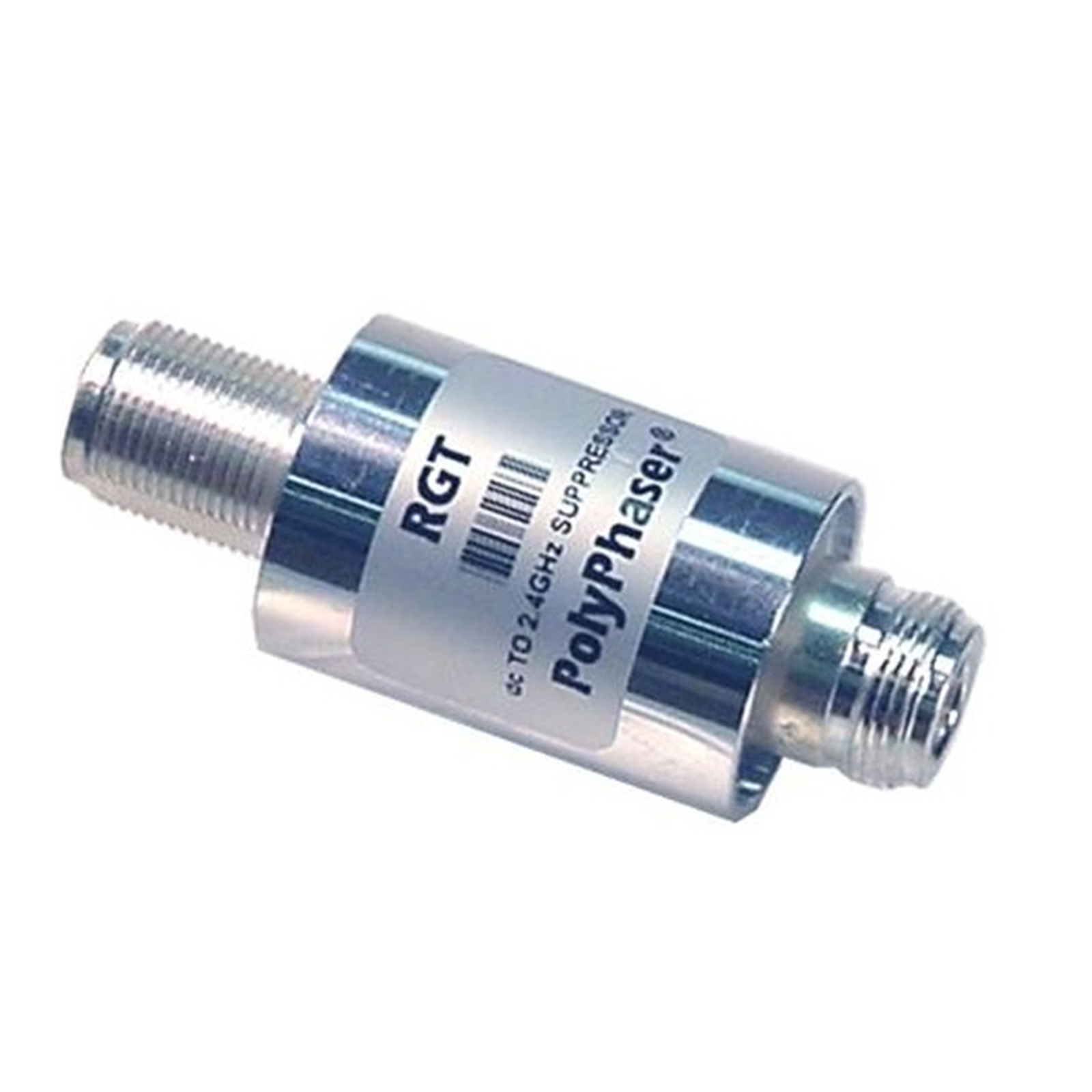

PolyPhaser RGT Type N F/F Bulkhead Coaxial RF Surge Protector, DC - 2.4GHz, 50W, IP67, 60 V Max., 3mJ, 18kA, Gas Discharge Tube
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) RGT is in-stock and will ship same-day as purchased. This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass DC to 2.4 GHz while suppressing DC surge.
While this radio frequency lightning surge suppressor operates in a range of frequencies from DC to 2.4GHz, it is supporting a power handling maximum of 50 Watts. RF surge protector RGT from PolyPhaser incorporates gas discharge tube technology to provide protection for equipment at up to the max. power of 50W. Our coax surge protection device for RF is manufactured with a type N bulkhead connection in and a type N bulkhead out.
RGT is constructed with a female gender for the input and female for the output. This F/F N type to type N surge protecting component for RF has a let-through energy of 3mJ. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating. This N type bulkhead coaxial lightning surge protector is RoHS compliant.
Specifications
MPN
RGT
Impedance
50 Ohm
Connector In Series
N
Connector In Gender
Female
Connector Out Series
N
Connector Out Gender
Female
Minimum Frequency
DC
Maximum Frequency
2.4 GHz
Maximum Input Power
50 Watts
Direction
Bidirectional
Throughput Energy
3,000 uJ
IP Rating
IP67
VSWR
<1.28:1
