Features

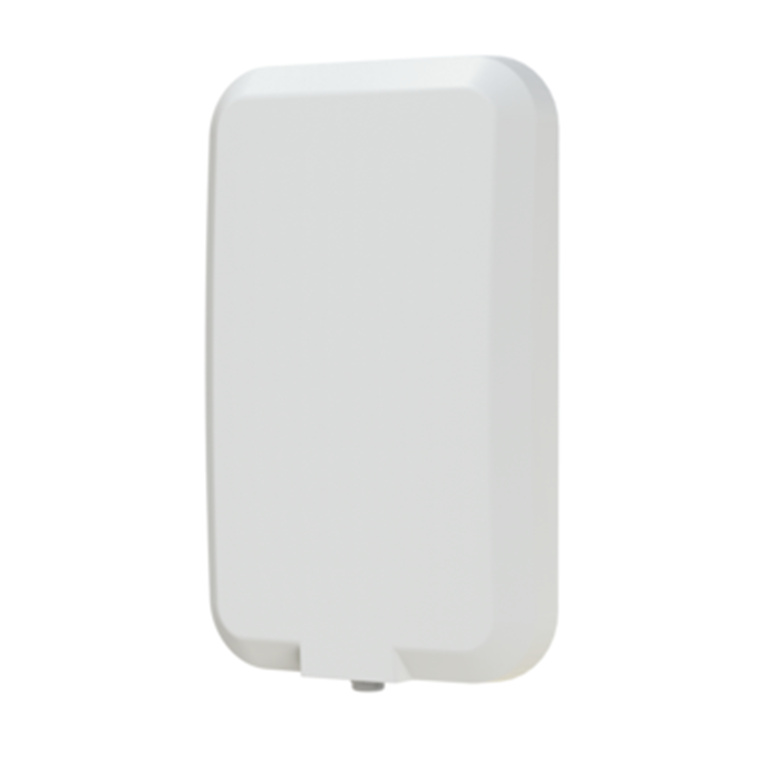

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.
- Supports Cat18/20 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G
- High Directional gain 6-9dBi
- Wall Mount or Mast Mount
- Ideal for Branch Networks and Failover
Specifications
Electrical Data
LTE Frequencies
617-960/1710-6000MHz
Typical VSWR
<2:1
Peak Gain (dBi)
9
LTE MiMo
4x4
Max Input Power (W)
50
Pattern
Directional
Mechanical Data
Available Colours
White
Length (mm)
507
Width (mm)
307
Height (mm)
87
Operating Temperature
-40 / +80° C
Mounting Data
Mounting Type
Wall Mount; Mast Mount
Mounting Method
Wall Bracket; Mast Clamp; U Bolt; Screw Mount; Flush Mount
Approvals Data
IP Rating
IP66
