Features
RF Elements 5GHz 18dBi 30deg Symmetrical Horn Antenna GEN2
- 2x N-Type Female Connectors
- Unique Symmetrical Beam Performance 5180-6400 MHz
- No Side Lobes
- Wideband Performance
- Excellent Gain Across Spectrum
- Coverage Without Null
- Excellent Co-Location performance
- Ultimate Spectrum Efficiency For Everyone
- Compact Size
Symmetrical Horn Carrier Class Antennas Gen2
Game changing beam performance. Market leading system scalability. Superb build & ergonomics.
Game Changing Sector Antenna

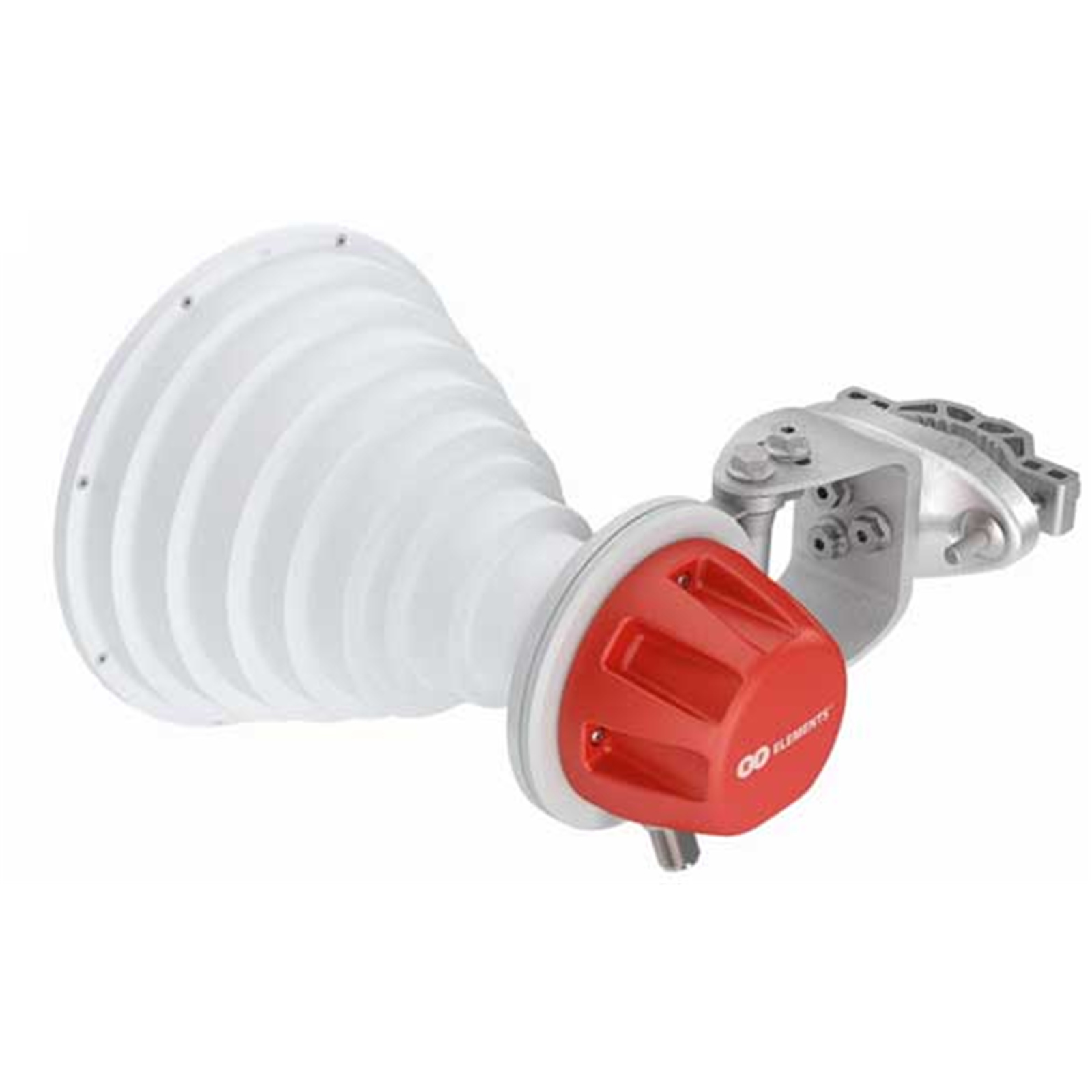

Symmetrical Horn Carrier Class Gen2 is a scalar horn with the same size of main beam in horizontal and vertical planes, equipped with N-female connectors.
Approved by tens of thousands of installations all around the globe, RF elements Symmetrical Horn Carrier Class Antennas are the new standard for fast and sustainable wireless.
Unique Beam Performance
Symmetrical Horn CC Gen2 has a unique beam shape and properties. The main beam cross-section is circular: azimuth and elevation beam widths are identical.
No Side Lobes
Symmetrical Horn CC Gen2 has no side lobes, it focuses energy into a single beam. This property saves the most important resource in the world of wireless communication - spectrum.
As a result of the unique radiation properties, the radio collects and propagates significantly less noise compared to current mainstream sector antennas. The noise problem is directly connected to the side lobes of an antenna - practically, an unavoidable feature of most competitive products. Symmetrical Horn CC Gen2 behaves differently, it is essentially "deaf" outside the main beam.
Wideband Performance
The radiation pattern of Symmetrical Horn CC Gen2 is frequency independent, and its gain is stable over the whole bandwidth of operation. These features make Symmetrical Horn CC Gen2 excellent sector antennas.
Excellent Gain Across 5 and 6 GHz Spectrum
Symmetrical Horn CC Gen2 Antennas cover an ultra-wideband spectrum: 5180-6775 MHz!
Coverage Without Null
Mainstream sector antennas have a radiation pattern that is wide in azimuth but flat in elevation plane. If an AP is too high, customers that are positioned too close will suffer from low AP signal.
Breakthrough Scalability
Symmetrical Horn CC Gen2 facilitates breakthrough scalability of wireless networks. Unique beam performance and great co-location characteristics allow for higher density sectors, compared to traditional sector technology.
N-type Connectors
Symmetrical Horn Carrier Class Antennas feature N-type female connectors, used with wide range of Radios. For example, mimosaTM, Cambium NetworksTM PMP450, LigoWaveTM, and many others. Users of UBNTTM Rocket M5 Titanium, MikroTikTM connectorized radios (NetBoxTM, BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas.
Robust and Durable
Symmetrical Horn CC Gen2 has solid aluminium body, built to last and resist any weather conditions. We use only the best materials: die cast, stamped, and extruded aluminium; high quality polypropylene, UV resistant polycarbonate; and stainless steel hardware.
Specifications
MPN
HG3-CC-S30 GEN2
Radio Connection
2x N Female Bulkhead Connector
Frequency Range
5180 - 6400 MHz
Gain
18.4dBi
Polarisation
Dual Linear H + V
Vertical Beamwidth
H 30° / V 30°
Horizontal Beamwidth
H 30° / V 30°
Front-to-Back Ratio
37 dB
Mechanical Tilt
± 25°
Pole Mounting Diameter
30 - 80 mm
Materials
UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Environmental
IP55
