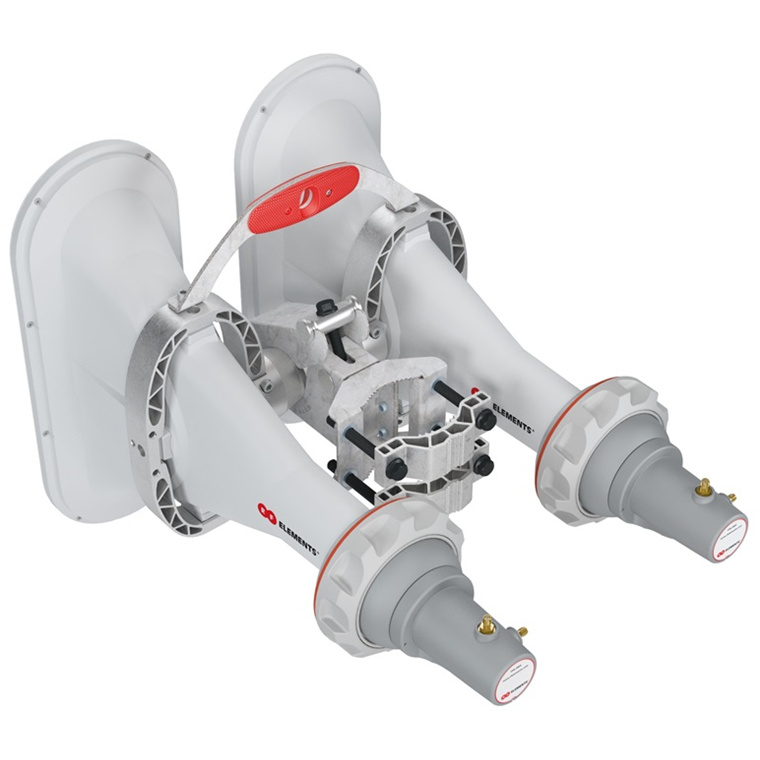

RF Elements 90° 4x4 5180 - 6000 MHz Asymmetrical Horn Antenna

PB Tech price
PB Tech price
$ 698 .26
 +GST
$ 803 .00
 inc GST
$698.26  +GST
$803.00

RF Elements 90° 4x4 5180 - 6000 MHz Asymmetrical Horn Antenna

  • Brand: RF Elements
  • MPN: AH90-4x4-SMA
  • Part #: NETRFE721491
  • UPC:
PB Tech price
$ 698 .26 $ 803 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 26 Sep When will I receive it?
$698.26  +GST
$803.00

Finance from $7.97 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: RF Elements
  • MPN: AH90-4x4-SMA
  • Part #: NETRFE721491
  • UPC:

Features



RF Elements 90° 4x4 5180 - 6000 MHz Asymmetrical Horn Antenna

This 5 GHz 4x4 Asymmetrical Beam antenna is designed for excellent performance with MU-MIMO radios, such as ePMP 3000 or ePMP 4500. 4x4 Antenna Array is based on Award Winning 90° Asymmetrical Horn Antenna elements. Overall radiation pattern is 90° wide in the azimuth plane and 25° in elevation.

Outstanding noise rejection and precision of the radiation pattern throughout the bandwidth of operation favor the antenna for high-density access point clusters and densely co-located sites. Antenna features RP-SMA female connectors and integrated mount of ePMP 3000 4x4 radio.

High Performance 4x4 5 GHz Sector Antennas

4x4 Horn Antennas are built to enable superb horn performance for 4x4 outdoor deployments using MU-MIMO radios. 4x4 5 GHz Asymmetrical Horn Antennas provide excellent noise rejection, network scalability and throughput increase. 4x4 5 GHz Horn Antennas are built as Array of 2x2 Asymmetrical Horn Antennas which were voted for WISPA Product of the Year Award for three consecutive years 2019-2021.



Best-in-Class Performance

The radiation pattern of 4x4 Asymmetrical Horn Antennas is stable over the whole 5 GHz  frequency band with balanced Horizontal and Vertical beam patterns. 4x4 5 GHz Asymmetrical Horn Antennas cover a wide frequency range: 5180-6000 MHz with excellent VSWR performance. 4x4 Asymmetrical Horn Antennas are created as an Array of game changing 5 GHz Asymmetrical Horn Antennas. These Award winning antennas have naturally depressed side lobes: they focus energy into a single main beam, with beam efficiency in the range of 90-95%. Fundamental suppression of unwanted parasitic side lobes enables excellent noise immunity and total control over antenna array radiation patterns.



Ultimate Mu-MIMO Performance with Cambium Networks ePMP

Cambium NetworksTM ePMP product line has gained the market share with high performance, scalability and reliability in harsh interference environments. 4x4 5 GHz Asymmetrical Horn Antennas provide excellent performance featuring 4x4 MU-MIMO and dual overlapping sectors enabling the ePMP 3000 and ePMP 4500 to deliver their best. The ePMP radios can be fitted with either a 90º or 60° 4x4 Asymmetrical Horn sector antennas. The interference mitigation features of ePMP radios will greatly benefit from the Asymmetrical Horn Antennas highly efficient beam naturally rejecting interference due to heavily suppressed or eliminated side lobes.



Integrated Radio Mount

4x4 Asymmetrical Horn Antennas are equipped with integrated mount for 4x4 connectorized radios from Cambium Networks and Mimosa. Cambium NetworksTM ePMP 3000 AP radio can be easily mounted directly on the antenna for smooth installation. Matching high quality RP-SMA pigtails are delivered in the package with the antenna.



Built Like a Tank

4x4 Asymmetrical Horn Antennas are built as an array of award winning 2x2 Asymmetrical Horn Antennas. Antennas have solid aluminium body, are built to last and to resist harsh weather conditions. We use the premium materials: die cast and extruded aluminium, stainless steel, high quality ABS plastic and high density polyethylene. Innovative mounting system is built of massive stainless steel. Hardware is made of stainless steel with black surface coating to prevent galling at installation.



Innovative Bracket

4x4 Asymmetrical Horn Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy. First install the bracket on the pole with the correct azimuth orientation. After that simply slide the antenna in the bracket. The safety hook and grooves will safely keep the antenna in place. Adjust the elevation and tighten the bolts to finish the installation. Only one tool is needed for the entire installation.

Specifications

Brand

RF Elements

MPN

AH90-4x4-SMA

Frequency Range

5180 - 6000 MHz

Gain

16 dBi

Azimuth Beam Width -3 dB

H 60° / V 60°

Elevation Beam Width -3 dB

H 16° / V 16°

Azimuth Beam Width -6 dB

H 90° / V 90°

Elevation Beam Width -6 dB

H 25° / V 25°

Beam Efficiency

90 %*
*Main beam defined up to first null

Front-to-Back Ratio

30 dB

VSWR Typical

1.5

Polarization

Dual Linear H + V

Impedance

50 OHm

Radio Connection

4x RP-SMA Female Connector

Pigtails

4x RP-SMA Male Connector 750mm (29.5 inch)

Antenna Type

Horn

Materials

UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel

Environmental

IP55

Pole Mounting Diameter

40-80 mm (1.5-3.1 inch)
Recommended as close to 80 mm (3.1 inch) as possible, recommended mounting on stand off bracket

Temperature

-35°C to +60°C (-31°F to +140°F)

Wind Survival

160 km/h (100 mi/h)

Wind Load

173/93 N - Front/Side at 160 km/h (100 mi/h)

Effective Projected Area

1309/754 cm² - Front/Side (202.9/116.9 in²)

Mechanical Adjustment

± 20° Elevation

Weight

10.6 kg (23.3 lbs) - single unit*
*Subject to change
