StarTech.com PEX4S953 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows, macOS, Linux

PB Tech price
PB Tech price
$ 265 .49
 +GST
$ 305 .31
 inc GST
$265.49  +GST
$305.31

StarTech.com PEX4S953 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows, macOS, Linux

  • Brand: StarTech.com
  • MPN: PEX4S953
  • Part #: NETSTT4828626
  • UPC: 065030888257
PB Tech price
$ 265 .49 $ 305 .31
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
$265.49  +GST
$305.31

Finance from $3.71 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows, macOS, Linux

CI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible

4 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular Serial card PEX4S952

OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl

STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has standard bracket pre-installed & 1x low profile bracket incl for versatile install; Supports Windows XP and up & Linux

VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope



This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

- Industry standard 16950 UART compatible
- Supports max baud rate of up-to 921.6Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 256-byte depth FIFO cache per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits (one per port)
- Asix AX99100 chipset
- Base PCI Express 1.1 compliant



Applications

- Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Install in home or office workstations
- Connect serial printers and other legacy devices to modern computers

Specifications

Connector(s)

1 - Connector Type(s)

PCI Express x1

1 - Internal Ports

LP4 (4 pin; Large Drive Power)

4 - External Ports

DB-9 (9 pin, D-Sub)

Environmental

Operating Temperature

-10°C to 80°C (14°F to 176°F)

Storage Temperature

-20°C to 100°C (-4°F to 212°F)

Humidity

5~85% RH

Hardware

Ports

4

Interface

Serial

Bus Type

PCI Express

Card Type

Low Profile (SP bracket incl.)

Port Style

Integrated on Card

Chipset ID

Asix AX99100

Packaging Information

Package Height

2.0 in [50.0 mm]

Package Length

8.3 in [21.0 cm]

Shipping (Package) Weight

13.1 oz [371.0 g]

Package Width

5.9 in [15.0 cm]

Performance

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

Data Bits

5, 6, 7, 8, 9

FIFO

256 Bytes

Flow Control

None, Xon/Xoff, RTS/CTS

Parity

None, Odd, Even, Space, Mark

Stop Bits

1, 1.5, 2

MTBF

214,358 hours

Physical Characteristics

Product Height

0.6 in [15.0 mm]

Product Length

3.0 in [75.0 mm]

Weight of Product

1.8 oz [50.0 g]

Product Width

2.5 in [63.0 mm]

Material

Steel

Cable Length

11.8 in [30 cm]

Software

OS Compatibility

Windows® 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only

Microsoft WHQL Certified

Yes

Special Notes / Requirements

Note

Selectable power output on pin 9 of the serial port

What's in the Box

1 - Included in Package

4 Port PCI Express Serial Card
Full Profile Bracket (Installed)
Low Profile Bracket

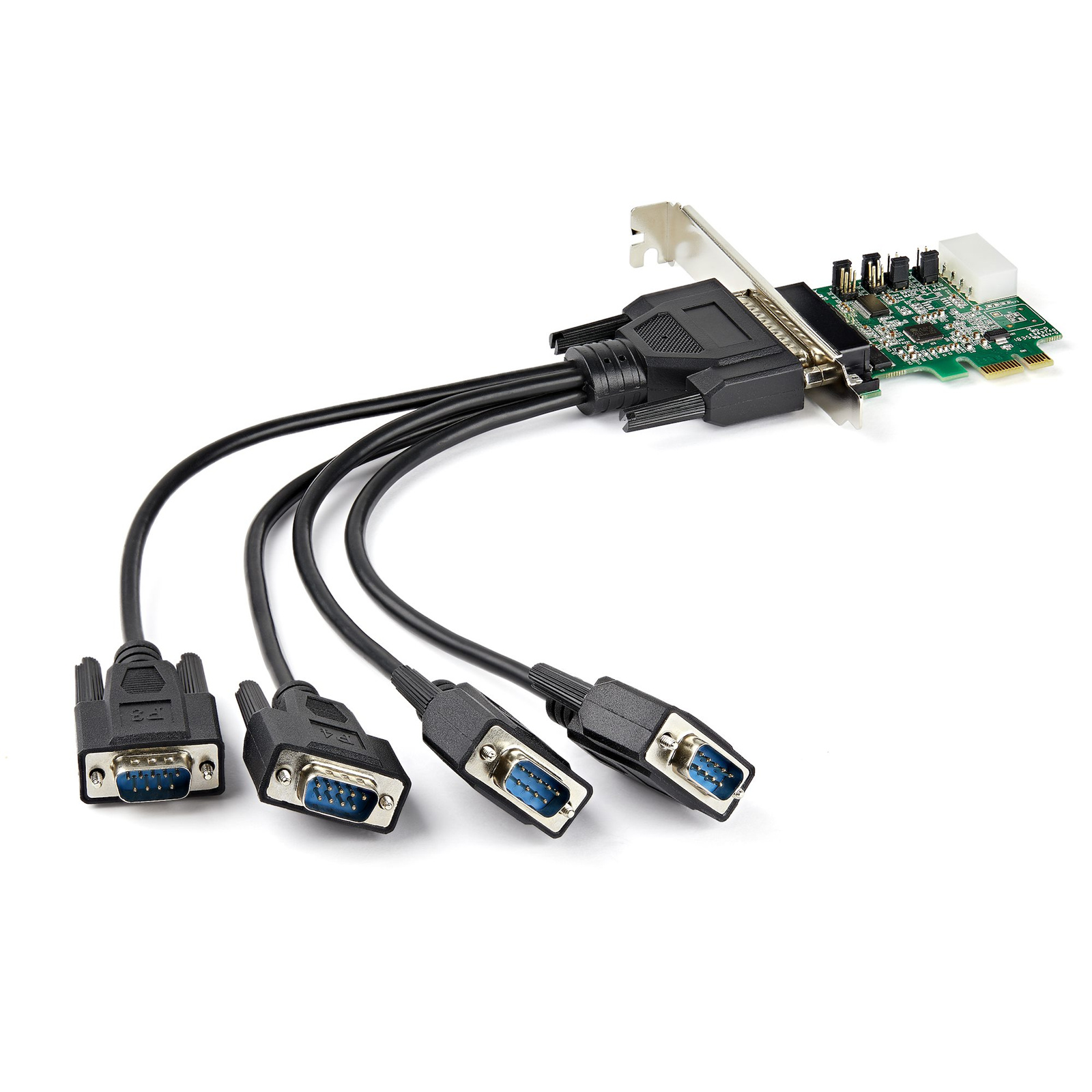

12 in [30 cm] DB44 to DB9 Break-out Cable
Quick Start Guide

Manufacturer Part No:
PEX4S953
Brand:
Product Type:
-
UPC
065030888257
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
NETSTT4828626
Product Model:
PEX4S953
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
