StarTech.com MCM110ST2 MM FIBER ETHERNET MEDIA CONVERTER ST 2KM

With promo code $141.46
With promo code $162.68
Save $7
Save $8
$ 148 .91
 +GST
$ 171 .25
 inc GST
$148.91  +GST
$171.25

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

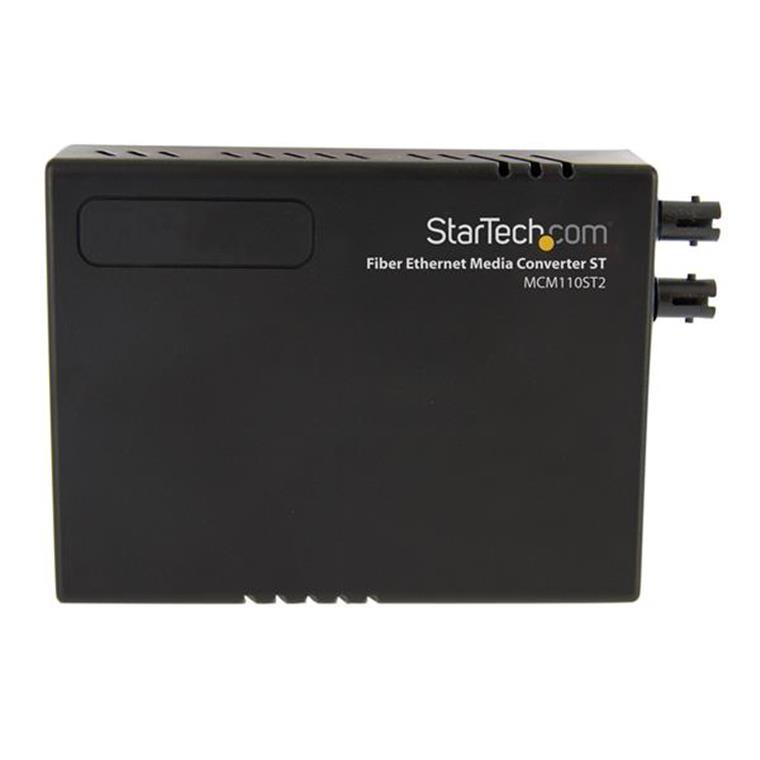

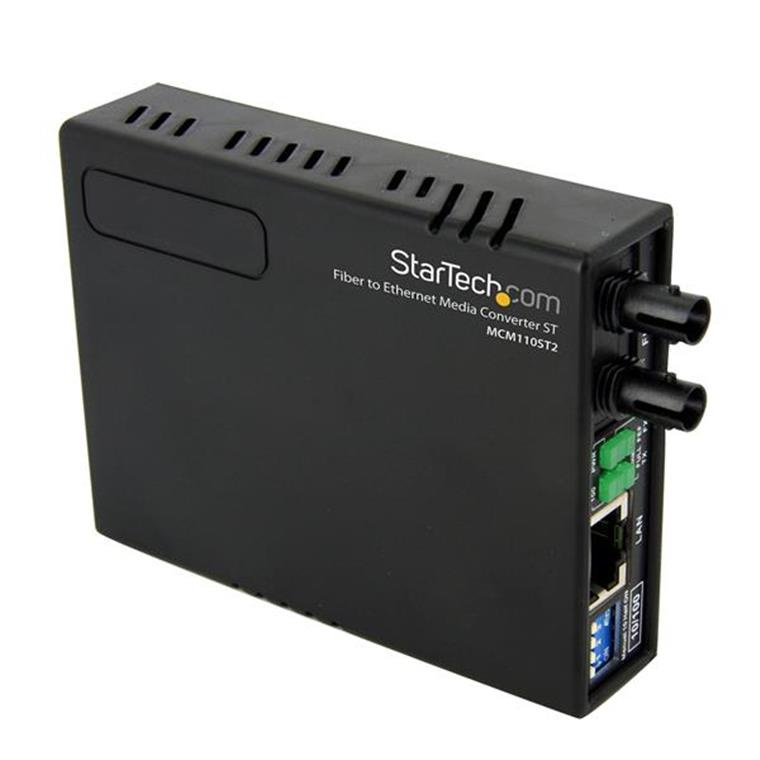

StarTech.com MCM110ST2 MM FIBER ETHERNET MEDIA CONVERTER ST 2KM

  • Brand: StarTech.com
  • MPN: MCM110ST2
  • Part #: NETSTT690392
  • UPC: 065030835633
CLEARANCE
With promo code $141.46
With promo code $162.68
Save $7 with code CLEARANCE
Save $8 with code CLEARANCE
Without promo code
$ 148 .91 $ 171 .25
 +GST  inc GST

Part of Clearance Zone
For a limited time only, while stocks last!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 06 Oct When will I receive it?
$148.91  +GST
$171.25

Features

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Specifications

Industry Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3u 100BASE-TX

PoE
No

WDM
No

Fiber Operating Mode
Half/Full-Duplex

Fiber Type
Multi Mode

Max Transfer Distance
2 km (1.2 mi)

Maximum Data Transfer Rate
10/100Mbps

MTBF
65,000 Hours

Optical Power
-14 ~ -20 dBm

Power Budget
11 dB

Sensitivity
-31 dBm

Wavelength
1310nm

Local Unit Connectors
1 - Fiber Optic ST Duplex Female
1 - RJ-45 Female

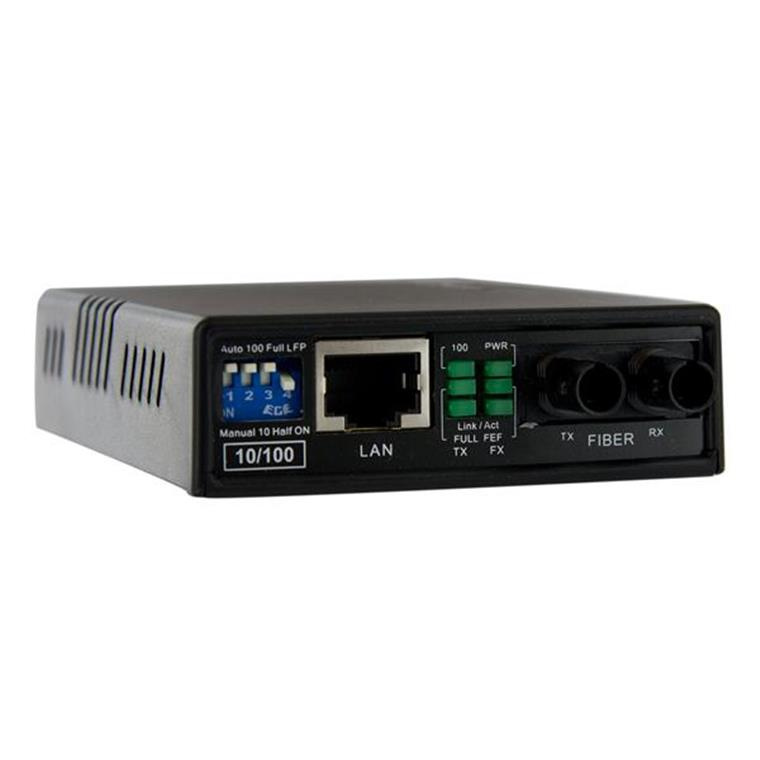

LED Indicators
1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - Full ( Full duplex / Half duplex)
1 - Power
1 - Speed (10 or 100 Mbps)

Center Tip Polarity
Positive

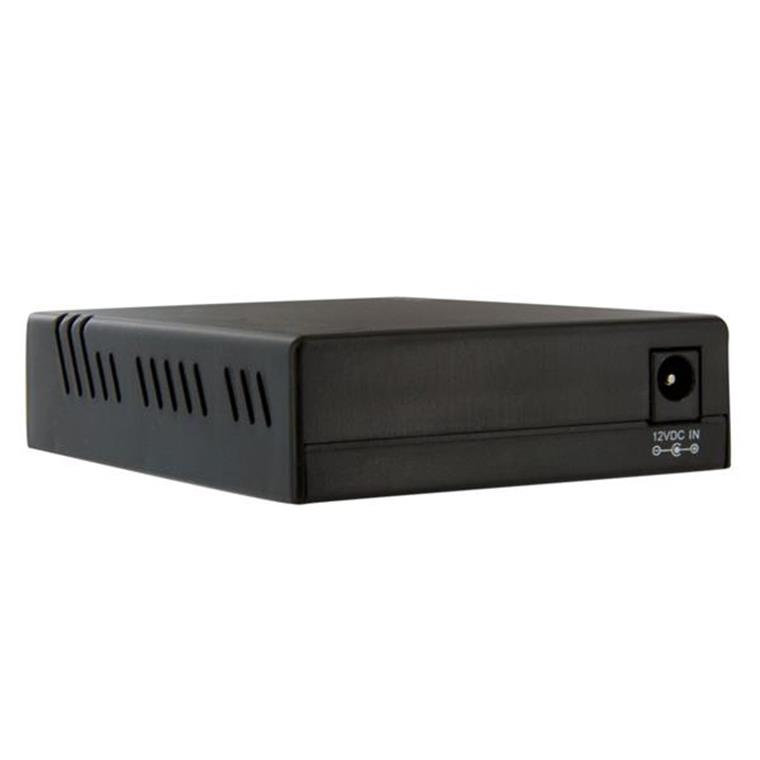

Input Voltage
115V AC

Output Current
0.2A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
2.4

Power Source
AC Adapter Included

Humidity
10~90% RH

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-10°C to 70°C (14°F to 158°F)

Colour
Black

Enclosure Type
Plastic

Dimensions
Height
0.8 in (20 mm)
Length
3.7 in (95 mm)
Width
3 in (75 mm)

Manufacturer Part No:
MCM110ST2
Brand:
Product Type:
-
UPC
065030835633
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
NETSTT690392
Product Model:
MCM110ST2
