TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode with TL-SM311LM

BEST VALUE

TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode...

Features

http://www.tp-link.com/us/products/details/cat-43_MC220L.html



Gigabit Ethernet Media Converter
MC220L


Highlights:

- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber


What This Product Does

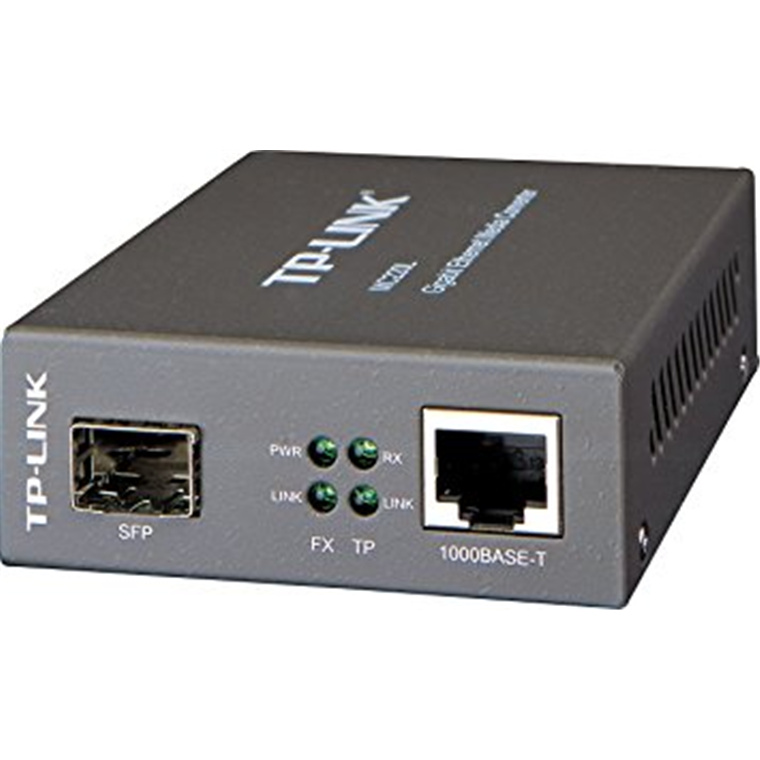

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK?s 19??system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

Specifications

MEDIA CONVERTER & MODULE

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x


Basic Function

Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber


Ports
1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Network Media 100BASE-FX
Multi-mode/Single-mode Fiber

LED Indicators
PWR, LINK, RX

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Safety & Emission
FCC, CE


Environment

Operating Temperature:
0~40C (32~104F)

Storage Temperature:
-40?70C (-40~158F)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90% non-condensing

Manufacturer Part No: TL-MC220L Brand: TP-Link Product Type: Gigabit Media Converter
UPC - Product Family: - Shipping Weight: 0.447 kg
PB Part No: NETTPL0220 Product Model: MC220L

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.

Accessories

PB Part NoProduct NameAvailable StockPrice
SWHTPL0312TP-Link TL-SM311LS MiniGBIC Module - LC, Single-mode, Up to 10km
PB TECH: 1
SUPPLIER: 0
$61.25 +GST$70.44 inc GST
SWHTPL0311TP-Link TL-SM311LM MiniGBIC Module - LC, Multi Mode, Up to 550m
PB TECH: 0
SUPPLIER: 6
$57.39 +GST$66.00 inc GST

TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode with TL-SM311LM

  • Brand: TP-Link
  • MPN: TL-MC220L
  • Part #: NETTPL0220
  • UPC:
PB Tech price: $48.70 Excluding GSTPB Tech price:$56.00 Including GST
Date Created: 11:08, 24-09-2020
Product URL: https://www.pbtech.co.nz/product/NETTPL0220/TP-Link-MC220L-Gigabit-Media-Converter---Fiber-SFP
