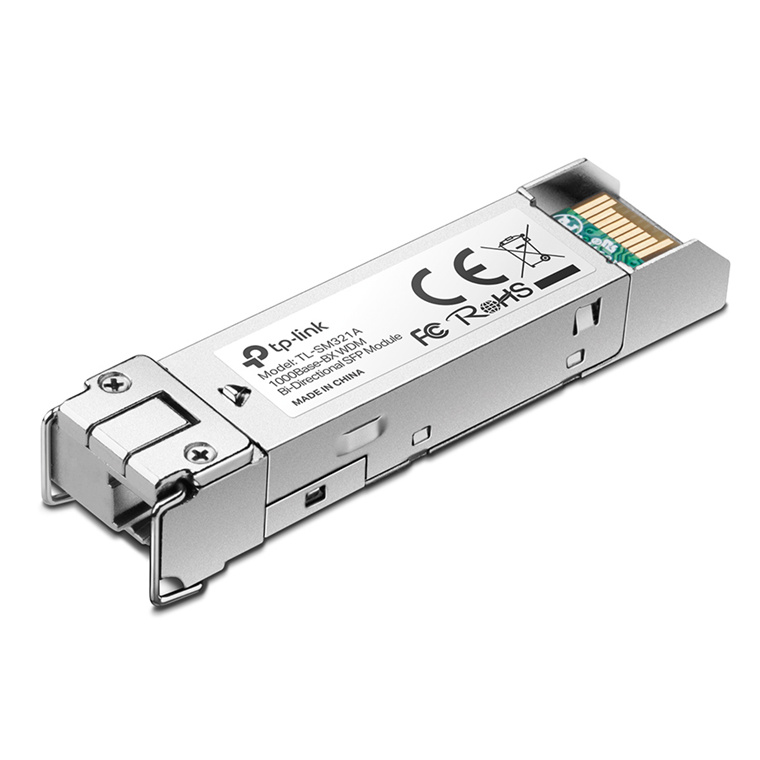

TP-Link Omada SM321A-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1550nm/RX:1310nm, Single-mode, 2 km
TP-Link Omada SM321A-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1550nm/RX:1310nm, Single-mode, 2 km
- Brand: TP-Link
- MPN: SM321A-2
- Part #: NETTPL03212
- UPC:
- Brand: TP-Link
- MPN: SM321A-2
- Part #: NETTPL03212
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Transceivers
TP-Link Omada SM321A-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1550nm/RX:1310nm, Single-mode, 2 km
- Brand: TP-Link
- MPN: SM321A-2
- Part #: NETTPL03212
Product URL: https://www.pbtech.co.nz/product/NETTPL03212/TP-Link-Omada-SM321A-2-Gigabit-Single-Mode-WDM-Bi
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TP-LINK´s SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).
Also, SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link's SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
- Adopts the latest standard 1000Base-BX
- Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Supports Hot Swappable
Specifications
Hardware Features
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
Media Converter & Module
Standards and Protocols
IEEE 802.3z, TCP/IP
Wave Length
TX: 1550 nm
RX: 1310 nm
Dimensions (W*D*H)
2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply
3.3 V
Safety & Emission
FCC, CE
Cable
Single-Mode Fiber
Fiber Type
9/125 μm Single-Mode
Max. Cable Length
2 KM
Data Rate
1.25 Gbps
Port Type
LC Simplex
Environment
Operating Temperature: 0-70 °C (32-158 °F)
Storage Temperature: -40-85 °C ( -40-185 °F)
Operating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-Condensing
