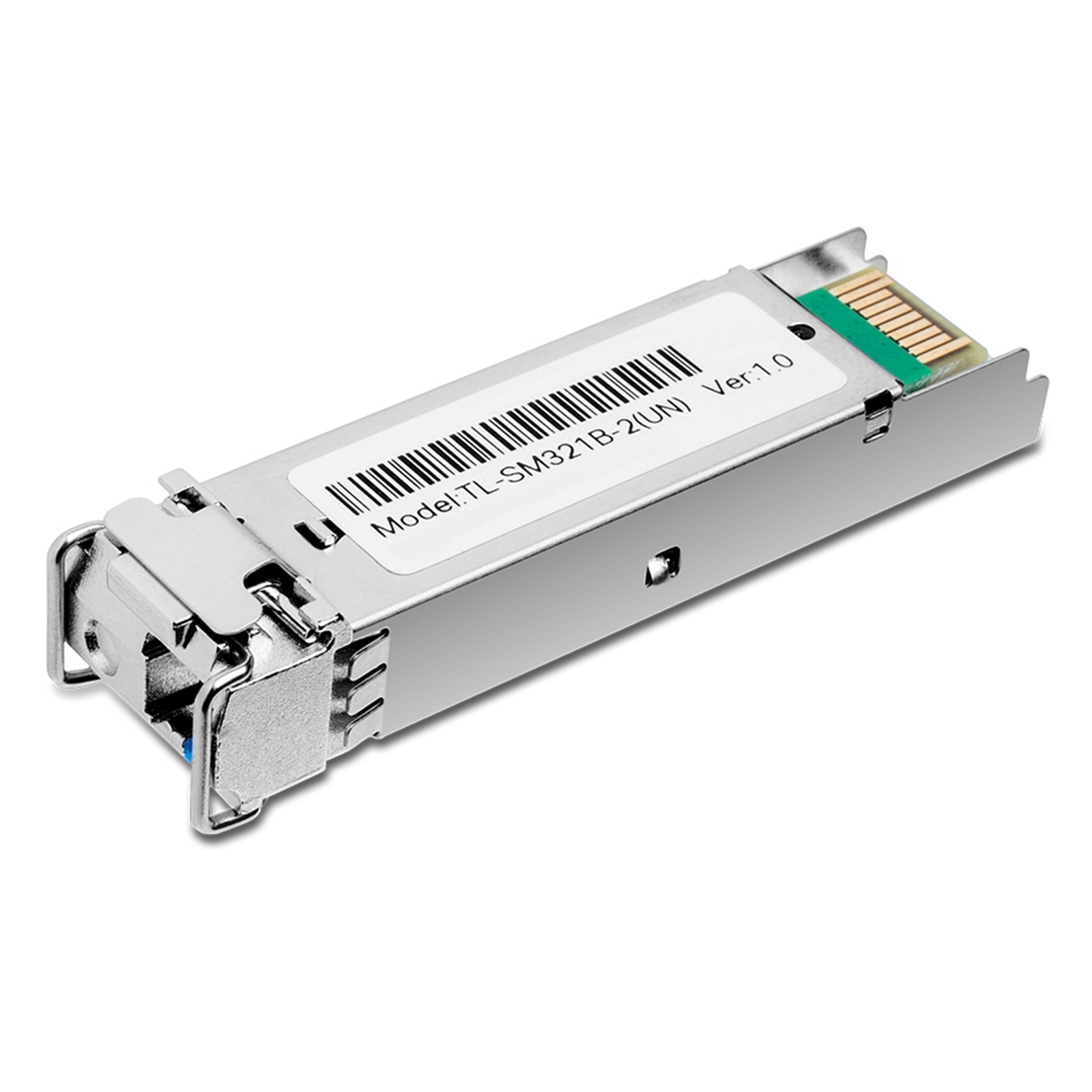

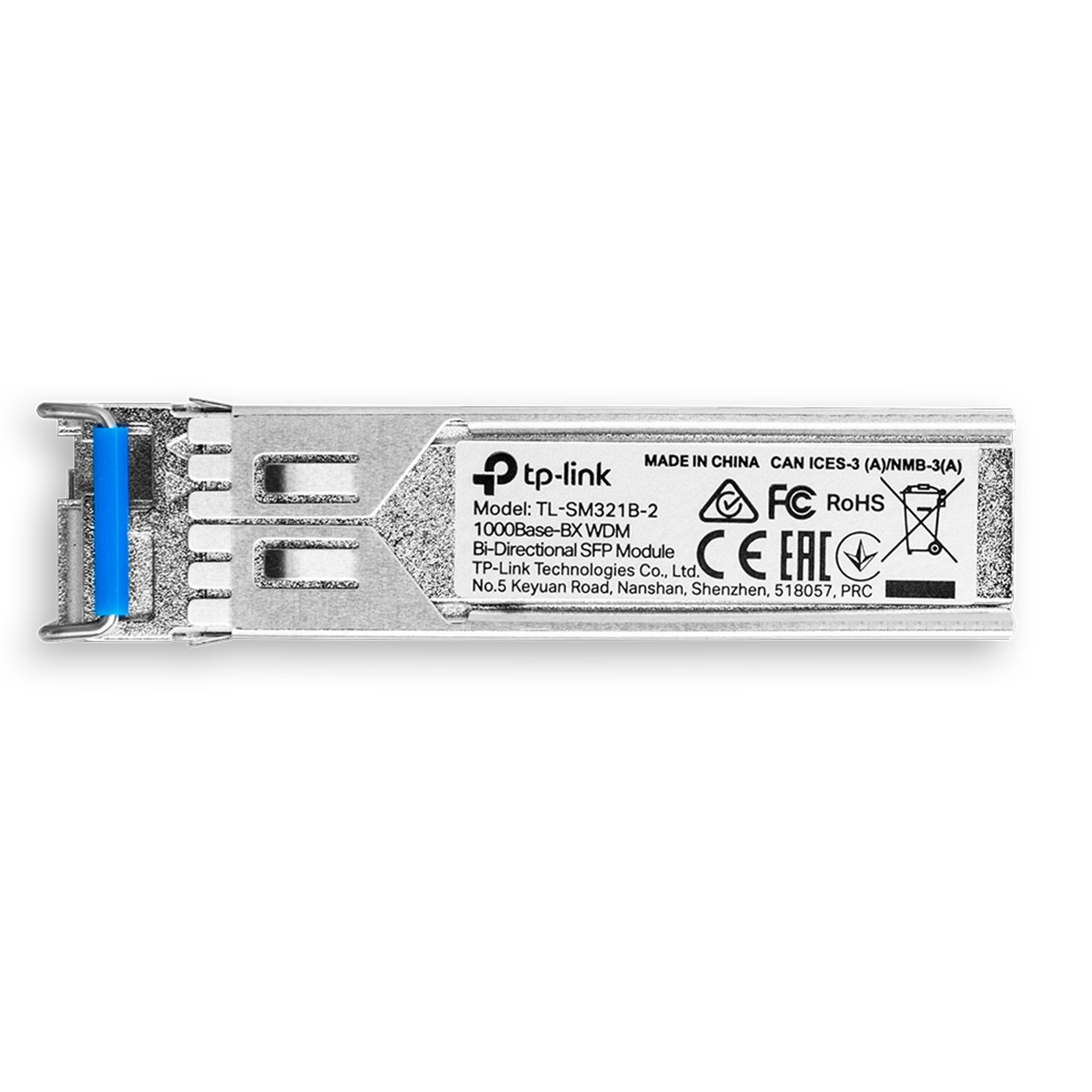

TP-Link Omada SM321B-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1310nm/RX:1550nm, Single-mode, 2km
TP-Link Omada SM321B-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1310nm/RX:1550nm, Single-mode, 2km
- Brand: TP-Link
- MPN: SM321B-2
- Part #: NETTPL03213
- UPC:
- Brand: TP-Link
- MPN: SM321B-2
- Part #: NETTPL03213
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers





TP-Link Omada SM321B-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1310nm/RX:1550nm, Single-mode, 2km
- Brand: TP-Link
- MPN: SM321B-2
- Part #: NETTPL03213

Product URL: https://www.pbtech.co.nz/product/NETTPL03213/TP-Link-Omada-SM321B-2-Gigabit-Single-Mode-WDM-Bi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
TP-LINK´s TL-SM321B-2 and TL-SM321A-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.

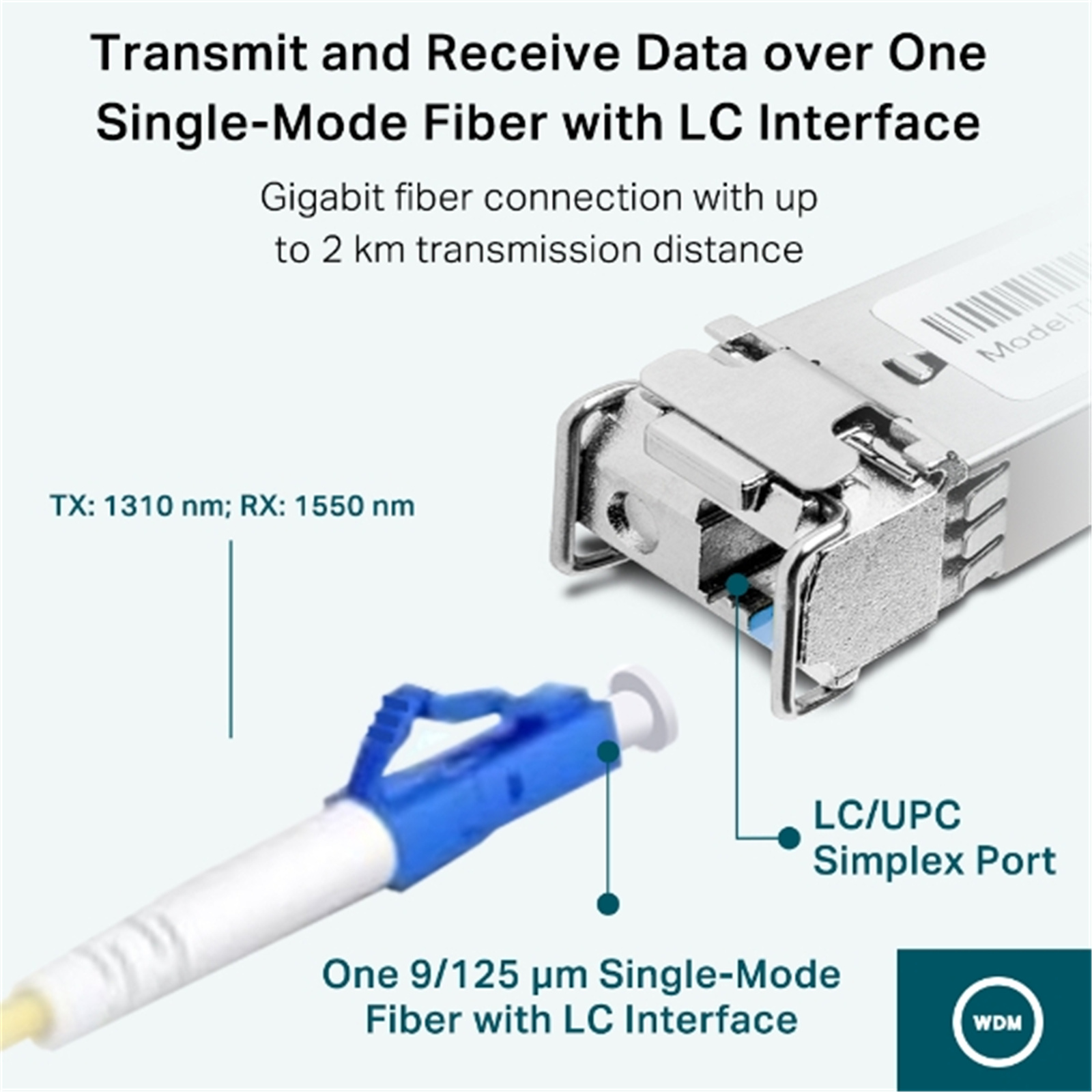

The TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).
Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

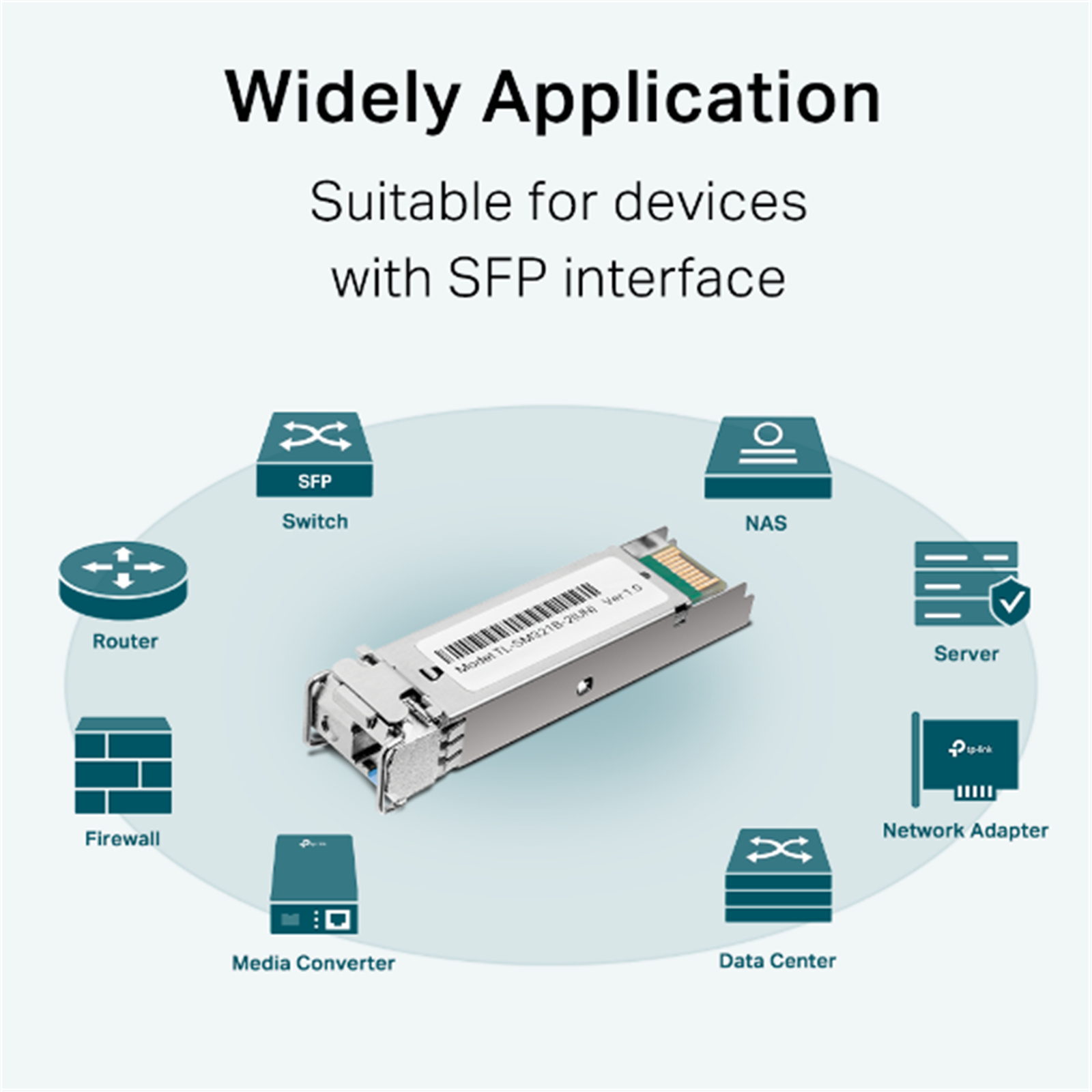

TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
- Designed for on-site gigabit fiber communication
- Up to 2 km transmission distance with 9/125 µm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A-2 as a pair
Specifications
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER & MODULE
Standards and Protocols
IEEE 802.3z, TCP/IP
Wave Length
Tx: 1310 nm
Rx: 1550 nm
Dimensions (W*D*H)
2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply
3.3V
Safety & Emission
FCC, CE
Cable
Single-Mode Fiber
Fiber Type
9/125 µm Single-Mode
Max. Cable Length
2 KM
Data Rate
1.25 Gbps
Port Type
LC Simplex
Environment
Operating Temperature: 0-70 °C (32-158 °F)
Storage Temperature: -40-85 °C ( -40-185 °F)
Operating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-Condensing
