Features

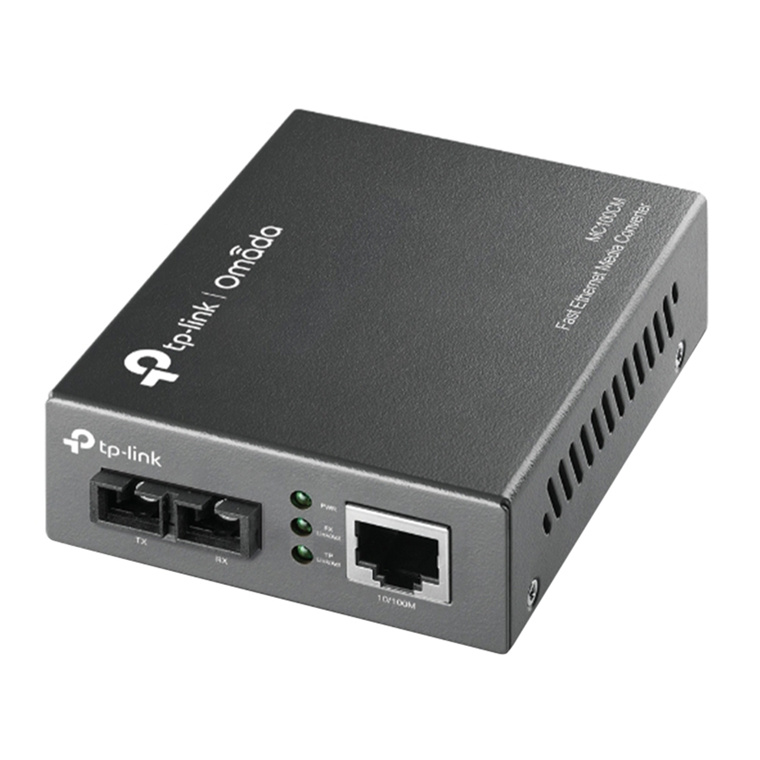

TP-Link Omada MC100CM 10/100Mbps Multi-Mode Media Converter
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 2km
Specifications
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Interface
1 x 100M SC/UPC port
1 x 100M RJ45 port (Auto MDI/MDIX)
Wave Length
1310nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
Network Media 100BASE-FX
Multi-mode Fiber
Dimensions (H x W x D)
3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Power Supply
External power supply
Maximum Power Consumption
2.5W
LED
PWR, FDX/Col, Link/Act, SPD
Security and Emission
FCC, CE, RoHS
Package Contents
Media Converter MC100CM
Power Adapter
Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
