TP-Link FC111A-20 10/100 Mbps WDM Media Converter - Fiber SC - RJ45, Single-mode, Up to 20km
TP-Link FC111A-20 10/100 Mbps WDM Media Converter - Fiber SC - RJ45, Single-mode, Up to 20km
- Brand: TP-Link
- MPN: FC111A-20
- Part #: NETTPL1120
- UPC:
- Brand: TP-Link
- MPN: FC111A-20
- Part #: NETTPL1120
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Media Converters
TP-Link FC111A-20 10/100 Mbps WDM Media Converter - Fiber SC - RJ45, Single-mode, Up to 20km
- Brand: TP-Link
- MPN: FC111A-20
- Part #: NETTPL1120
Product URL: https://www.pbtech.co.nz/product/NETTPL1120/TP-Link-FC111A-20-10100-Mbps-WDM-Media-Converter
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

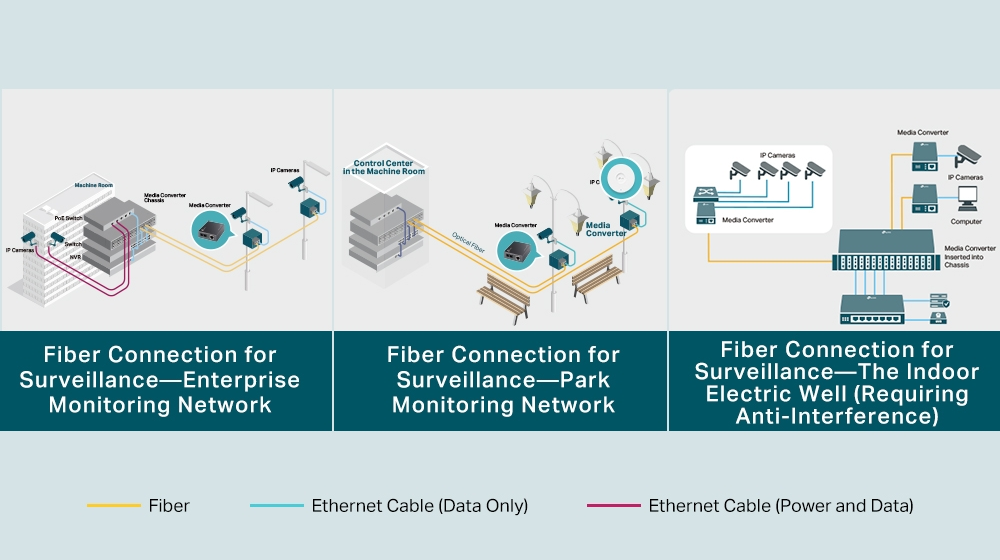

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
How This Product Work

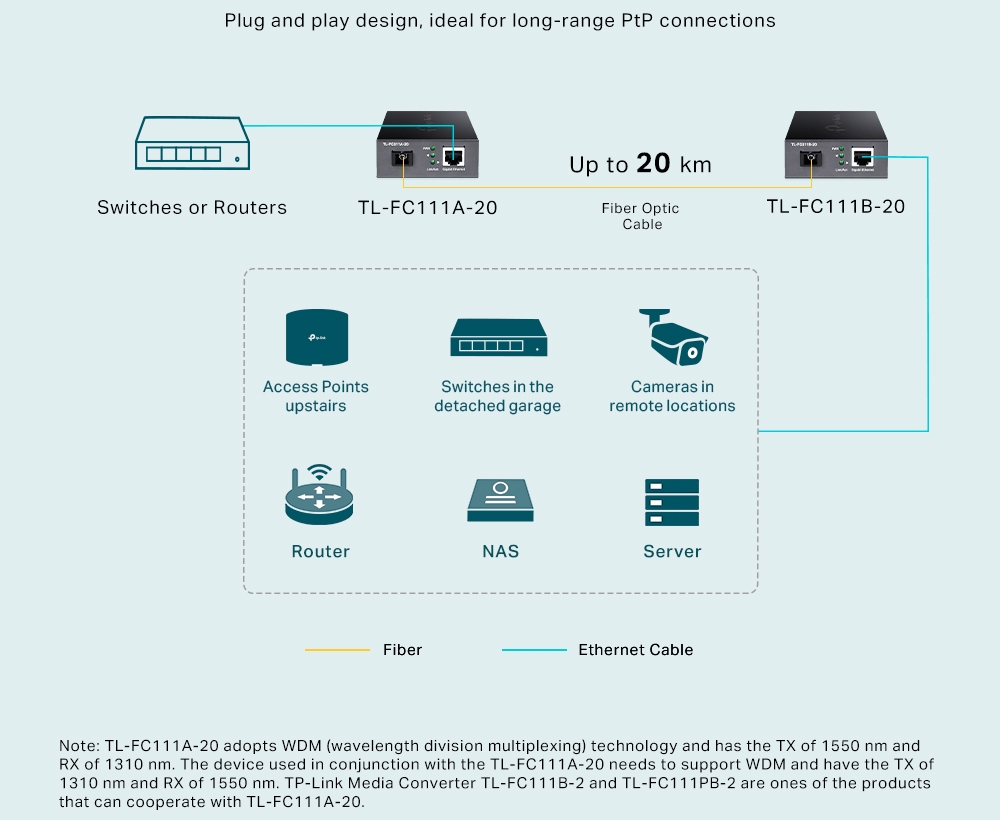

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter TL-FC111B-20 is one of the products that can cooperate with TL-FC111A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Sturdy Metal Casing Ensures Better Reliability

Auto-Negotiation 10/100 Mbps Ports

Convert Fiber to Ethernet or Vice Versa

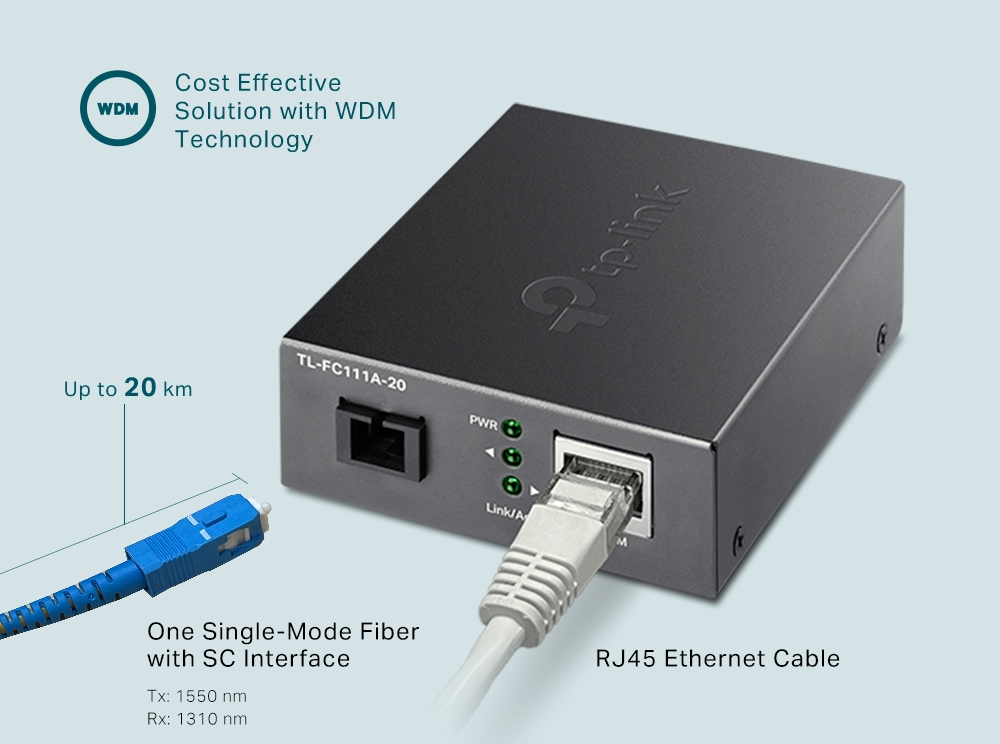

Transmit and Receive Data over One Single-Mode Fiber with SC Interface

10/100 Mbps Media Converter - Ideal for Surveillance Deployment

Specifications
NETWORK
Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature
0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature
-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
HARDWARE FEATURES

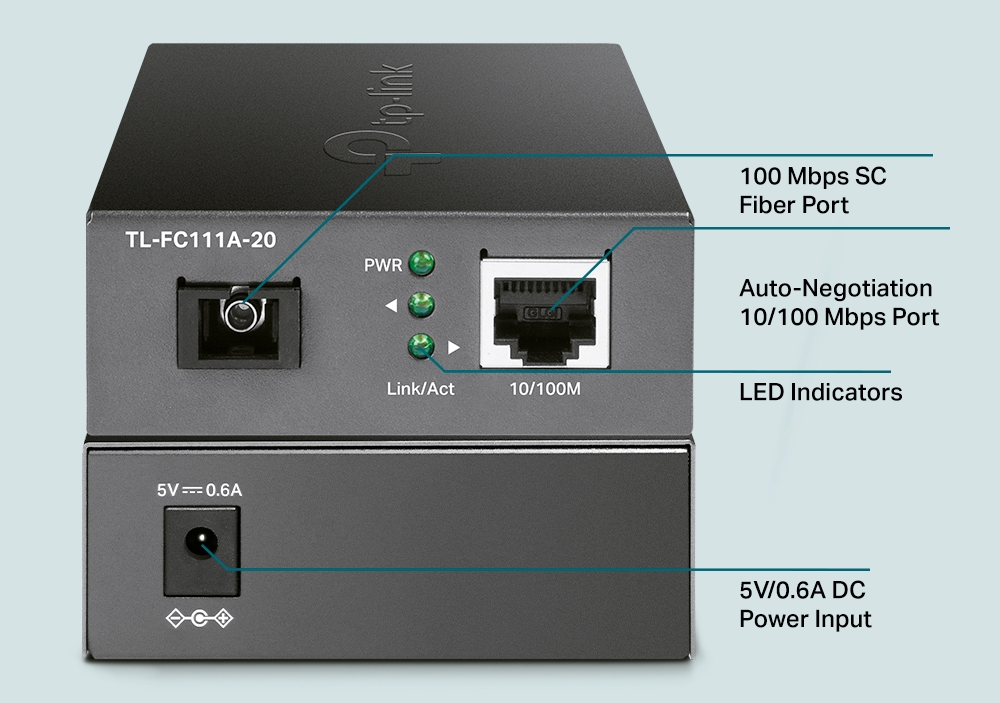

Interface
1x 100 Mbps SC Fiber Port
1x 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply
External Power Adapter: 5 V/0.6 A
LED
PWR, Link/Act
Wave Length
1550 nm TX, 1310 nm RX

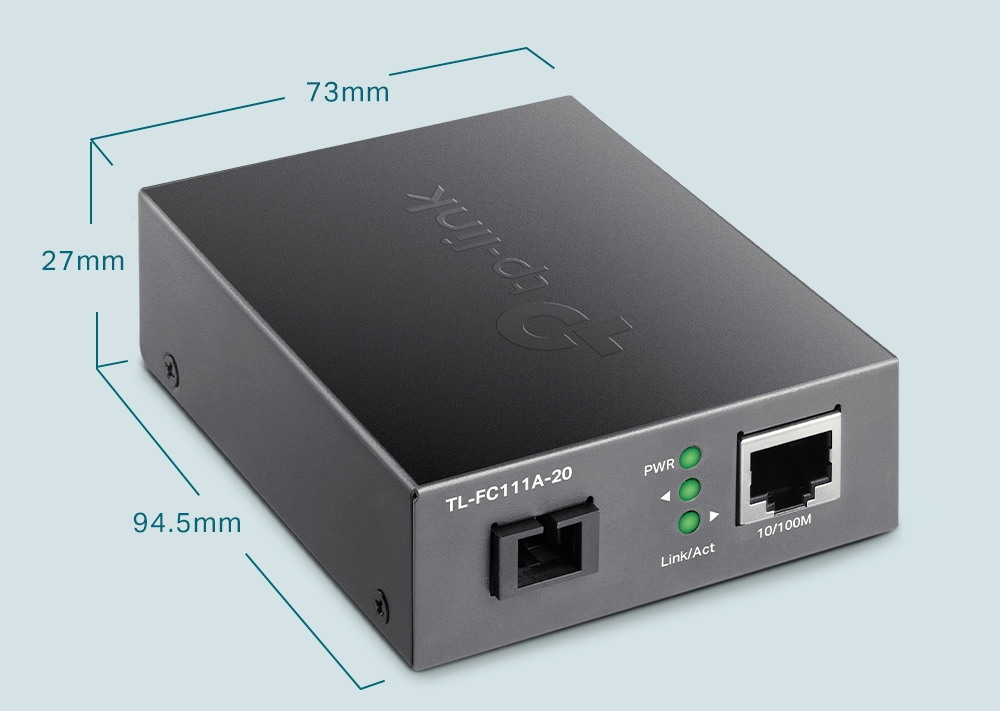

Dimensions (W x D x H)
94.5 x 73 x 27 mm
MEDIA CONVERTER & MODULE
Fiber Type
9/125 μm single-mode fiber (<=20 km)
OTHERS
Package Contents
Media Converter TL-FC111A-20
Power Adapter
Installation Guide
