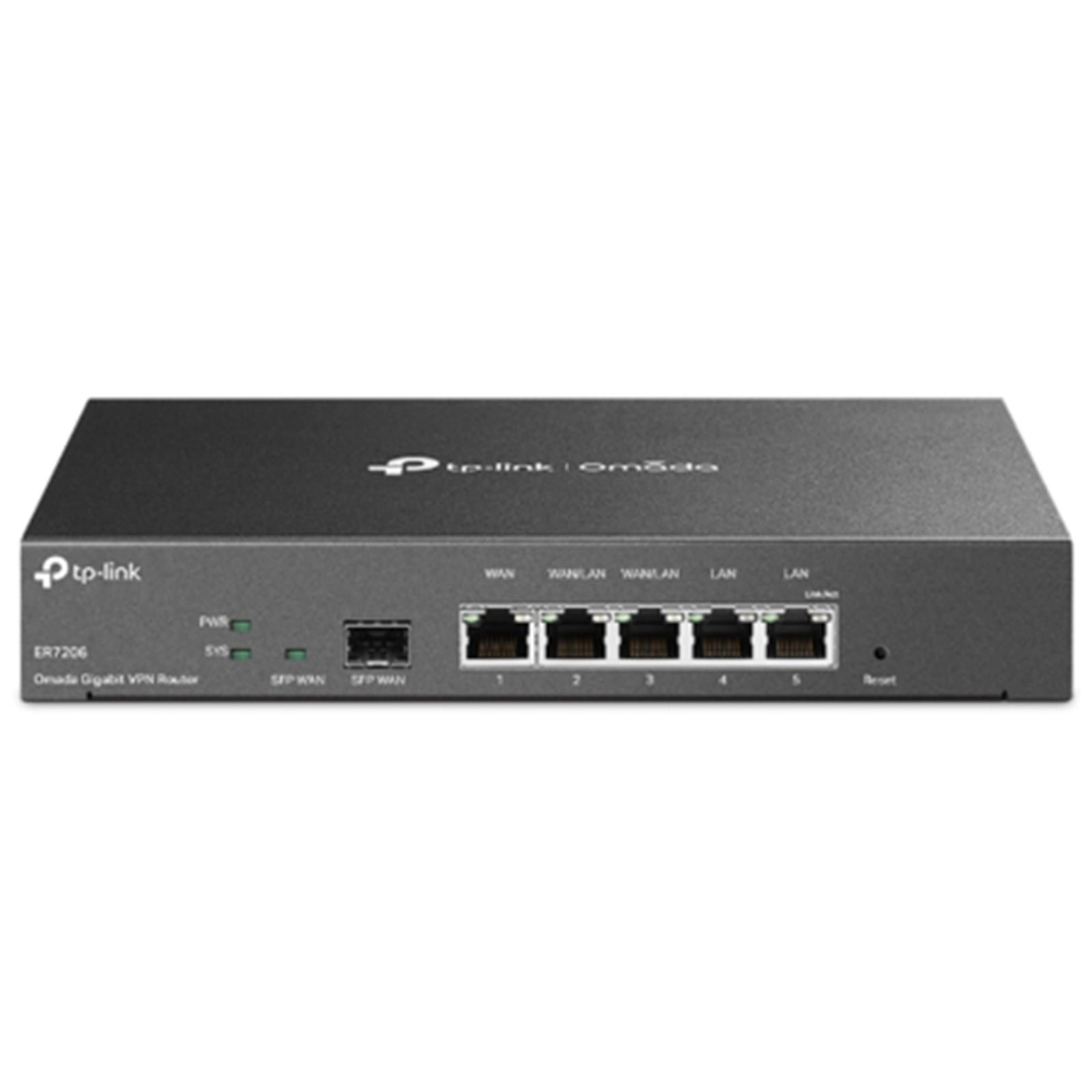

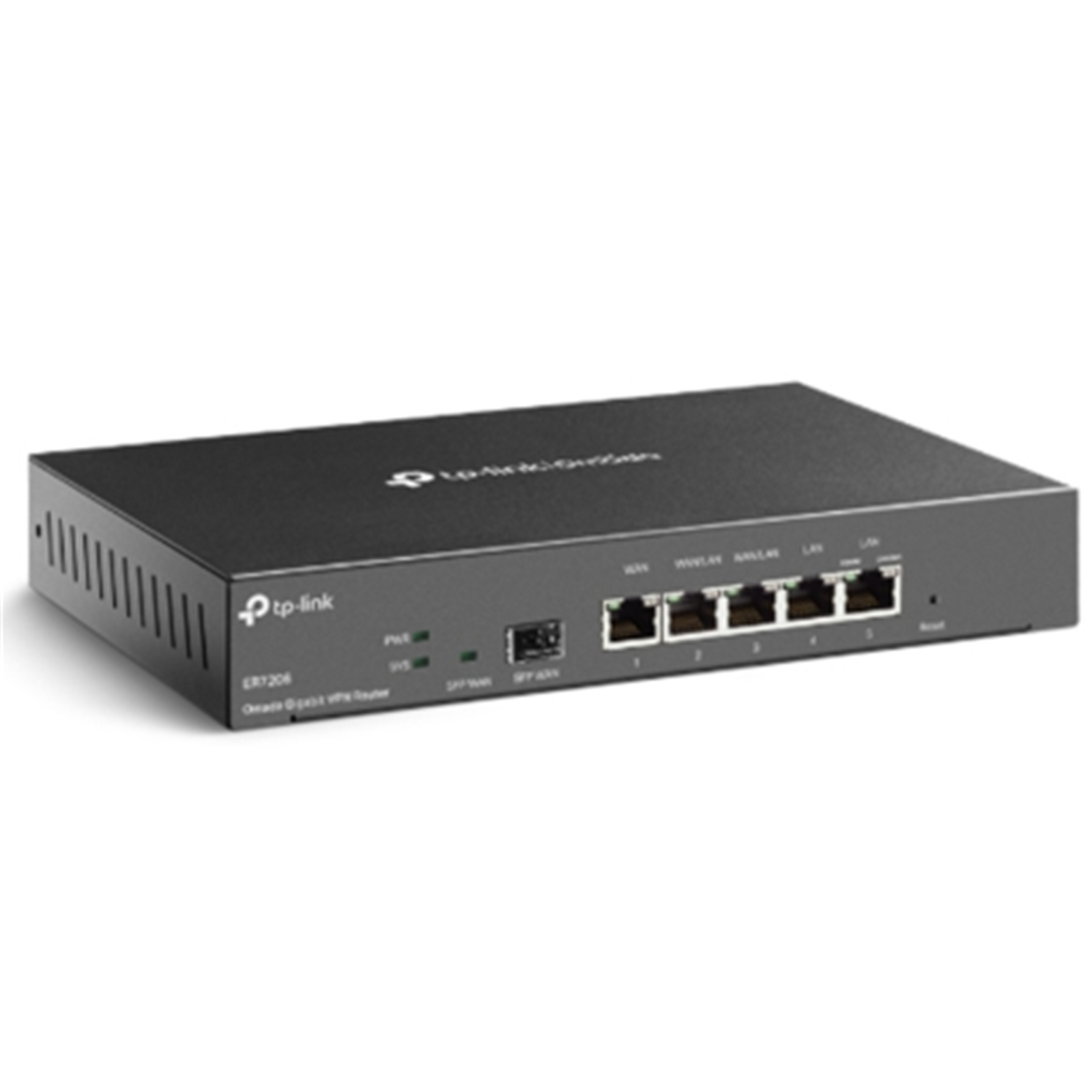

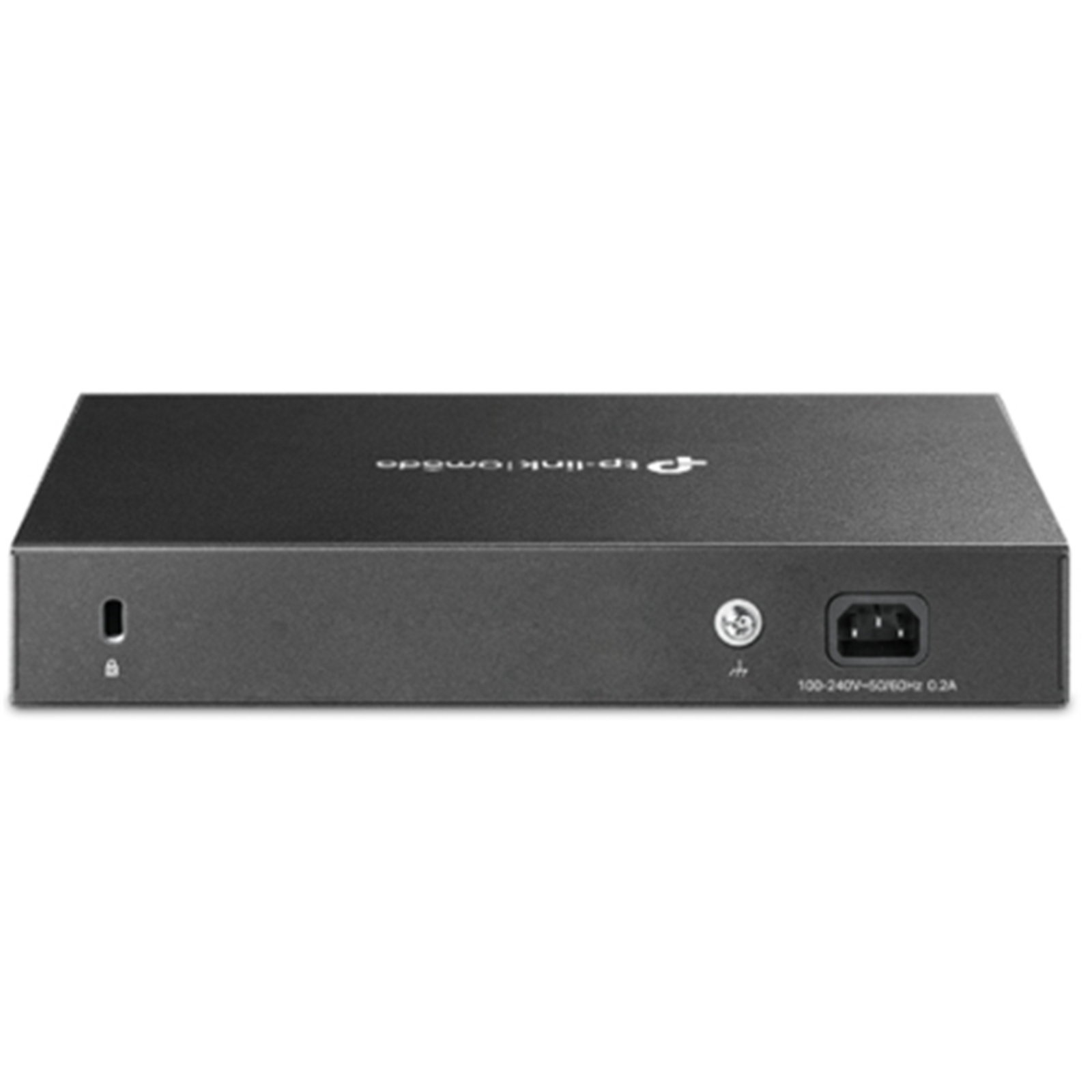

TP-Link Omada ER7206 Gigabit Multi-WAN VPN Gateway

SFP x1 / 1GbE x5 / USB 3.0 x1

PB Tech price
PB Tech price
$ 199 .13
 +GST
$ 229 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

TP-Link Omada ER7206 Gigabit Multi-WAN VPN Gateway

SFP x1 / 1GbE x5 / USB 3.0 x1

  • Brand: TP-Link
  • MPN: ER7206
  • Part #: NETTPL7206
  • UPC:
CLEARANCE
PB Tech price
$ 199 .13 $ 229 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: TP-Link
  • MPN: ER7206
  • Part #: NETTPL7206
  • UPC:

Wireless Technology

N/A

Ethernet Ports Per Unit

5

USB Ports

No

Wireless Transmission Speed

N/A

WiFi Bands

N/A

Cellular Connectivity

N/A

HyperFibre Compatible

No

Coverage Area

N/A

Looking for a bargain? Shop Ex-demo stock for this item

Product is out of stock. View similar products in-stock at PB Tech

Features

ER7206 Omada Gigabit VPN Router - Integrated into Omada SDN

Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Gigabit Ports

1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

Up to 4 WAN Ports

1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.

Highly Secure VPN

Supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN*, 50x L2TP, and 50x PPTP VPN connections.

Abundant Security Features

Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

100-240 V~50/60 Hz

Flash

SPI 4MB + NAND 128MB

DRAM

512MB

LED

PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H )

8.9 × 5.2 × 1.4 in.(226 × 131 × 35 mm)

PERFORMANCE

Concurrent Session

150,000

IPsec VPN Throughput

291.6 Mbps

BASIC FUNCTIONS

WAN Connection Type

Static/Dynamic IP
PPPoE
PPTP
L2TP

MAC Clone

Modify WAN/LAN MAC Address

DHCP

DHCP Server
DHCP Address Reservation
Multi-IP Interfaces*
Multi-Net DHCP*

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

Static Routing
Policy Routing

Bandwidth Control

IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth

Load Balance

Intelligent Load Balance

Application Optimized Routing

Link Backup (Timing, Failover)

Online Detection

NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security

SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management

Session Limit

IP-based Session Limit

SECURITY

Filtering

WEB Group Filtering
URL Filtering
Web Security

ARP Inspection

Sending GARP Packets
ARP Scanning
IP-MAC Binding

Attack Defense

TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support

Management Features

Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)

OTHERS

Certification

CE, FCC, RoHS

Package Contents

ER7206
Power Cord
Quick Installation Guide

Environment

Operating Temperature

0-40 C (32-104 F)

Storage Temperature

-40-70 C (-40-158 F)

Operating Humidity

10-90% RH non-condensing

Storage Humidity

5-90% RH non-condensing

Manufacturer Part No:
ER7206
Brand:
Product Type:
Gigabit Multi-WAN VPN Gateway
UPC
-
Product Family:
Omada
Shipping Weight:
1.4 kg
PB Part No:
NETTPL7206
Product Model:
ER7206
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake
