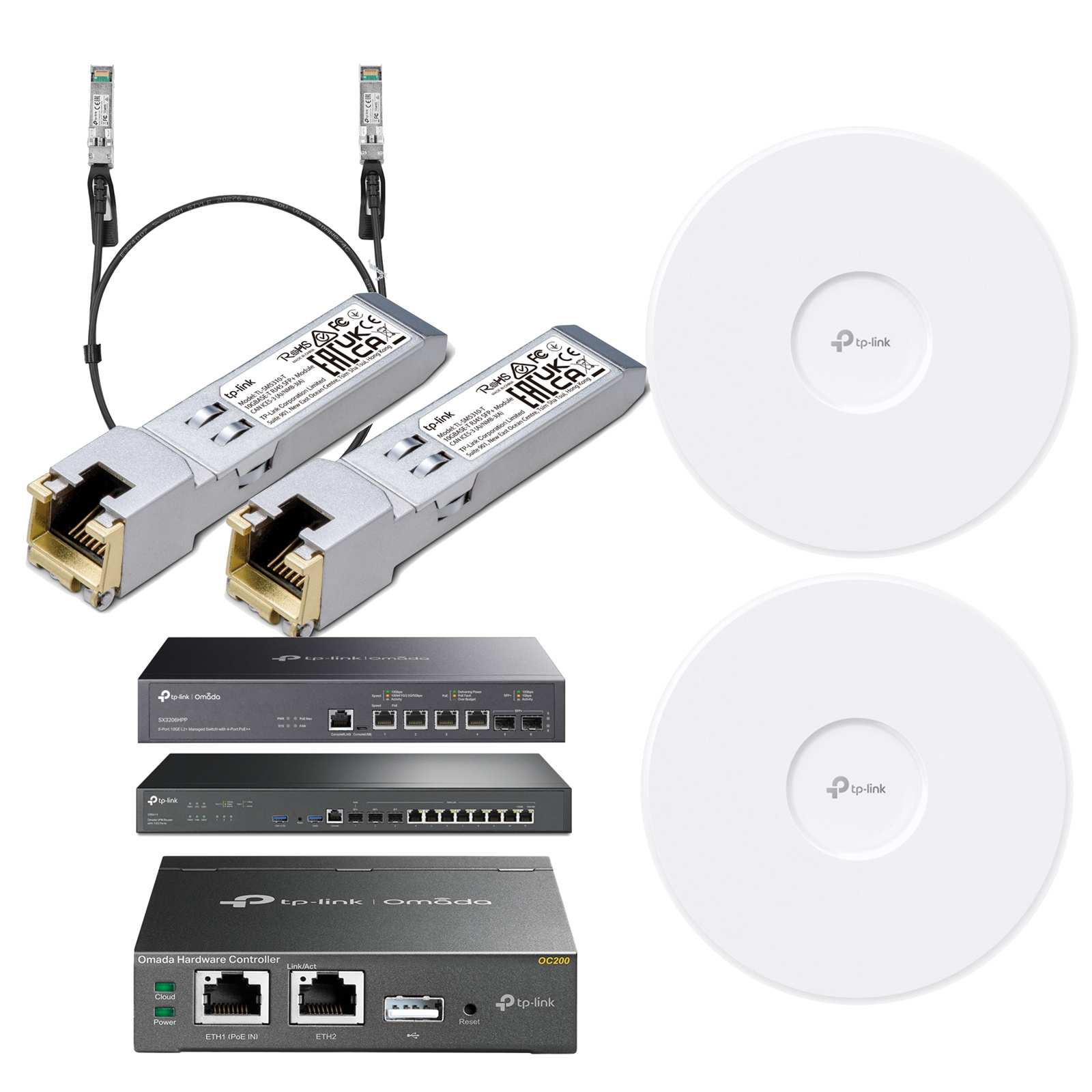

TP-Link Omada Starter Kit for HyperFibre 4000/8000 ER8411 x1 / SX3206HPP x1 /SM5310-T x2/ SM5220-1M x1 /OC200 x1/ EAP773 x2
Out of stock
TP-Link Omada Starter Kit for HyperFibre 4000/8000 ER8411 x1 / SX3206HPP x1 /SM5310-T x2/ SM5220-1M x1 /OC200 x1/ EAP773 x2
- Brand: TP-Link
- MPN: Omada Starter Kit for HyperFibre 4000/8000
- Part #: NETTPL9801
- UPC:
- Brand: TP-Link
- MPN: Omada Starter Kit for HyperFibre 4000/8000
- Part #: NETTPL9801
- UPC:
Features
TP-Link Omada ER8411
High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
Maximise the 10G Broadband with Omada Enterprise Gateway
Maximised 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 - an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network-all controlled from a single interface.

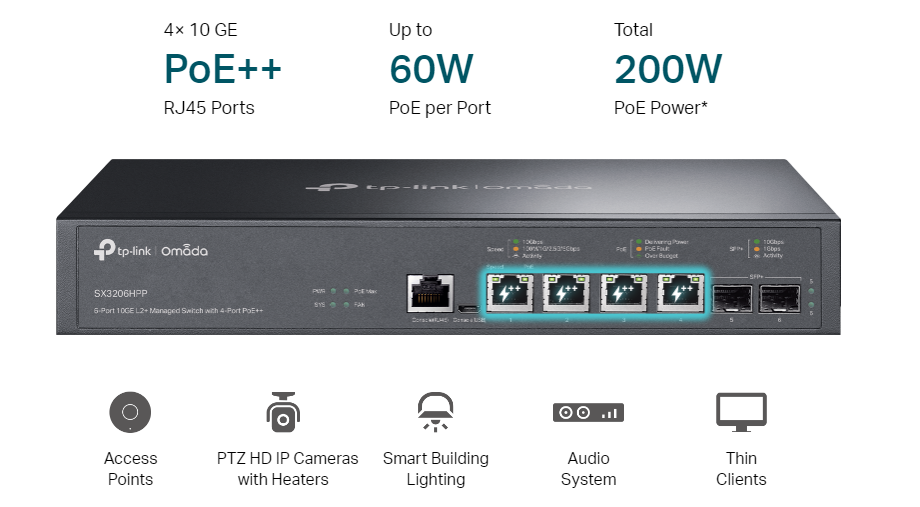

Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
- 4× 10G PoE++ ports with up to 60 W PoE output per port**
- 2× 10G SFP+ slots
- 200 W total PoE budget*
- Centralised cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Desktop / Rack Mounting
Empowering the Real WiFi 6 and WiFi 7 with 10G PoE++ Ports
TL-SM5310-T 10G BASE-T RJ45 SFP+ Module
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Commercial Product Operating Temperature Range: 0-70°C
- Fully Metallic Enclosure for Low EMI
Superior 10G Performance to Convert SFP+ to RJ45
Insert TL-SM5310-T for an easy and quick conversion between SFP+ fiber and 10G Ethernet. It covers up to 30m* for various applications.
Plug and Play
A plug-and-play design makes for easy deployment, no technician needed.
Durable Metal Casing
High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.
High Compatibility
Connect your devices with fewer concerns. Our product is perfectly compatible with various optic fiber equipment from different vendors.**
Check Compatibility List: https://www.tp-link.com/au/tl-sm5310-t/product-list/
*Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.
**Check the compatibility list of TL-SM5310T and enjoy the connection.
***It is recommended to place the modules separated by multiple optical transceivers or empty slots. When used in high-temperature environments, additional cooling must be applied.
TL-SM5220-1M 1 Meter 10G SFP+ Direct Attach Cable
- 10G SFP+ connector on both sides
- Drives 10 Gigabit Ethernet (1m distance)
With a passive twin-ax cable assembly of 1 meter and two SFP+ connectors on each side, TL-SM5220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.
TP-Link Omada OC200 Hardware Controller
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management - Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
Meet Our Hottest Omada Access Points
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
EAP225
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Meet Our Hottest Omada Access Points
EAP225-Wall
EAP773
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.[1]
- 1x 10G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.[2]
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.[2]
- Advanced Functions: Supports centralized management, mesh, and AI roaming.[5]
Ultra-Thin Enterprise WiFi 7 Access Point to Redefine Your Business Network
BE9300 WiFi 7 Speed
Supports up to 9214 Mbps for a bufferless network of your offices or retails.[1]
Next-Gen WiFi 7
Enjoy a smooth network with higher throughput and lower interference.
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.[2]
10G PoE++ Port
Boosts overall throughput and offers flexible deployment with a 10 Gbps PoE++ port.
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralized Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.[5]
Ultra-Thin Design
F220 mm x 32.5 mm elegant design brings more flexibility.
Wi-Fi 7: Swifter, Smoother, Stronger - Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. [2] Making full use of these new resources, the throughout of EAP773 reaches up to 11 Gbps.[1]
Higher Capacity for Increased Traffic Demands
WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6's 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.[2]
Lower Latency for Boosted Network Reliability
EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.[2]
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.
Auto Channel Selection and Power Adjustment
Provide powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.[3]
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface. Experience total control at your fingertips.
- Hardware, Software, or Cloud-Based Controllers
- Centralized Cloud Management
- Intelligent Monitoring
- Zero-Touch Provisioning (ZTP)[3]
Boosted Network Security
Secure Guest Network with up to 24 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Your Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.[5]
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Rogue AP Detection
Detect and mitigate rogue access points to protect your business network from security holes or other threats anywhere, anytime.
Ultra-Thin Design for Flexible Deployment
The overall design of EAP773 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
[2]Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
[3]Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /my/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
[4]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
[5]Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
